Product Details

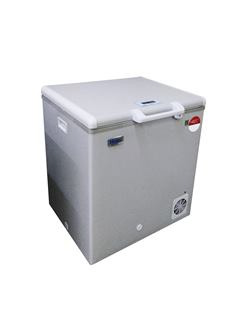

Product name
HTD-40
IMD-PQS Code
E003-086
Status
Prequalified
Date of acceptance
06 Sep 2017
Appliance type
E003
Product description
Solar Direct Drive Waterpacks Freezer
Manufacturer
Qingdao Haier Biomedical Co., Ltd
Manufacturer Reference
HTD-40
Country of Manufacture
China
Address
No.280 Fengyuan Road High-tech Zone
Qingdao
Shandong
China
Qingdao
Shandong
China
Telephone
+86-15066227057
Website address
Valid until
31 May 2026
Specifications
Product specifications - Main
Climate zone
Hot
Hold over time (hours:mn)
120
External dimensions length (mm)
788.00
External dimensions width (mm)
875.00
External dimensions height (mm)
720.00
Performance at" (°C)
43.00
Fuel and refrigeration cycle
Electric - compression
Energy source
Solar direct drive
Lining
Regular
Energy Consumption Cool Down (kWh/24h)
0.4950
Energy Consumption Continuous Power (kWh/24h)
0.4550
Product specifications - Additional Refrigerator
Autonomy (hrs:mn)
120
Refrigerant type
R600a
Solar radiation ref period (kWh/m2/day)
3.50
Product specifications - Additional Freezer
Freezer type
Low energy compression
Freezer's gross volume (Litres)
48.00
Waterpack freezing capacity (Kg/24 hrs)
2.40
Waterpack storage capacity (Litres)
20.00
List of accessories
1.Instructions
2.Key
3.Handle component
4.Defrosting shovel
5.Waterpack holder
6.0.4L Water-pack
2.Key
3.Handle component
4.Defrosting shovel
5.Waterpack holder
6.0.4L Water-pack
List of spare parts, Reference & Price
Included in the UNICEF Supply Division spare parts kit:
1 No. Display - Part No. 0274000357
1 No. Indicator Part - Part No. 0074000574
1 No. Fan Set - Part No.0274000351
1 No. Compressor BD-35 - Part No. 0274000118A
1 No. Compressor controller (E-Box)- Part No. 0274000118FJ
1 No. Thermostat - Part No. 0274000352
1 No. Main Switch - Part No. 0274000354
1 No. USB charging port - Part No. 0274000389
1 No. Dry filter - Part No. 0074180001
1 No. Thermo sensor - Part No. 0274000357A
2 No. Sticker - Part No. 0270501015B
1 No. Capacitor - Part No. 0274000393
Other parts are available as spares on request.
1 No. Display - Part No. 0274000357
1 No. Indicator Part - Part No. 0074000574
1 No. Fan Set - Part No.0274000351
1 No. Compressor BD-35 - Part No. 0274000118A
1 No. Compressor controller (E-Box)- Part No. 0274000118FJ
1 No. Thermostat - Part No. 0274000352
1 No. Main Switch - Part No. 0274000354
1 No. USB charging port - Part No. 0274000389
1 No. Dry filter - Part No. 0074180001
1 No. Thermo sensor - Part No. 0274000357A
2 No. Sticker - Part No. 0270501015B
1 No. Capacitor - Part No. 0274000393
Other parts are available as spares on request.
Price and shipping
Shipping volume (m3)
0.7
Shipping weight (kg)
85.00
Incoterms
FCA
Price 1
USD 2809
Year of base price
2021
Quality standard
Quality Standard
ISO 13485;Other
Quality standard (Other)
ISO 9001:2008; ISO 14001
Specification Reference
Applicable PQS specification: E003/FZ03.1
Applicable PQS VP(s): E003/FZ03-VP.1
Applicable PQS VP(s): E003/FZ03-VP.1
Verification
Verification Laboratory
CHEARI
Address
#29 Xia Jie Street, Xuan Wu district Beijing 100053 R. P. de Chine
China
China
Telephone
+86 1063162443
Email
Verification Report Reference
WB-16-600
Product Sites
Qingdao Haier Biomedical Co., Ltd
No.280 Fengyuan Road High-tech Zone
Qingdao,
Shandong
266109
China
Document Details
2. 2 baskets
3. Power of Solar Panel: 180W x2 Or 360Wx1 Solar Panel power;
4. Optional: Remote temperature monitoring device
Freezer net volume: < 50 L
Freezing capacity range: < 5 kg/24h
Range of holdover time: 101 - 250 hours
Range waterpack storage capacity: 20 - 100
