E003-076e

SF - Immunization Devices
Download file
E003-076e.pdf
E003-076e.json
Product Details
Product name

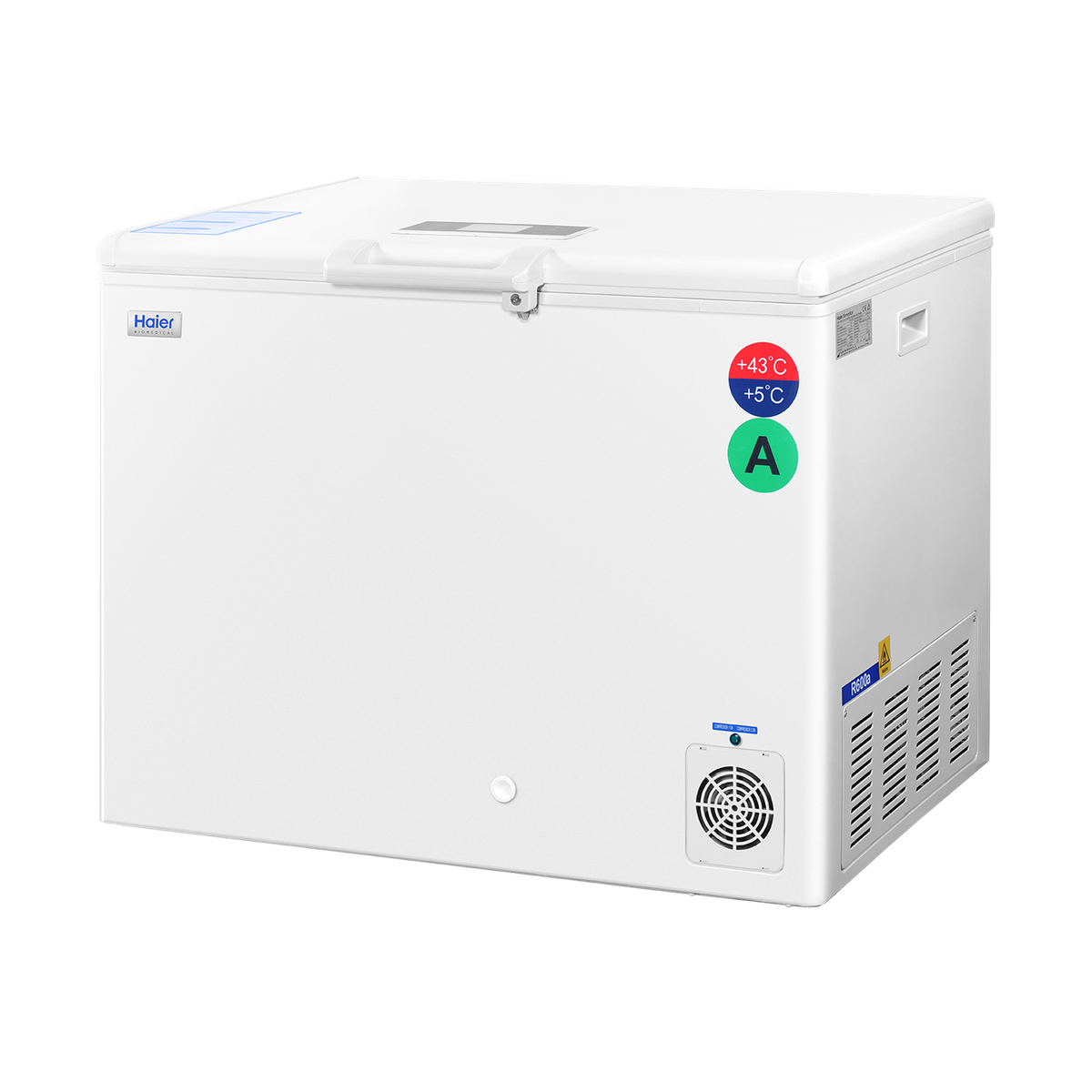

HTC 110 SDD
IMD-PQS Code
E003-076e
Status
Prequalified
Date of acceptance
06 Jun 2016
Appliance type
E003
Product description
Solar direct drive refrigerator EMS Level 3
Manufacturer
Qingdao Haier Biomedical Co., Ltd
Manufacturer Reference
HTC 110 SDD
Country of Manufacture
China
Address
No.280 Fengyuan Road High-tech Zone
Qingdao
Shandong
China
Telephone
+86-15066227057
Email
tianhui.yu@haierbiomedical.com
Website address
http://www.haiermedical.com
Valid until
31 May 2027
Specifications

Product specifications - Main

Climate zone
Hot
Minimum rated ambient temperature (°C)
5.00
Freeze protection
Grade A
Hold over time (hours:mn)
106
External dimensions length (mm)
1128.00
External dimensions width (mm)
875.00
External dimensions height (mm)
720.00
Performance at" (°C)
43.00
Fuel and refrigeration cycle
Electric - compression
Energy source
Solar direct drive
Energy Consumption Continuous Power (kWh/24h)
0.6100

Product specifications - Additional Refrigerator

Refrigerator vaccine storage capacity(L)
59.000
Refrigerator's gross volume (Litres)
110.000
Autonomy (hrs:mn)
96:00
Refrigerant type
R600a
Solar radiation ref period (kWh/m2/day)
3.50

Product specifications - Additional Freezer

Freezer type
N/A
Comments
APPROVED FOR EMS LEVEL 3

Prices include solar system; 24V Solar Panel s, comments:Power of
Solar Panel : Specification ref 180W x 2 or 360W x 1;
1. Display: Solar LED Temperature Display
2. 4 baskets
3. Optional: Remote temperature monitoring device

Range of holdover time: 101 - 250 hours
Range vaccine storage capacity: 25L - 60L
List of accessories
4 baskets; manuals; keys
List of spare parts, Reference & Price
Included in the UNICEF Supply Division spare parts kit:
1 No. Display-0274000357
1 No. Indicator Part-0074000574
1 No. Fan Set Part No.0274000351
1 No. Compressor BD-35K?0274000118A?
1 No. Compressor controller (E-Box) Part-0274000118FJ
1 No. Thermostat-0274000352
1 No. Main Switch-0274000354
1 No. USB charging port-0274000389
1 No. Dry filter Part-0074180001
1 No. Thermo sensor-0274000353
1 No. Thermo sensor-0274000358
2 No. Sticker-0270501015A

Price and shipping

Shipping volume (m3)
0.98
Shipping weight (kg)
105.00
Incoterms
FCA
Price 1
USD 3010
Year of base price
2021

Quality standard

Quality Standard
ISO 13485;Other
Quality standard (Other)
ISO 9001:2008;ISO 14001
Specification Reference
Applicable PQS specification: E003/RF05.3
Applicable PQS VP(s): E003/RF05-VP.3

Verification

Verification Laboratory
CHEARI
Address
#29 Xia Jie Street, Xuan Wu district Beijing 100053 R. P. de Chine
China
Telephone
+86 1063162443
Email
gongcx@cheari.com
Verification Report Reference
WB-16-152
Product Sites
Qingdao Haier Biomedical Co., Ltd
No.280 Fengyuan Road High-tech Zone
Qingdao,
Shandong
266109
China
