Product Details
Product name
HTC 40 SDD
IMD-PQS Code
E003-075e
Status
Prequalified
Date of acceptance
06 Jun 2016
Appliance type
E003
Product description

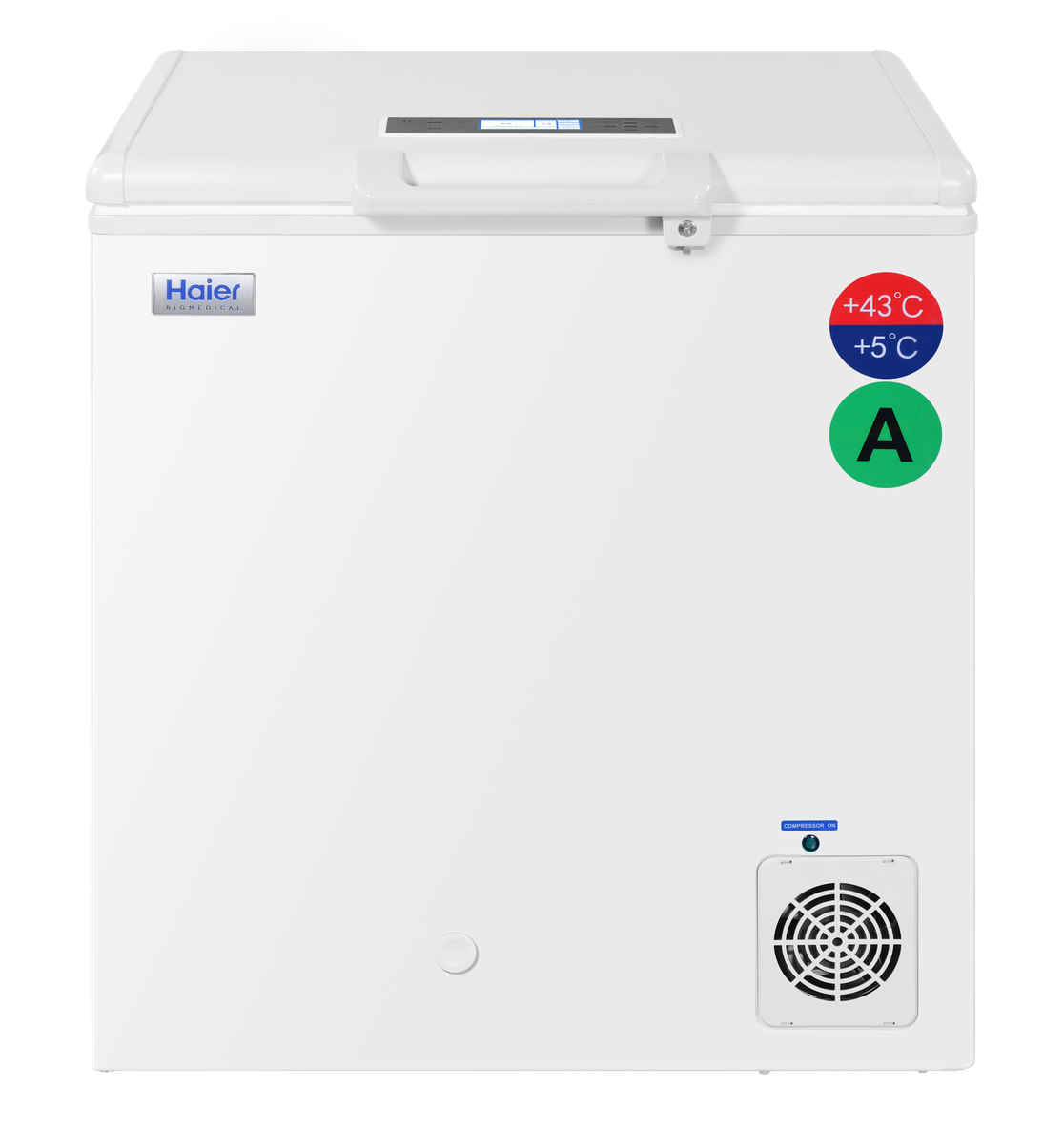

Solar direct drive refrigerator E003-075e
Manufacturer
Qingdao Haier Biomedical Co., Ltd
Manufacturer Reference
HTC 40 SDD
Country of Manufacture
China
Address
No.280 Fengyuan Road High-tech Zone
Qingdao
Shandong
China
Qingdao
Shandong
China
Telephone
+86-15066227057
Website address
Valid until
31 May 2027
Specifications
Product specifications - Main
Climate zone
Hot
Minimum rated ambient temperature (°C)
5.00
Freeze protection
Grade A
Hold over time (hours:mn)
122
External dimensions length (mm)
788.00
External dimensions width (mm)
875.00
External dimensions height (mm)
720.00
Performance at" (°C)
43.00
Fuel and refrigeration cycle
Electric - compression
Energy source
Solar direct drive
Energy Consumption Continuous Power (kWh/24h)
0.7100
Product specifications - Additional Refrigerator
Refrigerator vaccine storage capacity(L)
22.500
Refrigerator's gross volume (Litres)
40.000
Autonomy (hrs:mn)
117
Refrigerant type
R600a
Solar radiation ref period (kWh/m2/day)
3.50
Product specifications - Additional Freezer
Freezer type
N/A
List of accessories
2 baskets; manuals; keys
List of spare parts, Reference & Price
Included in the UNICEF Supply Division spare parts kit:
1 No. Display - Part No. 0274000357
1 No. Indicator - Part No. 0074000574
1 No. Fan Set - Part No.0274000351
1 No. Compressor BD-35K - Part No. 0274000118A
1 No. Compressor controller (E-Box) - Part No.0274000118FJ
1 No. Thermostat - Part No. 0274000352
1 No. Main Switch - Part No. 0274000354
1 No. USB charging port - Part No. 0274000389
1 No. Dry filter Part - Part No. 0074180001
1 No. Thermo sensor - Part No. 0274000353
1 No. Thermo sensor - Part No. 0274000358
2 No. Sticker - Part No. 0270501015A
Other parts are available as spares on request.
1 No. Display - Part No. 0274000357
1 No. Indicator - Part No. 0074000574
1 No. Fan Set - Part No.0274000351
1 No. Compressor BD-35K - Part No. 0274000118A
1 No. Compressor controller (E-Box) - Part No.0274000118FJ
1 No. Thermostat - Part No. 0274000352
1 No. Main Switch - Part No. 0274000354
1 No. USB charging port - Part No. 0274000389
1 No. Dry filter Part - Part No. 0074180001
1 No. Thermo sensor - Part No. 0274000353
1 No. Thermo sensor - Part No. 0274000358
2 No. Sticker - Part No. 0270501015A
Other parts are available as spares on request.
Price and shipping
Shipping volume (m3)
0.7
Shipping weight (kg)
82.00
Incoterms
FCA
Price 1
USD 2588
Year of base price
2016
Quality standard
Quality Standard
ISO 13485;Other
Quality standard (Other)
ISO 9001:2008;ISO 14001
Specification Reference
Applicable PQS specification: E003/RF05.3
Applicable PQS VP(s): E003/RF05-VP.3
Applicable PQS VP(s): E003/RF05-VP.3
Verification
Verification Laboratory
CHEARI
Address
#29 Xia Jie Street, Xuan Wu district Beijing 100053 R. P. de Chine
China
China
Telephone
+86 1063162443
Email
Verification Report Reference
WB-16-151
Product Sites
Qingdao Haier Biomedical Co., Ltd
No.280 Fengyuan Road High-tech Zone
Qingdao,
Shandong
266109
China
Document Details
Prices include solar system; 24V solar Panel; 180W x2 Or
360Wx1 Solar Panel
power1. Display: Solar LED Temperature Display
2. 2 baskets
3. Optional: Remote temperature monitoring device
Range of holdover time: 101 - 250 hours
Range vaccine storage capacity: Less than 25L
