Product Details
Product name

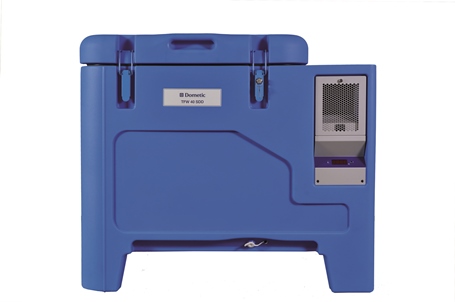

TFW 40 SDD
IMD-PQS Code
E003-073
Status
Prequalified
Date of acceptance
26 May 2016
Appliance type
E003
Product description
Solar Direct Drive Waterpacks Freezer
Manufacturer
B Medical Systems Sarl
Manufacturer Reference
TFW 40 SDD
Country of Manufacture
Luxembourg
Address
17 Op der Hei
Hosingen
Luxemburg
Luxembourg
Hosingen
Luxemburg
Luxembourg
Telephone
+ 35 2 92 07 311
Email
Website address
Valid until
31 May 2026
Specifications
Product specifications - Main
Climate zone
Hot
External dimensions length (mm)
780.00
External dimensions width (mm)
1030.00
External dimensions height (mm)
900.00
Appliance tested at (°C)
43.00
Performance at" (°C)
43.00
Fuel and refrigeration cycle
Electric - compression
Energy source
Solar direct drive
Energy Consumption During Freezing (kWh/24h)
0.6400
Energy Consumption Cool Down (kWh/24h)
0.5900
Energy Consumption Continuous Power (kWh/24h)
0.5900
Product specifications - Additional Refrigerator
Autonomy (hrs:mn)
5
Refrigerant type
R600a
Solar radiation ref period (kWh/m2/day)
3.50
Product specifications - Additional Freezer
Freezer type
Rapid water-pack freezer
Freezer's gross volume (Litres)
64.00
Waterpack freezing capacity (Kg/24 hrs)
2.16
Waterpack storage capacity (Litres)
11.24
List of accessories
8 waterpacks 0.6 L; 8 waterpacks holders; 2 keys; 1 brush; 2 spacers; documentation, lockable lid, 1 compass
List of spare parts, Reference & Price
Included in the UNICEF Supply Division spare parts kit:
1 No. Compressor (BD35K Solar) - Part No.296.9702.09
1 No. E-box BD35K Solar - Part No. 296.9705.32
1 No. Electronic thermostat/controller - Part No.296.9769.92
1 No. Fan (12V, 4.3W) - Part No.292.9960.13
1 No. Cold Chain Controller Display Board - Part No. 296.9769.91
Other parts are available as spares on request.
1 No. Compressor (BD35K Solar) - Part No.296.9702.09
1 No. E-box BD35K Solar - Part No. 296.9705.32
1 No. Electronic thermostat/controller - Part No.296.9769.92
1 No. Fan (12V, 4.3W) - Part No.292.9960.13
1 No. Cold Chain Controller Display Board - Part No. 296.9769.91
Other parts are available as spares on request.
Price and shipping
Shipping volume (m3)
0.88
Shipping weight (kg)
119.00
Incoterms
EXW
Price 1
> 100 units: G1:5281 €; G2: 5620 €
Year of base price
2025
Quality standard
Quality Standard
ISO 13485;Other
Quality standard (Other)
ISO 9001:2015; ISO 14001:2015
Specification Reference
Applicable PQS specification: E003/RF05.3
Applicable PQS VP(s): E003/RF05-VP.3
Applicable PQS VP(s): E003/RF05-VP.3
Verification
Verification Laboratory
CEMAFROID SAS
Address
5 Avenue des Pres CS 20029 F94 266 Fresnes Cedex France
France
France
Telephone
+33 1 49 84 84 84
Verification Report Reference
WHO-15036 corr 1
Product Sites
B Medical Systems Sarl
17 Op der Hei
Hosingen,
Luxemburg
L-9809
Luxembourg
Document Details
Energy sources: nominal 12 V DC solar electric array. Minimum power 250 watts at solar radiation reference period 3.5 kWh/m2/day
Freezer net volume: 50 - 110 L
Range freezing capacity: < 5 kg/24h
Range waterpack storage capacity: 20 - 100L
Waterpack storage capacity: 11.24 kg (20
Waterpacks)
