Product Details
Product name
VC225ILR
IMD-PQS Code
E003-072
Status
Prequalified
Date of acceptance
25 May 2016
Appliance type
E003
Product description

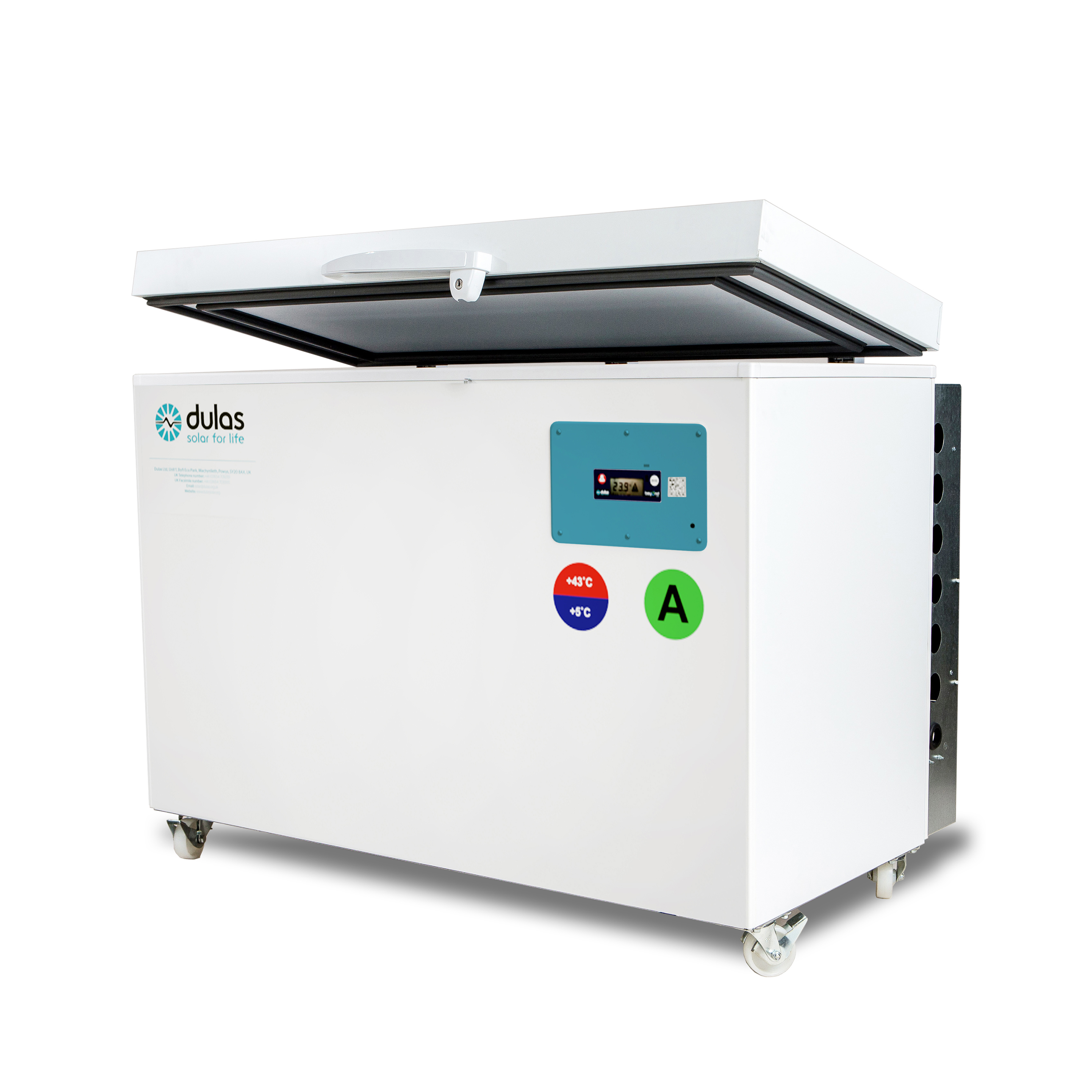

Icelined refrigerator
Manufacturer
Dulas Ltd
Manufacturer Reference
VC225ILR
Country of Manufacture
United Kingdom
Address
Unit 6, Beeding Close, Southern Cross Trading Estate, PO22 9TS, Bognor Regis
Bognor Regis
West Sussex
United Kingdom of Great Britain and Northern Ireland
Bognor Regis
West Sussex
United Kingdom of Great Britain and Northern Ireland
Telephone
+44 (0)7833 297920
Website address
Valid until
31 Dec 2025
Specifications
Product specifications - Main
Climate zone
Hot
Minimum rated ambient temperature (°C)
5.00
Freeze protection
Grade A
Hold over time (hours:mn)
94:00
External dimensions length (mm)
750.00
External dimensions width (mm)
1280.00
External dimensions height (mm)
980.00
Appliance tested at (°C)
43.00
Performance at" (°C)
43.00
Fuel and refrigeration cycle
Electric - compression
Energy source
Electric Mains 220-240V 50/60Hz or Electric Mains 115/60Hz optional
Lining
PCM
Energy Consumption Intermittent Power (kWh/24h)
0.6530
Energy Consumption Cool Down (kWh/24h)
0.7640
Energy Consumption Continuous Power (kWh/24h)
0.8030
Product specifications - Additional Refrigerator
Refrigerator vaccine storage capacity(L)
184.000
Refrigerator's gross volume (Litres)
203.000
Refrigerant type
R600a
List of accessories
Supplied with 6 x refrigerator baskets, 2 x keys for the lockable handle, 1 x set of printed manuals (‘user’s manual’, ‘installation and technician’s manual’) available in a selection of languages.
Price includes PS-ILR-002XT A.C. to D.C. voltage regulator and power supply (WHO PQS extended range), cables and fixings.
Price also includes Berlinger Fridge-tag 2 E 30-day electronic temperature logger (E006/040) and complete solar system including all cables and connections necessary for installation in the field.
Price includes PS-ILR-002XT A.C. to D.C. voltage regulator and power supply (WHO PQS extended range), cables and fixings.
Price also includes Berlinger Fridge-tag 2 E 30-day electronic temperature logger (E006/040) and complete solar system including all cables and connections necessary for installation in the field.
List of spare parts, Reference & Price
Included in the UNICEF Supply Division spare parts kit:
1 x Dulas ILR controller (for single compressor) – Part No. 5522
1 x Lightning protection board – Part No. 5542
1 x Temperature probe (set of 2) – Part No’s. SN4B15P1 & SN4B20P1
1 x Compressor controller – Part No. 101N0420
1 x MCB fridge – Part No. 693-CBTWF060C0
1 x Compressor BD35K – Part No. 101Z0211
Prices and other parts are available as spares on request
1 x Dulas ILR controller (for single compressor) – Part No. 5522
1 x Lightning protection board – Part No. 5542
1 x Temperature probe (set of 2) – Part No’s. SN4B15P1 & SN4B20P1
1 x Compressor controller – Part No. 101N0420
1 x MCB fridge – Part No. 693-CBTWF060C0
1 x Compressor BD35K – Part No. 101Z0211
Prices and other parts are available as spares on request
Price and shipping
Shipping volume (m3)
1.33
Shipping weight (kg)
194.00
Incoterms
EXW
Price 1
€4,575 EUR per unit including voltage stabilizer
Year of base price
2025
Quality standard
Quality Standard
Other
Quality standard (Other)
ISO 9001:2015; ISO 14000:2015
Specification Reference
Applicable PQS specification: E003/RF03.2
Applicable PQS VP(s): E003/RF03-VP.2
Applicable PQS VP(s): E003/RF03-VP.2
Verification
Verification Laboratory
Danish Technological Institute
Address
Gregersensvej DK-2630 Taastrup Danemark
Denmark
Denmark
Telephone
+45 72202472
Verification Report Reference
300-KLAB-16-110
Product Sites
Dulas Ltd
Unit 6, Beeding Close, Southern Cross Trading Estate,
Bognor Regis,
West Sussex
PO22 9TS
United Kingdom of Great Britain and Northern Ireland
Document Details
Beyond RTMD integrated as standard with display, audible and visual alarm indicators, 120-day local data storage and scannable QR code for instant 30-day PDF reports.
Optional remote temperature monitoring subscription service available via cellular network which provides real-time monitoring and reporting of cold chain assets in one easy-to-use cloud-based portal.
Shipping weights and volumes are shown for refrigerator only.
