Product Details
Product name

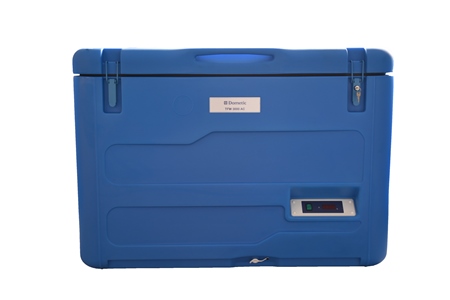

TFW 3000 AC
IMD-PQS Code
E003-071
Status
Prequalified
Date of acceptance
25 May 2016
Appliance type
E003
Product description
Waterpacks freezer
Manufacturer
B Medical Systems Sarl
Manufacturer Reference
TFW 3000 AC
Country of Manufacture
Luxembourg
Address
17 Op der Hei
Hosingen
Luxemburg
Luxembourg
Hosingen
Luxemburg
Luxembourg
Telephone
+ 35 2 92 07 311
Email
Website address
Valid until
31 May 2026
Specifications
Product specifications - Main
Climate zone
Hot
External dimensions length (mm)
780.00
External dimensions width (mm)
1270.00
External dimensions height (mm)
910.00
Appliance tested at (°C)
43.00
Performance at" (°C)
43.00
Fuel and refrigeration cycle
Electric - compression
Energy source
220-240V 50/60Hz or 110-127/60Hz optional
Lining
Regular
Energy Consumption Cool Down (kWh/24h)
2.2000
Energy Consumption Continuous Power (kWh/24h)
2.1500
Product specifications - Additional Refrigerator
Refrigerant type
R290
Solar radiation ref period (kWh/m2/day)
1.00
Product specifications - Additional Freezer
Freezer type
Rapid water-pack freezer
Freezer's gross volume (Litres)
204.00
Waterpack freezing capacity (Kg/24 hrs)
32.00
Waterpack storage capacity (Litres)
97.20
List of accessories
6 baskets; 54 waterpacks 0.6 L; 2 keys; 1 brush; 2 spacers, documentation
List of spare parts, Reference & Price
Included in the UNICEF Supply Division spare parts kit:
1 No. Compressor (FFU130UAX 220-240V/50-60HZ) - Part No. 296.9701.72
1 No. Controller board - Part No.296.9769.95
1 No. Sensor - Part No. 296.9804.78
1 No. Condenser fan (230/240V NET3T16ZVN001) - Part No. 296.9759.17
1 No. Start device - Part No. 296.9706.80
1 No. Start capacitor
1 NNo. Cold Chain Controller Display Board - Part No. 296.9769.91
1 No. Cover for Compressor - Part No. 296.9706.82
1 No. Motor Protection - Part No. 296.9706.81
Other parts are available as spares on request. .
1 No. Compressor (FFU130UAX 220-240V/50-60HZ) - Part No. 296.9701.72
1 No. Controller board - Part No.296.9769.95
1 No. Sensor - Part No. 296.9804.78
1 No. Condenser fan (230/240V NET3T16ZVN001) - Part No. 296.9759.17
1 No. Start device - Part No. 296.9706.80
1 No. Start capacitor
1 NNo. Cold Chain Controller Display Board - Part No. 296.9769.91
1 No. Cover for Compressor - Part No. 296.9706.82
1 No. Motor Protection - Part No. 296.9706.81
Other parts are available as spares on request. .
Price and shipping
Shipping volume (m3)
1.07
Shipping weight (kg)
126.00
Incoterms
EXW
Price 1
> 100 units: 3394 €
Year of base price
2025
Quality standard
Quality Standard
ISO 13485;Other
Quality standard (Other)
ISO 9001:2015; ISO 14001:2015
Specification Reference
Applicable PQS specification: E003/FZ01.2
Applicable PQS VP(s): E003/FZ01-VP.2
Applicable PQS VP(s): E003/FZ01-VP.2
Verification
Verification Laboratory
CEMAFROID SAS
Address
5 Avenue des Pres CS 20029 F94 266 Fresnes Cedex France
France
France
Telephone
+33 1 49 84 84 84
Verification Report Reference
WHO 16-001
Product Sites
B Medical Systems Sarl
17 Op der Hei
Hosingen,
Luxemburg
L-9809
Luxembourg
Document Details
Freezer net volume: 110 - 220 L
Freezing capacity range: > 15 kg/24h
Range waterpack storage capacity: 101 - 200
Waterpack freezing capacity: 54 x 0.6L
Waterpack storage capacity: 162 x 0.6 L
