Product Details
Product name
DW-25W147
IMD-PQS Code
E003-060
Status
Prequalified
Date of acceptance
11 Feb 2015
Appliance type
E003
Product description

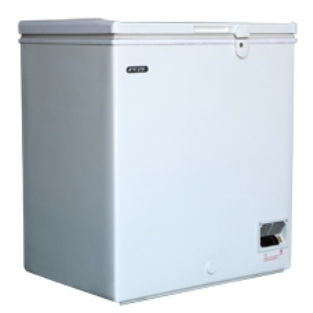

Vaccine/waterpack freezer
Manufacturer
Qingdao Aucma Global Medical Co.,Ltd.
Manufacturer Reference
DW-25W147
Country of Manufacture
China
Address
315 Qianwangang Road, Economic &Technological Development Zone,
Qingdao
Shandong
China
Qingdao
Shandong
China
Telephone
+86 532 86763602
Email
Website address
Valid until
31 May 2026
Specifications
Product specifications - Main
Climate zone
Hot
Minimum rated ambient temperature (°C)
5.00
Hold over time (hours:mn)
6:44
External dimensions length (mm)
880.00
External dimensions width (mm)
595.00
External dimensions height (mm)
790.00
Performance at" (°C)
43.00
Fuel and refrigeration cycle
Electric - compression
Energy source
Electric Mains 220-240V 50/60Hz
Lining
Regular
Energy Consumption Cool Down (kWh/24h)
2.8100
Energy Consumption Continuous Power (kWh/24h)
3.3100
Product specifications - Additional Refrigerator
Refrigerator vaccine storage capacity(L)
96.000
Refrigerant type
R600a
Product specifications - Additional Freezer
Freezer type
Rapid water-pack freezer
Freezer's gross volume (Litres)
147.00
Waterpack freezing capacity (Kg/24 hrs)
14.50
Waterpack storage capacity (Litres)
19.40
List of accessories
0
List of spare parts, Reference & Price
Included in the UNICEF Supply Division spare parts kit:
1 No. Compressor
1 No. Electronic thermostat
1 No. Fan
Other parts are available as spares on request.
1 No. Compressor
1 No. Electronic thermostat
1 No. Fan
Other parts are available as spares on request.
Price and shipping
Shipping volume (m3)
0.41
Shipping weight (kg)
45.00
Incoterms
EXW
Price 1
1-99 units, USD 450
Price 2
100-199 units, USD 430
Year of base price
2016
Quality standard
Quality Standard
Other
Quality standard (Other)
ISO 9001:2008
Specification Reference
Applicable PQS specification: E003/FZ01.2 Applicable PQS VP(s): E003/FZ01-VP.2
Verification
Verification Laboratory
CHEARI
Address
#29 Xia Jie Street, Xuan Wu district Beijing 100053 R. P. de Chine
China
China
Telephone
+86 1063162443
Email
Verification Report Reference
WB-14-039
Product Sites
Qingdao Aucma Global Medical Co.,Ltd.
315 Qianwangang Road, Economic &Technological Development Zone,
Qingdao,
Shandong
266510
China
Document Details
Freezing capacity range: 5 - 15 kg/24h
Range of holdover time: 6 - 25 hours
Range vaccine storage capacity: 90L - 150L
Range waterpack storage capacity: < 20
