Product Details

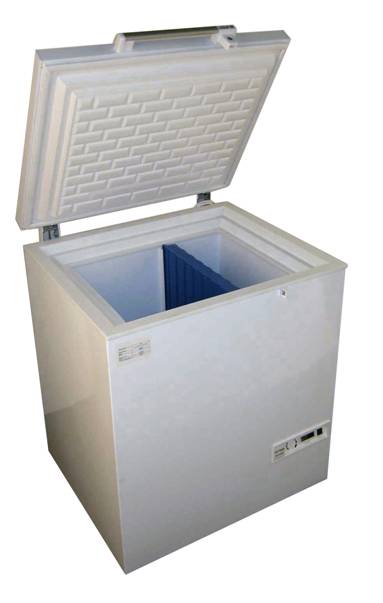

Product name
MF 114
IMD-PQS Code
E003-024
Status
Prequalified
Date of acceptance
12 Jan 2011
Appliance type
E003
Product description
Vaccine/Waterpacks freezer
Manufacturer
Vestfrost Solutions
Manufacturer Reference
MF 114
Country of Manufacture
Denmark
Address
A/S Vestfrost Falkevej 12
Esbjerg Ø
Syddanmark
Denmark
Esbjerg Ø
Syddanmark
Denmark
Telephone
+45 7914 2527
Website address
Valid until
31 May 2026
Specifications
Product specifications - Main
Climate zone
Hot
Hold over time (hours:mn)
2:48
External dimensions length (mm)
700.00
External dimensions width (mm)
720.00
External dimensions height (mm)
840.00
Appliance tested at (°C)
43.00
Performance at" (°C)
43.00
Fuel and refrigeration cycle
Electric - compression
Energy source
Electric Mains 220-240V 50/60Hz or Electric Mains 115/60Hz optional
Lining
Regular
Energy Consumption During Freezing (kWh/24h)
3.3300
Energy Consumption Cool Down (kWh/24h)
2.4100
Energy Consumption Continuous Power (kWh/24h)
2.2400
Product specifications - Additional Refrigerator
Refrigerant type
R600a
Solar radiation ref period (kWh/m2/day)
1.00
Product specifications - Additional Freezer
Freezer type
Low energy compression
Freezer net volume
50-110
Freezer's gross volume (Litres)
105.00
Waterpack freezing capacity (Kg/24 hrs)
7.20
Waterpack storage capacity (Litres)
38.40
List of accessories
External electronic 30 day TMD FT2 Type 2, 1 Basket, Locking lid + 2 key. Manual in 6 languages.
Plywook packing
Plywook packing
List of spare parts, Reference & Price
Included in the UNICEF Supply Division spare parts kit:
1 No. Compressor - HXK80AT Complete - Part No.8-036510018
1 No. Thermostat, freezer - Part No.7095610
1 No. Voltage stabiliser controller 110-285V 50Hz- Part No.7020475
1 No. Thermometer, solar - Part No.7020164
Other parts are available as spares on request..
1 No. Compressor - HXK80AT Complete - Part No.8-036510018
1 No. Thermostat, freezer - Part No.7095610
1 No. Voltage stabiliser controller 110-285V 50Hz- Part No.7020475
1 No. Thermometer, solar - Part No.7020164
Other parts are available as spares on request..
Price and shipping
Shipping volume (m3)
0.58
Shipping weight (kg)
70.00
Incoterms
FCA
Price 1
1-99 units: 541 €
Price 2
100-199 units: 422 €
Year of base price
2016
Quality standard
Quality Standard
Other
Quality standard (Other)
ISO 9001:2008;ISO 14001;DS/OHSAS 18001:2008
Specification Reference
Applicable PQS specification: E003/FZ02.2
Applicable PQS VP(s): E003/FZ02-VP.2
Applicable PQS VP(s): E003/FZ02-VP.2
Verification
Verification Report Reference
A66542-1
Product Sites
Vestfrost Solutions
A/S Vestfrost Falkevej 12
Esbjerg Ø,
Syddanmark
DK-6705
Denmark
Document Details
APP, containing various installation/service features.
Electrical components positioned in corrosion free metal junction box, protecting for water, dust intrusion, and eases service/maintenance.
For easy customization to local standard plug, supplied with appliance power in-let + appliance power plug/cable.
Supplied with adjustable legs, elevating appliance to protect against water/rubbish etc.
MF 114 imodel is supplied with internal voltage stabilizer for extended input range, incl. high, low, spike and surge protection in line with E007/VS01-VP.5
For 220-240V/50/60Hz, input voltage regulation range 110-278V/50/60Hz
For 100-127V/50/60Hz, input voltage regulation range 82-159V/50/60Hz
Freezing capacity range: 5 - 15 kg/24h
Range of holdover time: 2 - 5 hours
Range waterpack storage capacity: 20 - 100
Waterpack storage capacity: 64 x 0.6 L
