SF - Immunization Devices
Download file
Product Details
Product name
Viessmann
IMD-PQS Code
E001-005
Status
Prequalified
Date of acceptance
05 Jun 2019
Appliance type
E001
Product description

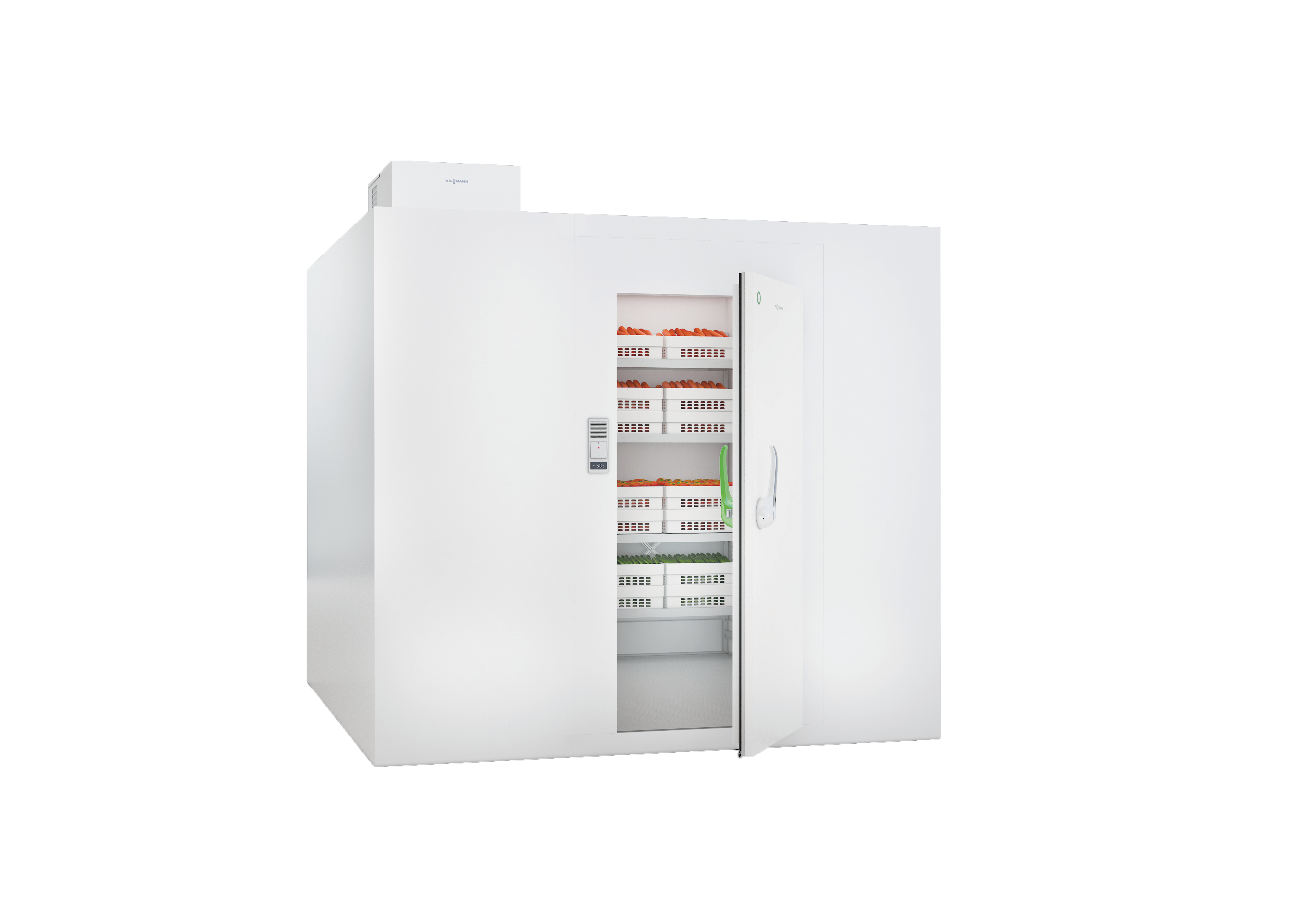

Cold rooms and Freezer rooms
Manufacturer
Viessmann Kuhlsysteme GmbH
Manufacturer Reference
Viessmann
Country of Manufacture
Germany
Address
Dr.-Vießmann-Straße 1, 95030 Hof/Saale, Germany
Germany
Germany
Telephone
+49 151 746 568 74
Email
Website address
Valid until
31 May 2026
Specifications
Product specifications - Main
Temperature Zones
Multizone
Pre-qualified regions
All regions
Auto defrost
Yes
Enclosure construction options
Cold room sizes available (largest, m3)
10.00
Freezer room sizes available (L, m3)
10.00
Door frame heating available
Yes
Panel insulation material
Polyurethane
Panel jointing system
Cam-lock jointing
Shelving system
Adjustable shelves only
Shelving material
Steel only
Shared wall construction
Yes
Strip curtain available
Yes
Pressure release valve (FR only)
Yes
Floor panel heater mat (FR only)
Yes
Wall/Celling Panel Finish
Polyester-Epoxid coated steel
Floor panel finish
Stainless steel with anti-slip finish
Type of Foaming Agent
Penthane
Product specifications - Equipment options
Refrigerant
R134a, R407A, R452A, R290, R513a, R449
Refrigeration unit types
Monoblock;Split type
Lighting system
Tungsten
Duty sharing
Timed changeover
Cold climate protection CR
Yes
Evaporator plume guard CR
Yes
ISO 9001/13485 certified
Other
ISO 9001/13485 certified (Other)
ISO 9001;IEC 60335-1
Electric Safety Compliant To IEC 60335-1
Yes
High/low voltage protection
Yes
Voltage,Frequency,Phasing options?
Yes
Voltage Regulator Available?
No
Surge Protection Available?
Yes
Cut-out system
Yes
Product specifications - Temperature monitoring & alarm options
Temperature recording system
Dial thermometer
Alarm system
Yes
ISO 14001 certified
Yes
Comments
Freezer room sizes: >10 m3
Warranty, installation and maintainence
Warranty period (months)
12.00
Maintenance service
Advisory service
Installation service
Advisory service
Quality standard
Specification Reference
Applicable PQS specification: E001/CR-FR01.4
Applicable PQS VP(s): E001/CR-FR01-VP
Applicable PQS VP(s): E001/CR-FR01-VP
Product Sites
Viessmann Kuhlsysteme GmbH
Dr.-Vießmann-Straße 1, 95030 Hof/Saale, Germany
Germany
