SF - Immunization Devices
Download file
Product Details
Product name
Cold Rooms & Freezer Rooms
IMD-PQS Code
E001-004
Status
Prequalified
Date of acceptance
26 May 2015
Appliance type
E001
Product description
Cold Rooms & Freezer Rooms
Manufacturer
FOSTER Refrigerator
Manufacturer Reference
Cold Rooms & Freezer Rooms
Country of Manufacture
United Kingdom
Address
Plant 3 Rollesby Road PE344LS Kings Lynn Norfolk
United Kingdom of Great Britain and Northern Ireland
United Kingdom of Great Britain and Northern Ireland
Telephone
+44 1553 780501
Website address
Valid until
31 May 2026
Specifications
Product specifications - Main
Temperature Zones
Multizone
Temperature Zones (Other)
Testing
Holdover time CR
Not tested
Holdover time FR
Not tested
Pre-qualified regions
All regions
Auto defrost
Yes
Enclosure construction options
Cold room sizes available (largest, m3)
40.00
Cold room sizes available (smallest, m3)
10.00
Freezer room sizes available (S,m3)
40.00
Freezer room sizes available (L, m3)
10.00
Door frame heating available
Yes
Panel insulation material
High density CFC free polyurethane
Panel jointing system
Cam locks at regular interval with factory cut corners
Shelving system
Fixed shelves only
Shelving material
Steel only
Shared wall construction
Yes
Strip curtain available
Yes
Pressure release valve (FR only)
Yes
Floor panel heater mat (FR only)
Yes
Wall/Celling Panel Finish
White foodsafe laminate on galvanised steel substrate
Floor panel finish
Rigidised galvanised steel
Type of Foaming Agent
High density polyurethane
Product specifications - Equipment options
Refrigerant
R290, A21, R449, R452
Refrigeration unit types
Monoblock;Split type
Lighting system
Tungsten
Duty sharing
Timed changeover;Manual changeover
Cold climate protection CR
Yes
Evaporator plume guard CR
Yes
ISO 9001/13485 certified
Other
ISO 9001/13485 certified (Other)
ISO 9001;IEC 60335-1
Electric Safety Compliant To IEC 60335-1
Yes
High/low voltage protection
Yes
Voltage,Frequency,Phasing options?
Yes
Voltage Regulator Available?
Yes
Surge Protection Available?
Yes
Cut-out system
Yes
Product specifications - Temperature monitoring & alarm options
Temperature recording system
Dial thermometer;Event logger
Alarm system
Yes
ISO 14001 certified
Yes
Warranty, installation and maintainence
Warranty period (months)
12.00
Maintenance service
Advisory service;Maintenance network
Installation service
Advisory service;Installer network
Quality standard
Specification Reference
Applicable PQS specification: E001/RF01.3
Applicable PQS VP(s): E001/RF01-VP1.3
Applicable PQS VP(s): E001/RF01-VP1.3
Product Sites
FOSTER Refrigerator
Plant 3 Rollesby Road PE344LS Kings Lynn Norfolk
United Kingdom of Great Britain and Northern Ireland
Document Details

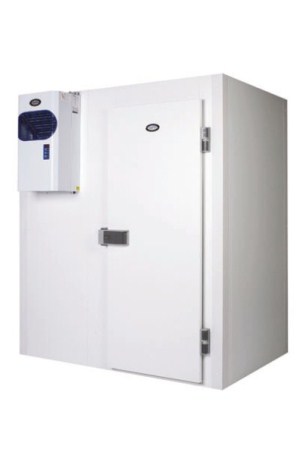

Cold rooms and freezer rooms are available either with mono-block or split refrigeration systems.
