SF - Immunization Devices
Download file
Product Details
Product name

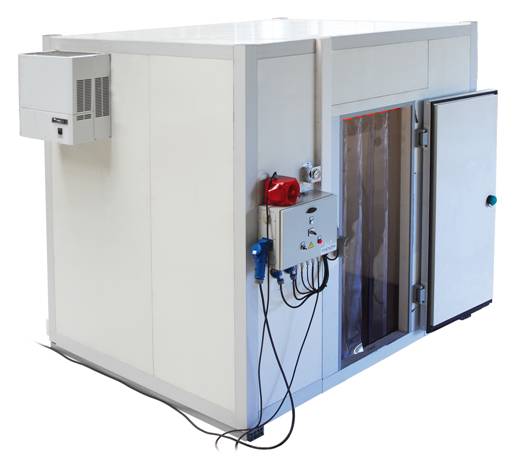

refrigerator or freezer walk-in rooms 10 to 40m3
IMD-PQS Code
E001-002
Status
Prequalified
Date of acceptance
20 Apr 2011
Appliance type
E001
Product description
Cold rooms and freezer rooms
Manufacturer
SN Zhendre
Manufacturer Reference
refrigerator or freezer walk-in rooms 10 to 40m3
Country of Manufacture
France
Address
122 Avenue des Pyrénées 33140 Villenave d’Ornon France
France
France
Telephone
+33(0)6 79 02 13 95
Website address
Valid until
31 May 2026
Specifications
Product specifications - Main
Temperature Zones
Multizone
Holdover time CR
Not tested
Holdover time FR
Not tested
Pre-qualified regions
All regions
Auto defrost
Yes
Enclosure construction options
Cold room sizes available (largest, m3)
10.00
Freezer room sizes available (L, m3)
10.00
Door frame heating available
Yes
Panel insulation material
Polyurethane high density
Panel jointing system
cam-lock, 2 polyethylene joints onto the 4 edges of each panel
Shelving system
Adjustable shelves only
Shelving material
Plastic & Steel
Shared wall construction
---
Strip curtain available
Yes
Pressure release valve (FR only)
Yes
Floor panel heater mat (FR only)
No
Wall/Celling Panel Finish
Galvanized steel 5/10 Iceberg white powedered-coated
Floor panel finish
Phenolic resin
Type of Foaming Agent
Polyurethane high density
Product specifications - Equipment options
Refrigerant
R455A
Refrigeration unit types
Monoblock;Split type
Lighting system
Tungsten
Duty sharing
Manual changeover
Cold climate protection CR
Yes
Evaporator plume guard CR
Yes
ISO 9001/13485 certified
Other
ISO 9001/13485 certified (Other)
ISO 9001;IEC 60335-1
Electric Safety Compliant To IEC 60335-1
Yes
High/low voltage protection
Yes
Voltage,Frequency,Phasing options?
Yes
Voltage Regulator Available?
Yes
Surge Protection Available?
Yes
Cut-out system
Yes
Product specifications - Temperature monitoring & alarm options
Temperature recording system
Dial thermometer
Alarm system
Yes
ISO 14001 certified
Yes
Warranty, installation and maintainence
Warranty period (months)
12.00
Maintenance service
Advisory service;Maintenance network
Installation service
Advisory service;Installer network
Quality standard
Specification Reference
Applicable PQS specification:
Applicable PQS VP(s):
Applicable PQS VP(s):
Product Sites
SN Zhendre
122 Avenue des Pyrénées 33140 Villenave d’Ornon France
France
Document Details
Shelving material: anodized aluminium frame / polyethylene shelves
