SF - Immunization Devices
Download file
Product Details
Product name

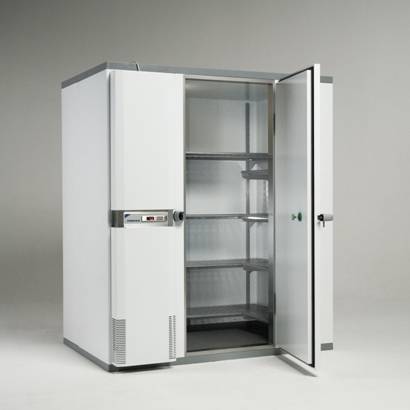

Cold rooms and Freezer rooms
IMD-PQS Code
E001-001
Status
Prequalified
Date of acceptance
17 Aug 2010
Appliance type
E001
Product description
Cold rooms and Freezer rooms
Manufacturer
Porkka Finland Oy
Manufacturer Reference
Cold rooms and Freezer rooms
Country of Manufacture
Finland
Address
Ravitie 3, FI-15860 Hollola FI-33470 Ylöjärvi Finland
Finland
Finland
Telephone
+358 10 2019200
Website address
Valid until
31 May 2026
Specifications
Product specifications - Main
Temperature Zones
Multizone
Pre-qualified regions
All regions
Auto defrost
Yes
Enclosure construction options
Cold room sizes available (largest, m3)
10.00
Freezer room sizes available (L, m3)
10.00
Door frame heating available
Yes
Panel insulation material
Polyurethane high density
Panel jointing system
Cam-lock jointing
Shelving system
Adjustable shelves only
Shelving material
Plastic only
Shared wall construction
Yes
Strip curtain available
Yes
Pressure release valve (FR only)
Yes
Floor panel heater mat (FR only)
Yes
Wall/Celling Panel Finish
Polyester coated steel
Floor panel finish
Glassfiber re-enforced anti-slip plywood
Type of Foaming Agent
N-Penthane
Product specifications - Equipment options
Refrigerant
R455A
Refrigeration unit types
Monoblock;Split type
Lighting system
Tungsten
Duty sharing
Timed changeover;Manual changeover
Cold climate protection CR
Yes
Evaporator plume guard CR
Yes
ISO 9001/13485 certified
Other
ISO 9001/13485 certified (Other)
ISO 9001;ISO 13485;IEC 60335-1
Electric Safety Compliant To IEC 60335-1
Yes
High/low voltage protection
Yes
Voltage,Frequency,Phasing options?
Yes
Voltage Regulator Available?
Yes
Surge Protection Available?
Yes
Cut-out system
Yes
Product specifications - Temperature monitoring & alarm options
Temperature recording system
Dial thermometer;Event logger
Alarm system
Yes
ISO 14001 certified
Yes
Warranty, installation and maintainence
Warranty period (months)
12.00
Maintenance service
Advisory service;Maintenance network
Installation service
Advisory service;Installer network
Quality standard
Specification Reference
Applicable PQS specification: CR-FR01.2
Applicable PQS VP(s): CR-FR01-VP.2
Applicable PQS VP(s): CR-FR01-VP.2
Product Sites
Porkka Finland Oy
Ravitie 3, FI-15860 Hollola FI-33470 Ylöjärvi Finland
Finland
Document Details
Freezer room sizes: >10 m3
