Product Details
Product name

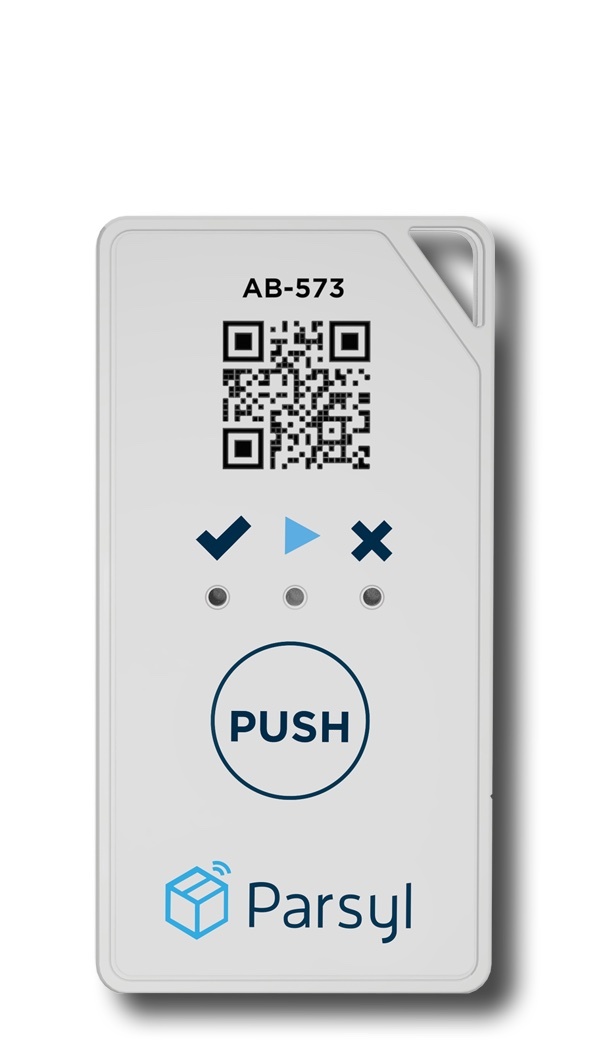

Parsyl Trek Tab
IMD-PQS Code
E006-084
Status
Prequalified
Date of acceptance
06 Feb 2022
Appliance type
E006
Product description
User programmable data logger
Manufacturer
e-Health Africa (eHA - formerly Parsyl Inc.)
Manufacturer Reference
Parsyl Trek Tab
Country of Manufacture
Thailand
Address
4-6 Independence Road
Kano
Kano
Nigeria
Kano
Kano
Nigeria
Telephone
+66 2420-2888
Email
Website address
Valid until
31 May 2026
Specifications
Product specifications - Main
Mode of operation
Electronic
Minimum logging intervals (mins)
0.00
Maximum logging intervals (mins)
360.00
Maximum recording time (days)
365.00
Sensor type(s)
internal sensor
Maximum sensor lead length (metres)
0.00
Maximum number of sensor channels
1.00
External dimensions height (mm)
5.30
External dimensions length (mm)
51.00
External dimensions width (mm)
26.00
Activation mechanism
button
Material
Polycarbonate + ABS
Fixing mechanism
None
CE marking
Yes
Mechanical and electronic devices only
Accuracy (+/- °C)
0.50
Power source
Non-replaceable battery
Battery type
3V LiMnO2
Battery shelf life (year)
2 years
Activated battery life
12 Months (min)
Alarm type
NA
Memory capacity (readings)
10000.00
User interface
mobile app, LED
Recording medium
Flash Memory
Price and shipping
Shipping volume (m3)
0.02
Weight per Package (Kg)
0.0090
Units per package
50.00
Weight per Unit (Kg)
5.2000
Minimum order
50.00
Incoterms
EXW
Price 1
$12
Year of base price
2022
Quality standard
Quality Standard
Other
Quality standard (Other)
ISO 9001:2015
Specification Reference
Applicable PQS specification:
Applicable PQS VP(s):
Applicable PQS VP(s):
Verification
Verification Laboratory
0013X00004Ml8OaQAJ
Product Sites
e-Health Africa (eHA - formerly Parsyl Inc.)
4-6 Independence Road
Kano,
Kano
Nigeria
Document Details

• The Trek Tab device includes temperature sensor.
• Users can configure multiple visual alarms to alert them when a threshold has been breached.
• Data is collected and stored even in low and no connectivity environments, meaning that no data will be lost even when power and cell service is inconsistent or unavailable.
• Data is transferred via Bluetooth Low Energy (BLE) to the Parsyl mobile app, where users can view the alarms and additional metrics. Data can also be transferred via the optional Parsyl Gateway, which automatically transfers data for nearby devices via cellular or wi-fi.
• Offloaded data is automatically uploaded to the Parsyl web platform.
• Parsyl sensor data collected is processed into actionable insights allowing health care workers to take remedial actions which can be recorded in the Parsyl mobile application.
• The Parsyl web application provides timelines and details of excursions that help to prevent the same issues from happening again in the future.
Memory size: 16,000 data points
