SF - Immunization Devices
Download file
Product Details
Product name

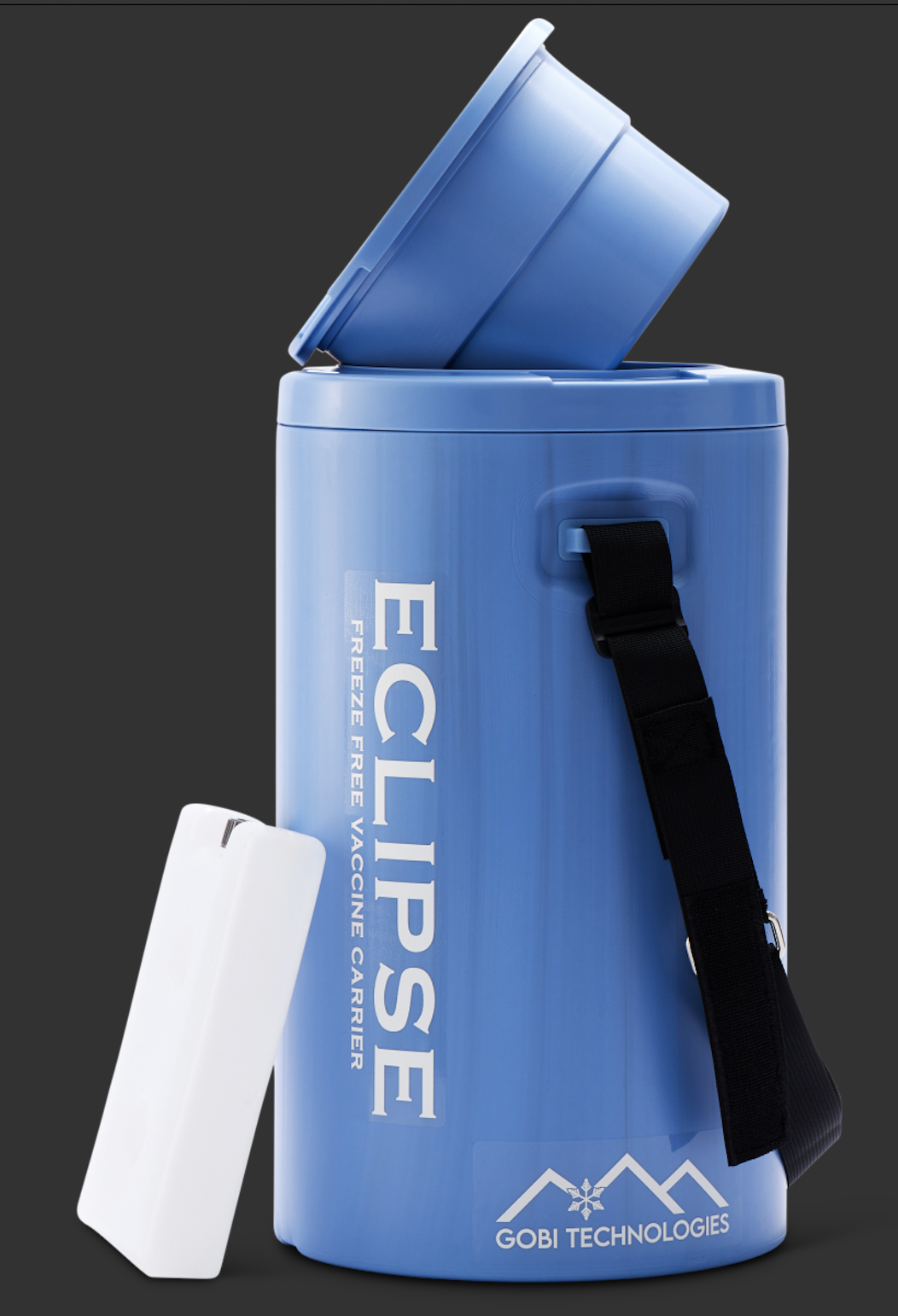

FF001A Eclipse 1.8L
IMD-PQS Code
E004-070
Status
Prequalified
Date of acceptance
06 Dec 2023
Appliance type
E004
Product description
Freeze-free Vaccine carrier, Long range
Manufacturer
Gobi Technologies
Manufacturer Reference
FF001A Eclipse 1.8L
Country of Manufacture
Germany
Address
5406 Lake Washington Blvd NE Suite F
Kirkland
Washington
United States of America
Kirkland
Washington
United States of America
Telephone
+49 89 310 44 84
Email
Website address
Valid until
31 May 2026
Specifications
Product specifications - Main
Vaccine storage capacity (Litre)
1.80
Gross storage volume (Litre)
1.8000
External dimensions height (mm)
387.00
External dimensions width (mm)
220.00
Internal dimensions (length, mm)
0.00
Internal dimensions (height, mm)
206.00
Internal dimensions (width, mm)
159.00
Cold life at +43°C * (hrs:mn)
36:00
Warm life at - 20°C *(hrs:mn)
31:48
Weight empty(Kg)
3.4000
Weight fully loaded (Kg)
5.50
Minimum Rated Ambient Temp (°C)
15.00
Number coolant packs
1.00
Type coolant packs
Water packs
Model coolant pack
Gobi 0.6L FF007A
Coolant packs supplied
Yes
Product specifications - Materials & construction
Insulation materials
Vaccuum insulation
Insulation thickness (mm)
5 mm
Container type
Vaccine carrier
External materials
HDPE
Internal lining materials
Stainless Steel
Lid type fixing
Gripping strips
Comments
Eclipse is the first second generation freeze-preventative vaccine carrier
Price and shipping
Shipping volume (m3)
0.036
Shipping weight per carton(kg)
3.6
Pieces per package
1
Minimum order
1.00
Price 1
$89
Year of base price
2023
Incoterms
EXW
Quality standard
Quality Standard
Other
Quality standard (Other)
ISO 9001:2008
Subject to Field Validation
N/A
Verification
Verification Laboratory
0013X00004Ml8OpQAJ
Verification Report Reference
Re/Gent Report #23126/GO01/V2
Product Sites
Gobi Technologies
5406 Lake Washington Blvd NE Suite F
Kirkland,
Washington
98033
United States of America
Document Details
