E004-041

SF - Immunization Devices
Download file
Product Details
Product name

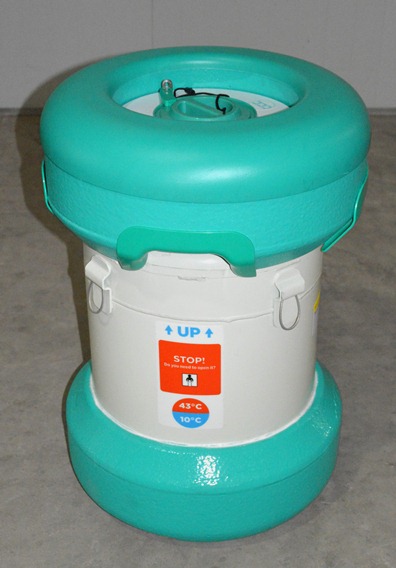

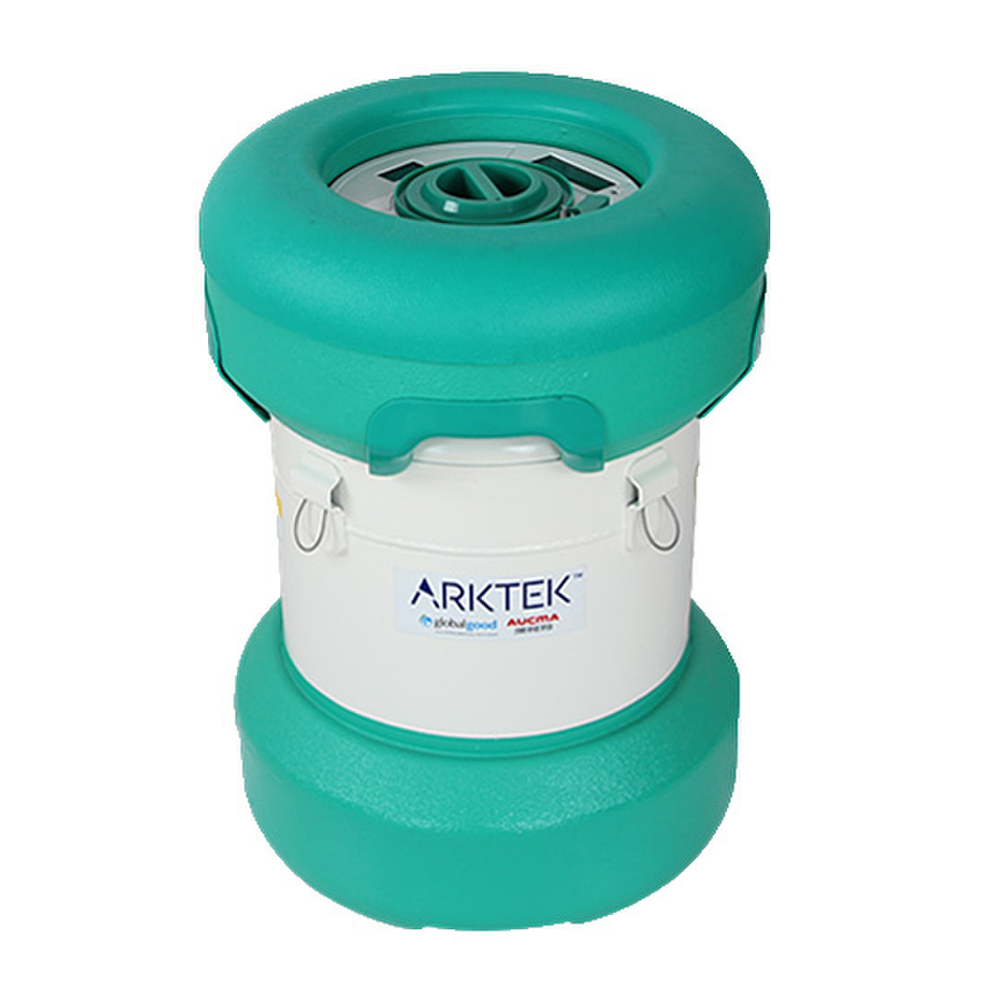

ARKTEK™ model YBC-5 (P6)
IMD-PQS Code
E004-041
Status
Prequalified
Date of acceptance
15 Jan 2015
Appliance type
E004
Product description
Long-Term Passive Device
Manufacturer
Qingdao Aucma Global Medical Co.,Ltd.
Manufacturer Reference
ARKTEK™ model YBC-5 (P6)
Country of Manufacture
China
Address
315 Qianwangang Road, Economic &Technological Development Zone, Qingdao, China
China
Telephone
+86 532 86763602
Website address
Valid until
31 May 2026
Specifications

Product specifications - Main

Vaccine storage capacity (Litre)
5.40
Gross storage volume (Litre)
5.4000
External dimensions length (mm)
0.00
External dimensions height (mm)
747.00
External dimensions width (mm)
528.00
Internal dimensions (length, mm)
311.00
Internal dimensions (height, mm)
0.00
Internal dimensions (width, mm)
332.00
Cold life at +43°C * (hrs:mn)
840
Warm life at - 20°C *(hrs:mn)
146.4
Weight empty(Kg)
22.0000
Weight fully loaded (Kg)
39.50
Minimum Rated Ambient Temp (°C)
5.00
Coolant packs
Other
Number coolant packs
8.00
Type coolant packs
Water packs
Model coolant pack
Unique for device
Coolant packs supplied
Yes

Product specifications - Materials & construction

Insulation materials
Dewar
Insulation thickness (mm)
40
External materials
HDPE
Internal lining materials
Aluminum Alloy
Lid type fixing
Removable lid
Comments
This device is intended to be used as a stationary passive container to store vaccines for a period of minimum 35 days before recharge with icepacks.

OEM name and address: AUCMA Co. Ltd.
315 Qianwangang Road Economic &Technological Development Zone Qingdao
China

Range storage capacity: 5 - 10 L
Vaccine storage dimensions (cm): 28.3 x 9.8 x 28.5

Price and shipping

Shipping volume (m3)
0.376
Shipping weight per carton(kg)
32.5
Pieces per package
1 piece
Minimum order
5.00
Price 1
up to 99 units: 2393 USD per unit
Price 2
100 units and more: 2193 USD
Year of base price
2015
Incoterms
FCA

Quality standard

Quality Standard
Other
Quality standard (Other)
ISO 9001:2008
Specification Reference
Applicable PQS specification: E004/CB03.1
Applicable PQS VP(s): E004/CB03-VP.1
Subject to Field Validation
In process

Verification

Verification Laboratory
0013X00004Ml8OhQAJ
Verification Report Reference
WB-14-644
Product Sites
Qingdao Aucma Global Medical Co.,Ltd.
315 Qianwangang Road, Economic &Technological Development Zone, Qingdao, China
China
