Product Details
Product name
YC-125EW
IMD-PQS Code
E003-142e
Status
Prequalified
Date of acceptance
08 Sep 2025
Appliance type
E003
Product description

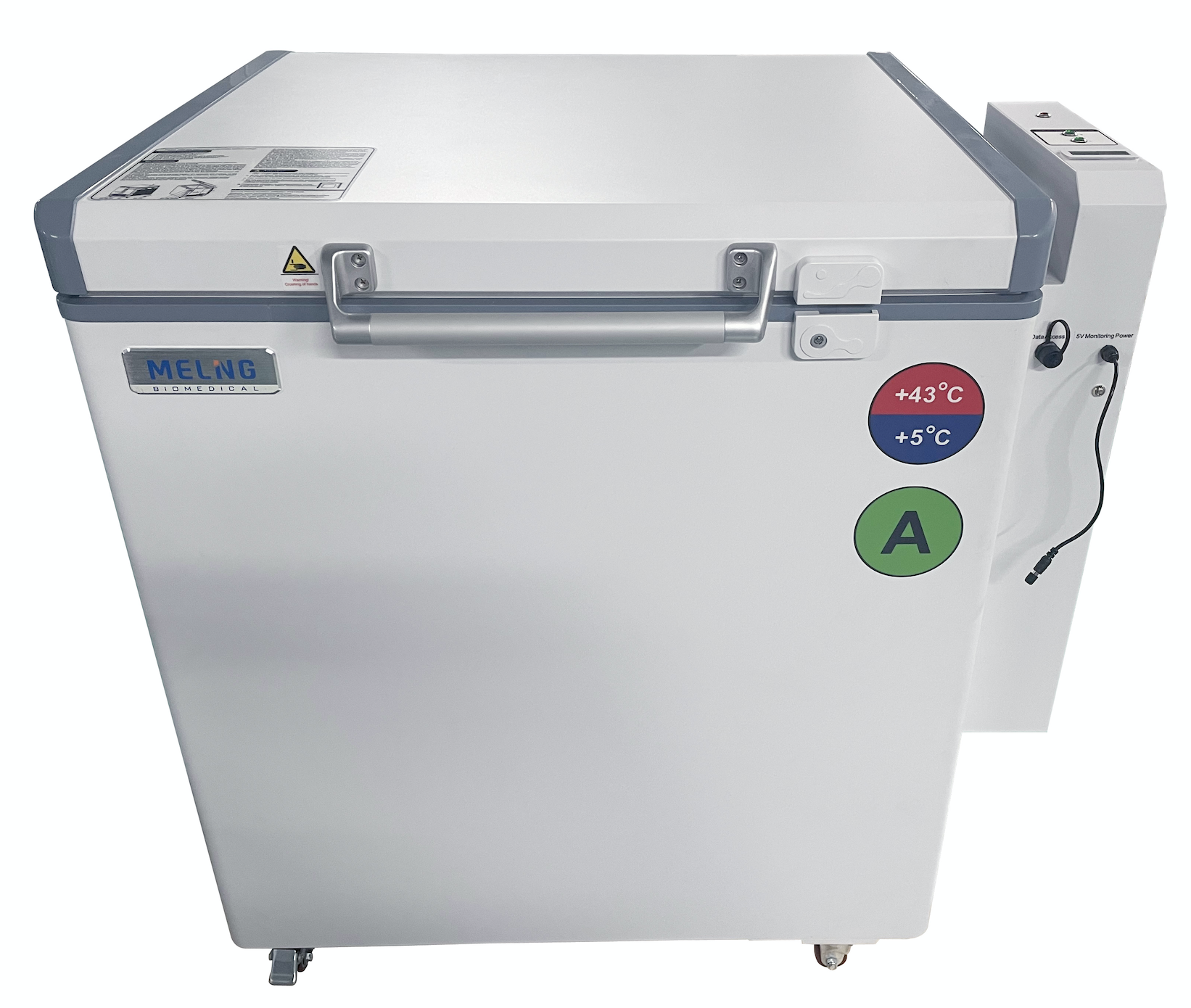

Icelined refrigerator
Manufacturer
Zhongke Meiling Cryogenics Company Limited
Manufacturer Reference
YC-125EW
Country of Manufacture
China
Address
No. 1862 Zishi Road
Hefei
Anhui
China
Hefei
Anhui
China
Telephone
+86 551 6431 7378
Email
Valid until
31 May 2026
Specifications
Product specifications - Main
Climate zone
Hot
Minimum rated ambient temperature (°C)
5.00
Hold over time (hours:mn)
83:07
External dimensions length (mm)
929.00
External dimensions width (mm)
834.00
External dimensions height (mm)
966.00
Appliance tested at (°C)
43.00
Performance at" (°C)
43.00
Fuel and refrigeration cycle
Electric - compression
Energy source
Electric mains 220-240//60-50Hz
Lining
Icelined
Energy Consumption Intermittent Power (kWh/24h)
0.7190
Energy Consumption Cool Down (kWh/24h)
0.7470
Energy Consumption Continuous Power (kWh/24h)
0.6840
Product specifications - Additional Refrigerator
Refrigerator vaccine storage capacity(L)
95.000
Refrigerator's gross volume (Litres)
125.000
Refrigerant type
R600a
List of accessories
(1) Operation manual
(1) Certificate card
(2) Key
(10) Spare fuse
(1) Certificate card
(2) Key
(10) Spare fuse
List of spare parts, Reference & Price
Included in the UNICEF Supply Division spare parts kit:
2 NO. Condenser-Part NO. 890379860
2 NO. Fan Motor-Part NO. 890279770
1 NO. Power switch-Part NO. 890370233
1 NO. AC to DC module-Part NO.890234244
1 NO. Control panel-Part NO. 890260742
1 NO. Display panel-Part NO. 890188313
1 NO. Solar display screen-Part NO. 890383792
2 NO. Indicator light(green)-Part NO. 890447241
1 NO. Fuse seat-Part NO. 890473151
2 NO. Compressor-Part NO. 890460490
2 NO. The filter-Part NO. 890348235
1 NO. Equiplog Data Logger-Part NO. 890467888
1 NO. Indicator light(red)-Part NO. 890473150
Other parts are available as spares on request.
1 NO. Fan Motor-Part NO. 890279770 (USD 9.8)
1 NO. AC to DC module-Part NO.890234244 (USD 23.6)
1 NO. Control panel-Part NO. 890260742 (USD 50.5)
1 NO. Display panel-Part NO. 890188313 (USD 14.8)
1 NO. Compressor-Part NO. 890460490 (USD 51.3)
1 NO. The filter-Part NO. 890348235 (USD 0.9)
The prices of other spare parts can be provided on request.
2 NO. Condenser-Part NO. 890379860
2 NO. Fan Motor-Part NO. 890279770
1 NO. Power switch-Part NO. 890370233
1 NO. AC to DC module-Part NO.890234244
1 NO. Control panel-Part NO. 890260742
1 NO. Display panel-Part NO. 890188313
1 NO. Solar display screen-Part NO. 890383792
2 NO. Indicator light(green)-Part NO. 890447241
1 NO. Fuse seat-Part NO. 890473151
2 NO. Compressor-Part NO. 890460490
2 NO. The filter-Part NO. 890348235
1 NO. Equiplog Data Logger-Part NO. 890467888
1 NO. Indicator light(red)-Part NO. 890473150
Other parts are available as spares on request.
1 NO. Fan Motor-Part NO. 890279770 (USD 9.8)
1 NO. AC to DC module-Part NO.890234244 (USD 23.6)
1 NO. Control panel-Part NO. 890260742 (USD 50.5)
1 NO. Display panel-Part NO. 890188313 (USD 14.8)
1 NO. Compressor-Part NO. 890460490 (USD 51.3)
1 NO. The filter-Part NO. 890348235 (USD 0.9)
The prices of other spare parts can be provided on request.
Price and shipping
Shipping volume (m3)
1.009
Shipping weight (kg)
162.00
Incoterms
EXW
Price 1
1-10 UNITS: 1500 USD
Price 2
11-100 UNITS: 1450 USD
Price 3
＞100 UNITS: on request to manufacturer
Year of base price
2025
Quality standard
Quality Standard
ISO 13485;Other
Quality standard (Other)
ISO 9001:2015; ISO 14001:2015; ISO 45001:2018
Verification
Verification Laboratory
CHEARI
Address
#29 Xia Jie Street, Xuan Wu district Beijing 100053 R. P. de Chine
China
China
Telephone
+86 1063162443
Email
Verification Report Reference
WB-24-0186
Product Sites
Zhongke Meiling Cryogenics Company Limited
No. 1862 Zishi Road
Hefei,
Anhui
230601
China
Document Details
2. Standard with 2 universal castors with brakes and 2 fixed castors, convenient for movement and fixation.
3. Standard with 5 baskets for store vaccines/samples.
4. Cool storage unit do not need to inject or replenish water, more convenient to use.
5. Dual cooling system, dual reliability.
6. The appliance has a Equiplog Data Logger that complies with "WHO/PQS/E006/DL01" and "WHO/PQS/E006/DS01".
7. The appliance has 5V/1A interface and Type C interface.
8. RS485 2 wire port to connect with any MODBUS compliant slave.
9. Freeze protection: Grade A.
10. Optional: Humidity control plate.
