Product Details

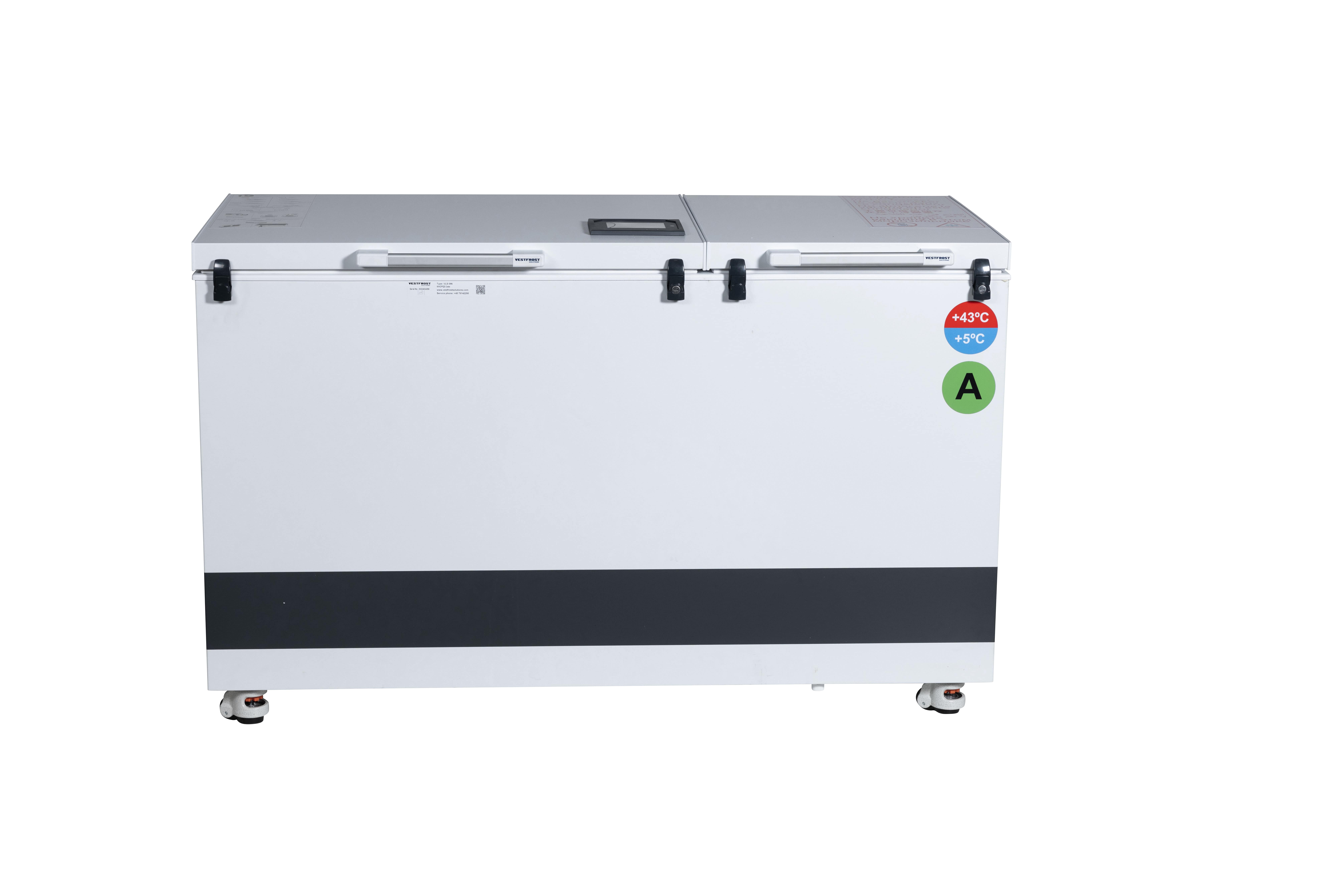

Product name
VLS 096A RF SDD
IMD-PQS Code
E003-132
Status
Prequalified
Date of acceptance
16 Mar 2023
Appliance type
E003
Product description
Solar Direct Drive Refrigerator
Manufacturer
Vestfrost Solutions
Manufacturer Reference
VLS 096A RF SDD
Country of Manufacture
Denmark
Address
A/S Vestfrost Falkevej 12
Esbjerg Ø
Syddanmark
Denmark
Esbjerg Ø
Syddanmark
Denmark
Telephone
+45 7914 2527
Website address
Valid until
31 Dec 2025
Specifications
Product specifications - Main
Climate zone
Hot
Minimum rated ambient temperature (°C)
5.00
Freeze protection
Grade A
Hold over time (hours:mn)
114,33
External dimensions length (mm)
740.00
External dimensions width (mm)
1510.00
External dimensions height (mm)
870.00
Performance at" (°C)
43.00
Fuel and refrigeration cycle
Electric - compression
Energy source
Solar direct drive
Lining
Ice-lined
Energy Consumption During Freezing (kWh/24h)
1.4890
Energy Consumption Intermittent Power (kWh/24h)
1.3520
Energy Consumption Cool Down (kWh/24h)
1.3520
Energy Consumption Continuous Power (kWh/24h)
1.4100
Product specifications - Additional Refrigerator
Refrigerator vaccine storage capacity(L)
110.000
Refrigerator's gross volume (Litres)
147.000
Autonomy (hrs:mn)
114.33
Refrigerant type
R600a
Solar radiation ref period (kWh/m2/day)
3.50
Product specifications - Additional Freezer
Freezer's gross volume (Litres)
50.00
Waterpack freezing capacity (Kg/24 hrs)
2.40
Waterpack storage capacity (Litres)
16.80
List of accessories
2 X Vaccine storage top basket; Bottom grating; 30 day electronic temperature logger; Self regulating temperature control; Electronic temperature reading; 2 x Keys; Instruction manual in 6 UN languages; Technical manual in 6 UN languages
List of spare parts, Reference & Price
Included in the UNICEF Supply Division spare parts kit:
1 No. Compressor (BD 35K) Complete R600a Incl. ECU - Part No. 8-036510223
1 No. Thermostat refrigerator - Part No. 7095714
1 No. Thermostat freezer – Part No. 7095715
1 No. Fan Set (KD1208PTB3) 12 V DC Part No. 7030823
1 No. Thermometer, solar, Part No.7020392-03
Other parts are available as spares on request.
1 No. Compressor (BD 35K) Complete R600a Incl. ECU - Part No. 8-036510223
1 No. Thermostat refrigerator - Part No. 7095714
1 No. Thermostat freezer – Part No. 7095715
1 No. Fan Set (KD1208PTB3) 12 V DC Part No. 7030823
1 No. Thermometer, solar, Part No.7020392-03
Other parts are available as spares on request.
Price and shipping
Shipping volume (m3)
1.31
Shipping weight (kg)
190.00
Incoterms
EXW
Price 1
6.485 EUR
Year of base price
2023
Quality standard
Quality Standard
Other
Quality standard (Other)
ISO 9001:2008
Specification Reference
Applicable PQS specification:
Applicable PQS VP(s):
Applicable PQS VP(s):
Verification
Verification Laboratory
Danish Technological Institute
Address
Gregersensvej DK-2630 Taastrup Danemark
Denmark
Denmark
Telephone
+45 72202472
Verification Report Reference
300-KLAB-22-106
Product Sites
Vestfrost Solutions
A/S Vestfrost Falkevej 12
Esbjerg Ø,
Syddanmark
DK-6705
Denmark
Document Details
Unit equipped with unique QR code, that can be used along Vestfrost Solutions Unit tracker APP,
containing various installation/service features.
As an option the appliance can be supplied with Vestfrost in-built RTMD; with following features:
1: 5” touch display 2: 3X internal temp. sensors 3: ambient temp. 4: compressor sensor 5: humidity
sensor 6: lid opening alarm 7: GPS coordinates via Google maps 8: 1X USB 5V solar harvesting
port. All data collected/logged is automatic via GPRS uploaded to Vestfrost RTMD performance
data-portal, and/or can be accessed onsite from the touch screen menu.
Waterpack freezing capacity: 2.4 kg per/24h = 4 x 0.6 L Waterpacks per/24h
Waterpack storage capacity: 28 x 0.6L
