Product Details

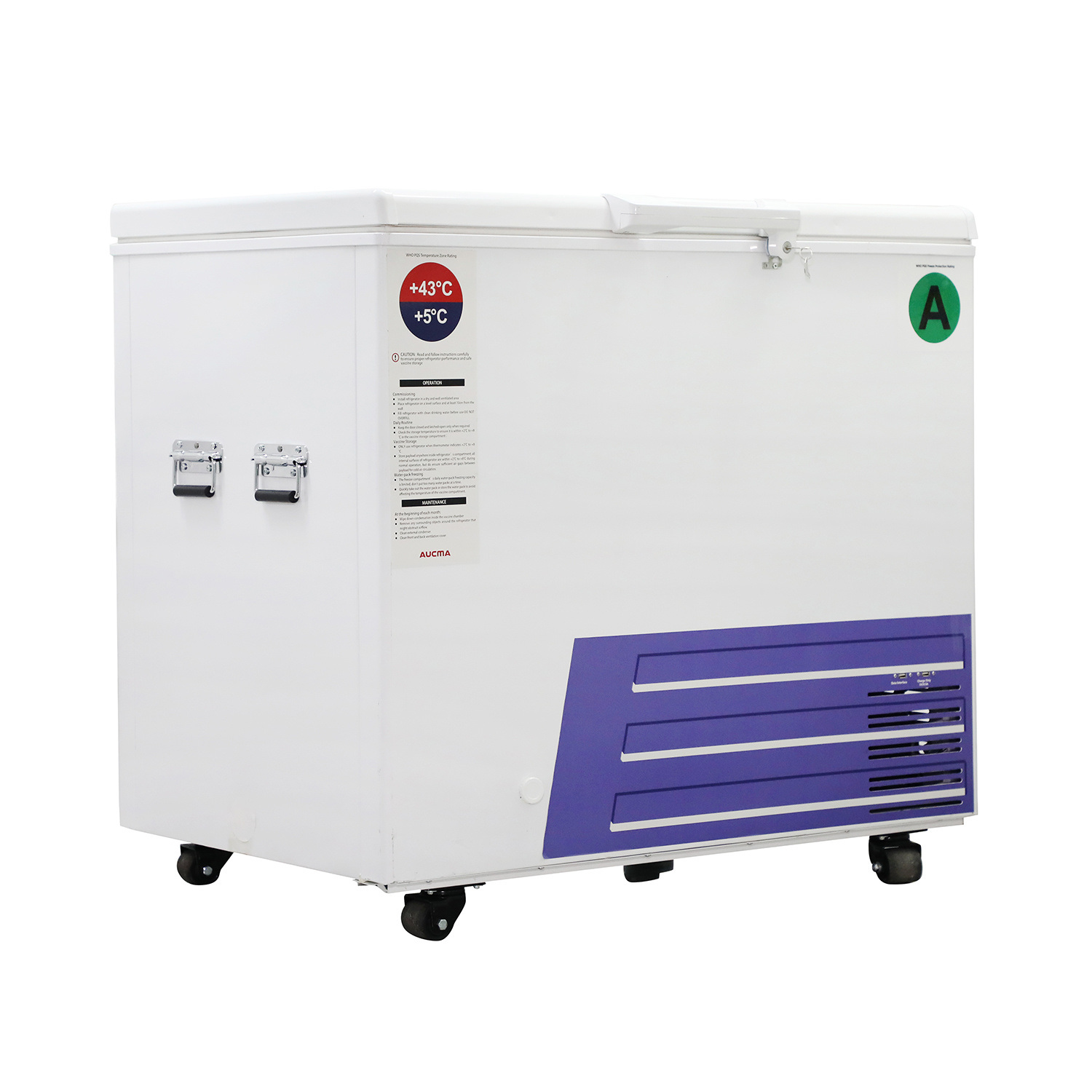

Product name
TCD-100
IMD-PQS Code
E003-129
Status
Prequalified
Date of acceptance
14 Sep 2022
Appliance type
E003
Product description
Solar Direct Drive Refrigerator & Freezer
Manufacturer
Qingdao Aucma Global Medical Co.,Ltd.
Manufacturer Reference
TCD-100
Country of Manufacture
China
Address
315 Qianwangang Road, Economic &Technological Development Zone, Qingdao, China
China
China
Telephone
+86 532 86763602
Email
Website address
Valid until
31 Dec 2025
Specifications
Product specifications - Main
Climate zone
Hot
Minimum rated ambient temperature (°C)
5.00
Freeze protection
Grade A
External dimensions length (mm)
750.00
External dimensions width (mm)
1050.00
External dimensions height (mm)
975.00
Appliance tested at (°C)
43.00
Performance at" (°C)
43.00
Fuel and refrigeration cycle
Electric - compression
Lining
Ice-lined
Energy Consumption During Freezing (kWh/24h)
1.9950
Energy Consumption Cool Down (kWh/24h)
1.2060
Energy Consumption Continuous Power (kWh/24h)
1.4100
Product specifications - Additional Refrigerator
Refrigerator vaccine storage capacity(L)
48.000
Refrigerator's gross volume (Litres)
59.000
Autonomy (hrs:mn)
180
Refrigerant type
R290
Solar radiation ref period (kWh/m2/day)
3.50
Product specifications - Additional Freezer
Freezer's gross volume (Litres)
38.00
Waterpack freezing capacity (Kg/24 hrs)
2.00
Waterpack storage capacity (Litres)
10.70
List of accessories
1. 2 Vaccine boxes
2. 2 Keys
3. 1 Funnel
4. Documentation
5. 2 baskets
2. 2 Keys
3. 1 Funnel
4. Documentation
5. 2 baskets
List of spare parts, Reference & Price
3000001485 Compressor 283 USD
3000002307 DC fan 26 USD
3001000717 Electronic control unit 68 USD"
3000002307 DC fan 26 USD
3001000717 Electronic control unit 68 USD"
Price and shipping
Shipping volume (m3)
1.62
Shipping weight (kg)
260.00
Incoterms
EXW
Year of base price
2022
Quality standard
Quality Standard
Other
Quality standard (Other)
ISO 9001:2015
Specification Reference
Applicable PQS specification:
Applicable PQS VP(s):
Applicable PQS VP(s):
Verification
Verification Laboratory
0013X00004Ml8OhQAJ
Verification Report Reference
WB-21-0332
Product Sites
Qingdao Aucma Global Medical Co.,Ltd.
315 Qianwangang Road, Economic &Technological Development Zone, Qingdao, China
China
Document Details
2. Integrated USB temperature data module with 10 year data storage capacity;
3. 180 hours of holdover at constant ambient temperature of 43 °C;
4. 2.0kg daily Water-pack freezing capacity, 10.7kg water-pack storage compartment capacity;
5. 180 hours autonomy at constant ambient temperature of 43 °C;
6. Integrated maximum/minimum temperature and alarm data with 30 day history;
7. Integrated USB charging port 5V / 0.5A;
