E003-124

SF - Immunization Devices
Download file
E003-124.pdf
E003-124.json
Product Details
Product name
TCW120SDD
IMD-PQS Code
E003-124
Status
Prequalified
Date of acceptance
12 Jun 2021
Appliance type
E003
Product description

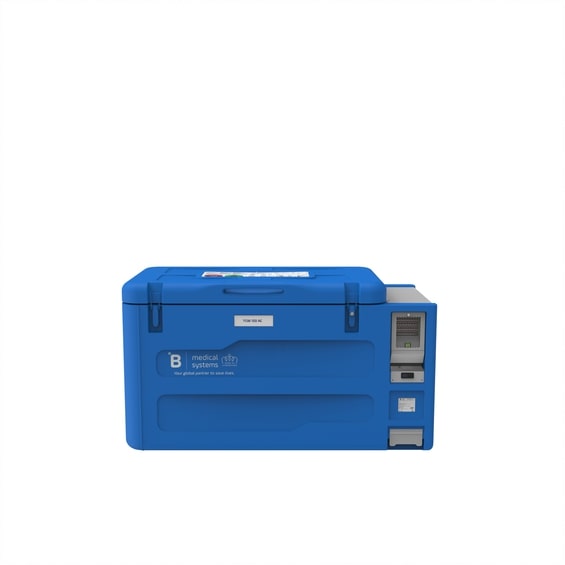

Vaccine Refrigerator / Ice-pack Freezer
Manufacturer
B Medical Systems Sarl
Manufacturer Reference
TCW120SDD
Country of Manufacture
Luxembourg
Address
17 Op der Hei L-9809 Hosingen Luxembourg
Luxembourg
Telephone
+ 35 2 92 07 311
Email
info@bmedicalsystems.com
Website address
www.bmedicalsystems.com
Valid until
31 May 2026
Specifications

Product specifications - Main

Climate zone
Hot
Minimum rated ambient temperature (°C)
5.00
Freeze protection
Grade A
External dimensions length (mm)
790.00
External dimensions width (mm)
1620.00
External dimensions height (mm)
910.00
Appliance tested at (°C)
43.00
Performance at" (°C)
43.00
Fuel and refrigeration cycle
Electric - compression
Energy source
Solar direct drive
Lining
Ice-lined
Energy Consumption During Freezing (kWh/24h)
1.3800
Energy Consumption Cool Down (kWh/24h)
1.3100
Energy Consumption Continuous Power (kWh/24h)
1.1500

Product specifications - Additional Refrigerator

Refrigerator vaccine storage capacity(L)
120.000
Refrigerator's gross volume (Litres)
153.000
Autonomy (hrs:mn)
82:05
Refrigerant type
R600a
Solar radiation ref period (kWh/m2/day)
3.50

Product specifications - Additional Freezer

Freezer net volume
< 50 L
Freezer's gross volume (Litres)
28.00
Waterpack freezing capacity (Kg/24 hrs)
1.60
Waterpack storage capacity (Litres)
13.20
Comments
Prices include the solar generator system: G1 = roof fixed; G2 = roof adjustable. Includes for the duration of the warranty period contractually agreed: the B-Medical systems RTMD with worldwide communication; real-time alarms messages for temperature and open door alerts via SMS/Email, GPS position using Google Maps, access to the webserver performance monitoring; compliant to WHO PQS E006/TR03.2 with one deviation, as this RTMD has no integrated display. However, the refrigerator does have a digital display. This RTMD is exclusively bundled to B Medical Systems refrigerators/freezers. It includes a warranty for 3 or 10 years. For further information on the warranty please contact B Medical Systems.

Waterpack storage capacity: 22 x 0.6L
List of accessories
4 vaccine storage baskets
lockable lid
2 spacers
22 waterpacks of 0.6L
List of spare parts, Reference & Price
Included in the UNICEF Supply Division spare parts kit:

1 No. Compressor BD35K Solar - Part No. 296. 9702.09
1 No. Electronic Control Unit (E-box) - Part No. 296.9705.32
1 No. Electronic Thermostat / Controller - Part No. 296.9768.69
1 No. Fan (12V, 4.3W) - Part No. 292.9960.13
1 No. Driver - Part No. 296.0945.04
1 No. Controller display board - Part No. 296.9769.91
1 No. Sensor - Part No. 296.9805.06

Other parts are available as spares on request.

Price and shipping

Shipping volume (m3)
1.39
Shipping weight (kg)
187.00
Incoterms
EXW
Price 1
>100 units: G1 10,222 Euros; G2 11,281 Euros
Year of base price
2025

Quality standard

Quality Standard
ISO 13485;Other
Quality standard (Other)
ISO 9001:2015; ISO 14001:2015
Specification Reference
Applicable PQS specification: E003 / RF05.6
Applicable PQS VP(s):

Verification

Verification Laboratory
CEMAFROID SAS
Address
5 Avenue des Pres CS 20029 F94 266 Fresnes Cedex France
France
Telephone
+33 1 49 84 84 84
Email
gerald.cavalier@cemafroid.fr
Verification Report Reference
WHO 21-03
Product Sites
B Medical Systems Sarl
17 Op der Hei L-9809 Hosingen Luxembourg
Luxembourg
