Product Details
Product name
IceVolt 300P
IMD-PQS Code
E003-122
Status
Prequalified
Date of acceptance
14 Jun 2021
Appliance type
E003
Product description

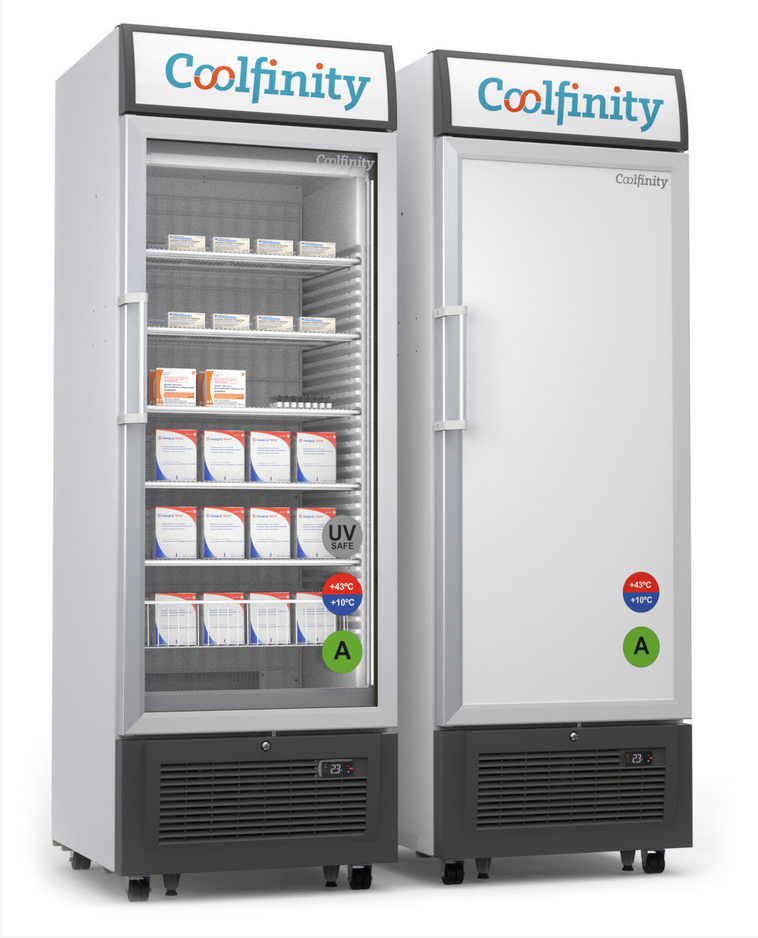

Icelined refrigerator
Manufacturer
Coolfinity Medical B.V.
Manufacturer Reference
IceVolt 300P
Country of Manufacture
Netherlands
Address
Goeman Borgesiuslaan 77
Utrecht
Netherlands
Utrecht
Netherlands
Telephone
+31 85 066 23 64
Email
Website address
Valid until
31 Dec 2025
Specifications
Product specifications - Main
Climate zone
Hot
Minimum rated ambient temperature (°C)
10.00
Freeze protection
Grade A
Hold over time (hours:mn)
25:00
External dimensions length (mm)
730.00
External dimensions width (mm)
670.00
External dimensions height (mm)
1999.00
Appliance tested at (°C)
43.00
Performance at" (°C)
43.00
Fuel and refrigeration cycle
Electric - compression
Energy source
Electric Mains 220-240V 50/60Hz;Electric Mains 115/60Hz
Lining
Ice-lined
Energy Consumption Intermittent Power (kWh/24h)
2.1900
Energy Consumption Cool Down (kWh/24h)
2.2100
Energy Consumption Continuous Power (kWh/24h)
2.9800
Product specifications - Additional Refrigerator
Refrigerator vaccine storage capacity(L)
241.000
Refrigerator's gross volume (Litres)
318.000
Refrigerant type
R290
Product specifications - Additional Freezer
Freezer type
N/A
List of accessories
Accessoires included:
a) 5x baskets,
b) Berlinger Fridge-Tag 2E (30 day temperature recorder),
c) filling funnel,
d) 2x keys for integrated door lock,
e) instruction manual,
f) wooden pallet,
Optional Accessoires:
a) 1x or 2x additional baskets,
b) shelves (instead of baskets),
c) Berlinger SmartMonitor SITE L,
d) wooden crate (12 kg extra shipping weight),
e) branding on the refrigerator sides,
f) Large LED temperature display in top panel (7cm)
a) 5x baskets,
b) Berlinger Fridge-Tag 2E (30 day temperature recorder),
c) filling funnel,
d) 2x keys for integrated door lock,
e) instruction manual,
f) wooden pallet,
Optional Accessoires:
a) 1x or 2x additional baskets,
b) shelves (instead of baskets),
c) Berlinger SmartMonitor SITE L,
d) wooden crate (12 kg extra shipping weight),
e) branding on the refrigerator sides,
f) Large LED temperature display in top panel (7cm)
List of spare parts, Reference & Price
UNICEF Supply Division the spare parts kit consists of:
Option 1 - 230V/60Hz Version
1 x Evaporator fan (artcle no. 987713)
1 x Controller (artcle no. 6114382)
1 x Battery charger (artcle no. 6114296)
1 x Voltage stabilizer control unit (artcle no. 6114365)
Option 1 - 230V/60Hz Version
1 x Evaporator fan (artcle no. 987713)
1 x Controller (artcle no. 6114382)
1 x Battery charger (artcle no. 6114296)
1 x Voltage stabilizer control unit (artcle no. 6114365)
Price and shipping
Shipping volume (m3)
1.09
Shipping weight (kg)
190.00
Incoterms
FCA
Price 1
<50 pieces € 2,680, >50 € 2580
Year of base price
2024
Quality standard
Quality Standard
Other
Quality standard (Other)
ISO 9001:2008
Specification Reference
Applicable PQS specification: E003/RF03.5
Applicable PQS VP(s): E003/RF03-VP.4
Applicable PQS VP(s): E003/RF03-VP.4
Verification
Verification Laboratory
Danish Technological Institute
Address
Gregersensvej DK-2630 Taastrup Danemark
Denmark
Denmark
Telephone
+45 72202472
Verification Report Reference
300-KLAB-21-106
Product Sites
Coolfinity Medical B.V.
Goeman Borgesiuslaan 77
Utrecht
3515
Netherlands
Document Details
1. 220 – 240 Volt 50/60 Hz, integrated extended version, Sollatek FSPE4B-2 4.5A/6A 110V-285V 50/60Hz
2. 110 – 127 V 50/60 Hz , integrated extended version, Sollatek FSPE4B-1 4.5A/6A 82V-159V 50/60Hz
b) The refrigerator has internal LED lighting that switches on when the door is opened. It also works during power outages.
c) The refrigerator has a special glass door, that prevents condensation and fogging on the glass.
d) Coolfinity refrigerators have a patented technology for the cooling system.
e) The refrigerator requires clean drinking water during installation, please the contact manufacturer or watch the installation video online.
f) This appliance was modified in November 2022. This modification consisted of a change of the controller. The appliance was retested and resulted in a slight change in the holdover time and energy consumption.
The glass door includes a protective film that blocks >99% of UV light.
