Product Details

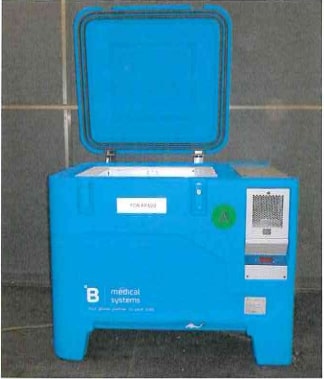

Product name
TCW80-SDD
IMD-PQS Code
E003-121
Status
Prequalified
Date of acceptance
06 Jul 2021
Appliance type
E003
Product description
Solar Direct Drive Refrigerator
Manufacturer
B Medical Systems Sarl
Manufacturer Reference
TCW80-SDD
Country of Manufacture
Luxembourg
Address
17 Op der Hei L-9809 Hosingen Luxembourg
Luxembourg
Luxembourg
Telephone
+ 35 2 92 07 311
Email
Website address
Valid until
31 Dec 2025
Specifications
Product specifications - Main
Climate zone
Hot
Minimum rated ambient temperature (°C)
5.00
Freeze protection
Grade A
Hold over time (hours:mn)
192
External dimensions length (mm)
778.00
External dimensions width (mm)
1023.00
External dimensions height (mm)
890.00
Appliance tested at (°C)
43.00
Performance at" (°C)
43.00
Fuel and refrigeration cycle
Electric - compression
Energy source
Solar direct drive
Lining
Ice-lined
Energy Consumption Cool Down (kWh/24h)
0.5800
Energy Consumption Continuous Power (kWh/24h)
0.6000
Product specifications - Additional Refrigerator
Refrigerator vaccine storage capacity(L)
80.500
Refrigerator's gross volume (Litres)
82.500
Autonomy (hrs:mn)
72:21
Refrigerant type
R600a
Solar radiation ref period (kWh/m2/day)
3.50
Product specifications - Additional Freezer
Freezer type
N/A
Waterpack freezing capacity (Kg/24 hrs)
0.00
Waterpack storage capacity (Litres)
0.00
Comments
Prices include the solar generator system : G1=roof fixes; G2=roof adjustable. Includes for the duration of the warranty period contractually agreed: the B Medical Systems RTMD with worldwide communication, real time alarms messages for temperature and open door alerts via SMS / EMAIL, GPS position using Google Maps, access to the webserver performance monitoring; compliant to WHO PQS E006/TR03.2 with one deviation as this RTMD has no integrated display (however the refrigerator has a digital display). This RTMD is exclusively bundled to B Medical Systems refrigerators / freezers. Includes warranty for 3 or 10 years as the case may be. For more information and further conditions of warranty, please contact B Medical Systems
List of accessories
4 vaccine storage baskets
lockable lid
2 spacers
1 compass
1 brush
lockable lid
2 spacers
1 compass
1 brush
List of spare parts, Reference & Price
Included in the UNICEF Supply Division spare parts kit:
1 No. Compressor (BD35K Solar) - Part No. 296.9702.09
1 No. Electronic Control Unit (E-box) - Part No. 296.9705.32
1 No. Electronic thermostat/controller - Part No. 296.9768.67
1 No. Fan (12V 4.3W 410mm) - Part No. 292.9960.13
1 No. Drier - Part No. 296.0945.04
1 No. Controller display board - Part No. 296.9769.91
1 No. Sensor - Part No. 296.9804.78
Other parts are available as spares on request
1 No. Compressor (BD35K Solar) - Part No. 296.9702.09
1 No. Electronic Control Unit (E-box) - Part No. 296.9705.32
1 No. Electronic thermostat/controller - Part No. 296.9768.67
1 No. Fan (12V 4.3W 410mm) - Part No. 292.9960.13
1 No. Drier - Part No. 296.0945.04
1 No. Controller display board - Part No. 296.9769.91
1 No. Sensor - Part No. 296.9804.78
Other parts are available as spares on request
Price and shipping
Shipping volume (m3)
0.88
Shipping weight (kg)
112.00
Incoterms
EXW
Price 1
>100units G1 : 6260€
Price 2
>100units G2 : 6798€
Year of base price
2025
Quality standard
Quality Standard
ISO 13485;Other
Quality standard (Other)
ISO 9001:2015, ISO 14001:2015
Specification Reference
Applicable PQS specification: E003/RF05.6
Applicable PQS VP(s): E003/RF05-VP.6
Applicable PQS VP(s): E003/RF05-VP.6
Verification
Verification Laboratory
CEMAFROID SAS
Address
5 Avenue des Pres CS 20029 F94 266 Fresnes Cedex France
France
France
Telephone
+33 1 49 84 84 84
Verification Report Reference
WHO 21-01
Product Sites
B Medical Systems Sarl
17 Op der Hei L-9809 Hosingen Luxembourg
Luxembourg
