Product Details

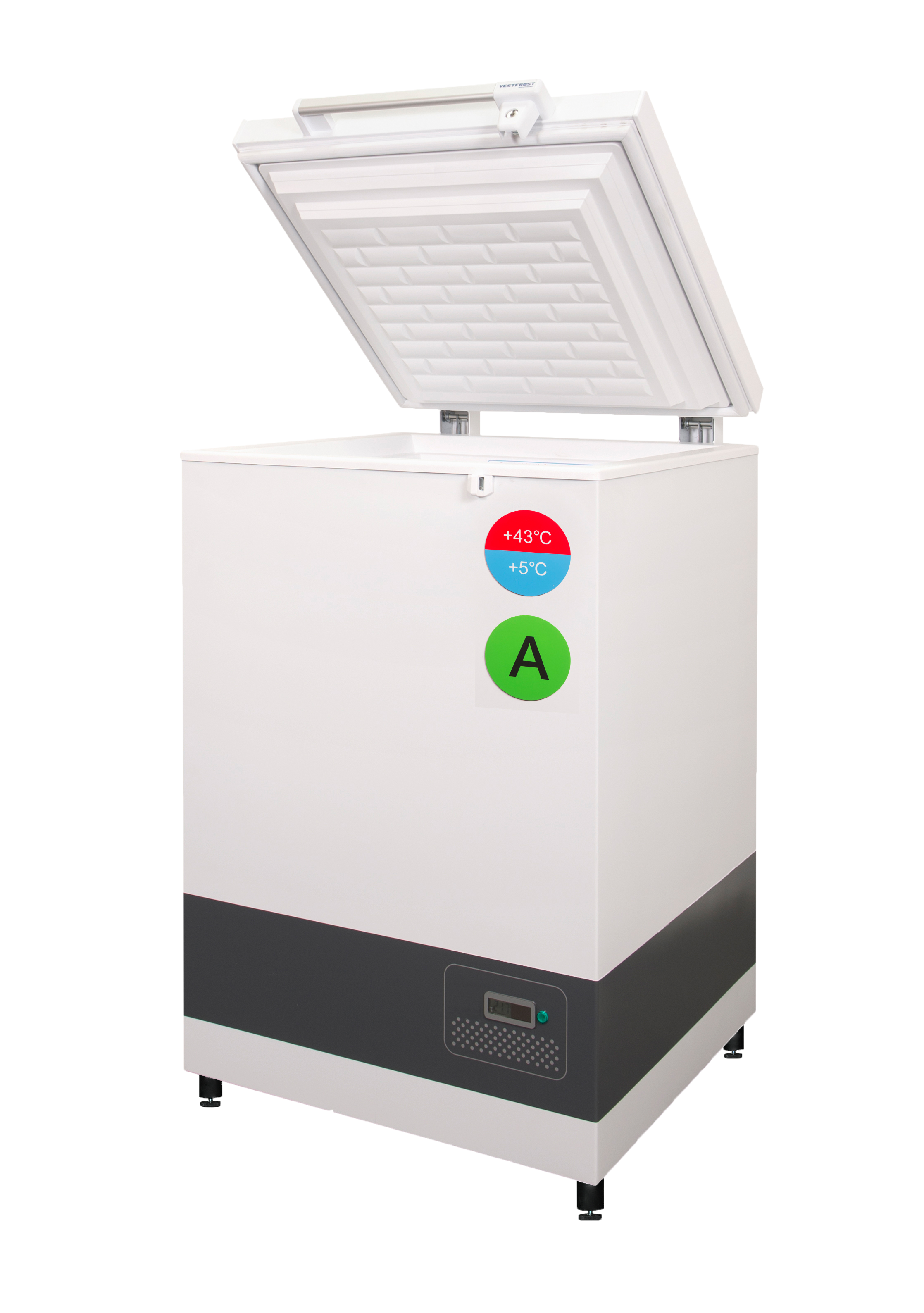

Product name
VLS 174A AC
IMD-PQS Code
E003-120
Status
Prequalified
Date of acceptance
27 Apr 2021
Appliance type
E003
Product description
Icelined refrigerator
Manufacturer
Vestfrost Solutions
Manufacturer Reference
VLS 174A AC
Country of Manufacture
Denmark
Address
A/S Vestfrost Falkevej 12
Esbjerg Ø
Syddanmark
Denmark
Esbjerg Ø
Syddanmark
Denmark
Telephone
+45 7914 2527
Website address
Valid until
31 Dec 2025
Specifications
Product specifications - Main
Climate zone
Hot
Minimum rated ambient temperature (°C)
5.00
Freeze protection
Grade A
Hold over time (hours:mn)
57:52
External dimensions length (mm)
550.00
External dimensions width (mm)
650.00
External dimensions height (mm)
950.00
Performance at" (°C)
43.00
Fuel and refrigeration cycle
Electric - compression
Energy source
Electric Mains 115/60Hz;Electric Mains 220-240V 50/60Hz or Electric Mains 115/60Hz optional
Lining
Ice-lined
Energy Consumption Intermittent Power (kWh/24h)
0.4930
Energy Consumption Continuous Power (kWh/24h)
0.5040
Product specifications - Additional Refrigerator
Refrigerator vaccine storage capacity(L)
38.000
Refrigerator's gross volume (Litres)
50.600
Refrigerant type
R600a
Solar radiation ref period (kWh/m2/day)
1.00
Product specifications - Additional Freezer
Freezer type
N/A
List of accessories
1 x Vaccine storage baskets; 1 x Bottom grating; 1 x 30 day electronic temperature logger;
Self-regulating temperature control; Electronic temperature
reading; 2 x Keys; Instruction manual in 6 UN languages; Technical manual in 6 UN
languages; Plywood packing/crate
Self-regulating temperature control; Electronic temperature
reading; 2 x Keys; Instruction manual in 6 UN languages; Technical manual in 6 UN
languages; Plywood packing/crate
List of spare parts, Reference & Price
Included in the UNICEF Supply Division spare parts kit:
1 X Compressor (HXK80AT Complete ) - Part No.8-0365100181 X Thermostat Dixell XR30CH - Part No. 7020900421 X Thermometer, solar, Part No.7020392-031 X Voltage stabilizer controller Part No. 7020475
Other parts are available as spares on request.
1 X Compressor (HXK80AT Complete ) - Part No.8-0365100181 X Thermostat Dixell XR30CH - Part No. 7020900421 X Thermometer, solar, Part No.7020392-031 X Voltage stabilizer controller Part No. 7020475
Other parts are available as spares on request.
Price and shipping
Shipping volume (m3)
0.63
Shipping weight (kg)
79.00
Incoterms
EXW
Year of base price
2021
Quality standard
Quality Standard
Other
Quality standard (Other)
ISO 9001:2008
Specification Reference
Applicable PQS specification: E003/RF03.5
Applicable PQS VP(s):
Applicable PQS VP(s):
Verification
Verification Laboratory
Danish Technological Institute
Address
Gregersensvej DK-2630 Taastrup Danemark
Denmark
Denmark
Telephone
+45 72202472
Verification Report Reference
Refrigerator 300-KLAB-20-317
Product Sites
Vestfrost Solutions
A/S Vestfrost Falkevej 12
Esbjerg Ø,
Syddanmark
DK-6705
Denmark
Document Details
Equipped with unique QR code, that can be used along Vestfrost Solutions Unit tracker
APP, containing various installation/service features.
Electric components positioned in corrosion free metal junction box, protecting for water,
dust intrusion, and eases service/maintenance.
For easy customization to local standard plug, supplied with appliance power in-let +
Appliance power plug/cable.
model is supplied with internal voltage stabilizer for extended input range, incl. high, low, spike and surge protection in line with E007/VS01-VP.5
For 220-240V/50/60Hz, input voltage regulation range 110-278V/50/60Hz
For 100-127V/50/60Hz, input voltage regulation range 82-159V/50/60Hz
Range of holdover time: 51 - 100 hours
Range vaccine storage capacity: 25L - 60L
