Product Details
Product name

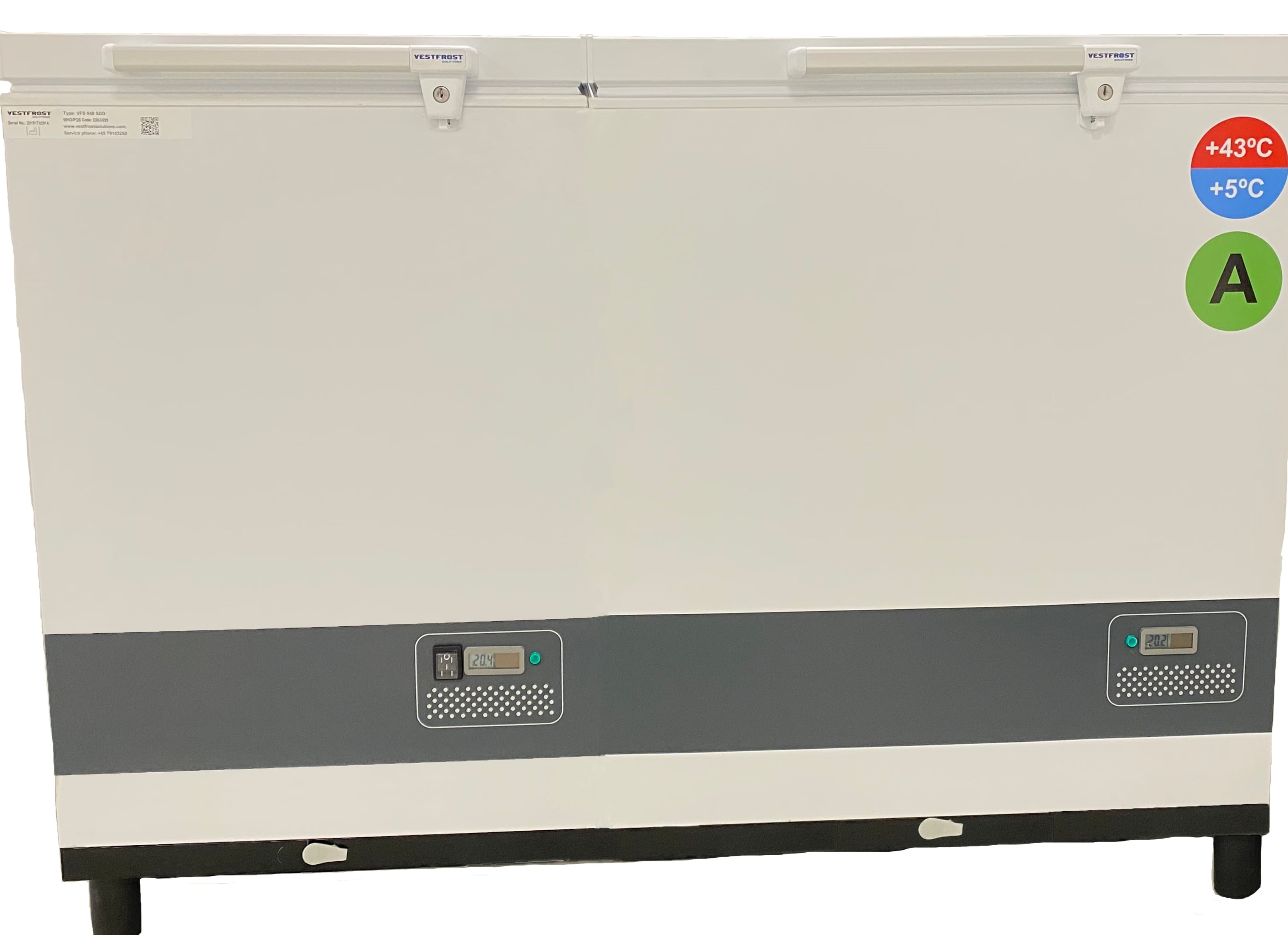

VLS 076 RF SDD
IMD-PQS Code
E003-119
Status
Prequalified
Date of acceptance
02 Feb 2021
Appliance type
E003
Product description
Solar direct drive combined refrigerator/freezer
Manufacturer
Vestfrost Solutions
Manufacturer Reference
VLS 076 RF SDD
Country of Manufacture
Denmark
Address
A/S Vestfrost Falkevej 12
Esbjerg Ø
Syddanmark
Denmark
Esbjerg Ø
Syddanmark
Denmark
Telephone
+45 7914 2527
Website address
Valid until
31 Dec 2025
Specifications
Product specifications - Main
Climate zone
Hot
Minimum rated ambient temperature (°C)
5.00
Freeze protection
Grade A
External dimensions length (mm)
650.00
External dimensions width (mm)
1280.00
External dimensions height (mm)
960.00
Performance at" (°C)
43.00
Fuel and refrigeration cycle
Electric - compression
Energy source
Solar direct drive
Lining
Ice-lined
Energy Consumption During Freezing (kWh/24h)
1.0800
Energy Consumption Intermittent Power (kWh/24h)
0.4330
Energy Consumption Cool Down (kWh/24h)
1.0600
Energy Consumption Continuous Power (kWh/24h)
0.4370
Product specifications - Additional Refrigerator
Refrigerator vaccine storage capacity(L)
61.250
Refrigerator's gross volume (Litres)
111.000
Autonomy (hrs:mn)
89:32
Refrigerant type
R600a
Solar radiation ref period (kWh/m2/day)
3.50
Product specifications - Additional Freezer
Freezer's gross volume (Litres)
34.30
List of accessories
Vaccine storage top basket; Bottom grating; 30 day electronic temperature logger; Self regulating temperature control; Electronic temperature reading; 2 x Keys; Instruction manual in 6 UN languages; Technical manual in 6 UN languages
List of spare parts, Reference & Price
Comporssor (BD35K 101Z0211) 10-45V - 8-036510223
Thermostat refrigerator (Dixell) - 7095178
Thermostat freezer (Ranco) - 6520038
Fan Set refrigerator - 7090403
Fan Set freezer - 7030823
PV Thermometer - 7020392-03
Thermostat refrigerator (Dixell) - 7095178
Thermostat freezer (Ranco) - 6520038
Fan Set refrigerator - 7090403
Fan Set freezer - 7030823
PV Thermometer - 7020392-03
Price and shipping
Shipping volume (m3)
1.15
Shipping weight (kg)
157.00
Incoterms
EXW
Price 1
EUR 5177
Year of base price
2021
Quality standard
Quality Standard
Other
Quality standard (Other)
ISO 9001:2008
Specification Reference
Applicable PQS specification: E003/RF05.6
Applicable PQS VP(s): E003/RF05-VP.6
Applicable PQS VP(s): E003/RF05-VP.6
Verification
Verification Laboratory
Danish Technological Institute
Address
Gregersensvej DK-2630 Taastrup Danemark
Denmark
Denmark
Telephone
+45 72202472
Product Sites
Vestfrost Solutions
A/S Vestfrost Falkevej 12
Esbjerg Ø,
Syddanmark
DK-6705
Denmark
Document Details
Unit equipped with unique QR code, that can be used along Vestfrost Solutions Unit tracker APP, containing various installation/service features.
As an option the appliance can be supplied with Vestfrost in-built RTMD; with following features:
1: 5” touch display 2: 3X internal temp. sensors 3: ambient temp. 4: compressor sensor 5: humidity sensor 6: lid opening alarm 7: GPS coordinates via Google maps 8: 1X USB 5V solar harvesting port. All data collected/logged is automatic via GPRS uploaded to Vestfrost RTMD performance data-portal, and/or can be accessed onsite from the touch screen menu.
Range of holdover time: 51 - 100 hours
Waterpack freezing capacity: 3 x 0.6 L Waterpacks per/24h
Waterpack storage capacity: 29 x 0.6 L
Waterpacks
