E003-118

SF - Immunization Devices
Download file
E003-118.pdf
E003-118.json
Product Details
Product name

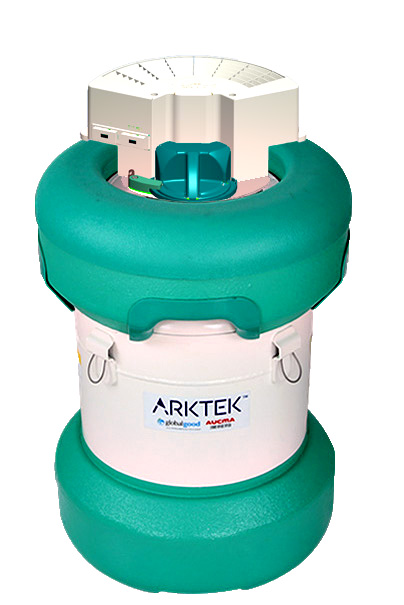

ARKTEK YBC-10 SDD
IMD-PQS Code
E003-118
Status
Prequalified
Date of acceptance
20 Oct 2020
Appliance type
E003
Product description
Solar Direct Drive Refrigerator
Manufacturer
Qingdao Aucma Global Medical Co.,Ltd.
Manufacturer Reference
ARKTEK YBC-10 SDD
Country of Manufacture
China
Address
315 Qianwangang Road, Economic &Technological Development Zone, Qingdao, China
China
Telephone
+86 532 86763602
Email
lishouda@aucma.com.cn
Website address
www.aucmamedicalglobal.com
Valid until
31 Dec 2025
Specifications

Product specifications - Main

Minimum rated ambient temperature (°C)
5.00
Freeze protection
Grade A
External dimensions width (mm)
52.80
External dimensions height (mm)
86.00
Appliance tested at (°C)
43.00
Performance at" (°C)
43.00
Fuel and refrigeration cycle
Electric - compression
Energy source
Solar direct drive
Lining
PCM
Energy Consumption Cool Down (kWh/24h)
0.3000
Energy Consumption Continuous Power (kWh/24h)
0.2400

Product specifications - Additional Refrigerator

Refrigerator vaccine storage capacity(L)
10.000
Refrigerator's gross volume (Litres)
15.000
Autonomy (hrs:mn)
72:00
Solar radiation ref period (kWh/m2/day)
3.50

Product specifications - Additional Freezer

Waterpack freezing capacity (Kg/24 hrs)
0.00
Waterpack storage capacity (Litres)
0.00
Comments
"The ARKTEK YBC-10 SDD provides safe, solar-powered vaccine storage for health facilities that have minimal or no mains power, and extreme ambient temperatures. It can keeps vaccines cold with no risk of freezing through 3+ day periods with inadequate sunlight. Included 200W PV modules and pole PV mounting rack with 20m wiring and 1.5m ground rod. Included energy harvesting outputs with 5V USB (2A)
Integrated 30-day electronic refrigerator temperature logger stores and displays temperature."




Range of holdover time: 51 - 100 hours
List of accessories
6 vaccine stacks; documentation;
List of spare parts, Reference & Price
"Thermoelectric cooler 1 EA
Electronic control board 1 SET"

Price and shipping

Incoterms
EXW
Price 1
$3,550
Year of base price
2020

Quality standard

Quality Standard
Other
Quality standard (Other)
ISO 9001:2008
Specification Reference
Applicable PQS specification: PQS/E003/RF05.5
Applicable PQS VP(s): E003/RF05-VP.4

Verification

Verification Laboratory
0013X00004Ml8OhQAJ
Verification Report Reference
WB-19-369
Product Sites
Qingdao Aucma Global Medical Co.,Ltd.
315 Qianwangang Road, Economic &Technological Development Zone, Qingdao, China
China
