Product Details
Product name
HTC-120-SDD
IMD-PQS Code
E003-116
Status
Prequalified
Date of acceptance
06 Sep 2020
Appliance type
E003
Product description

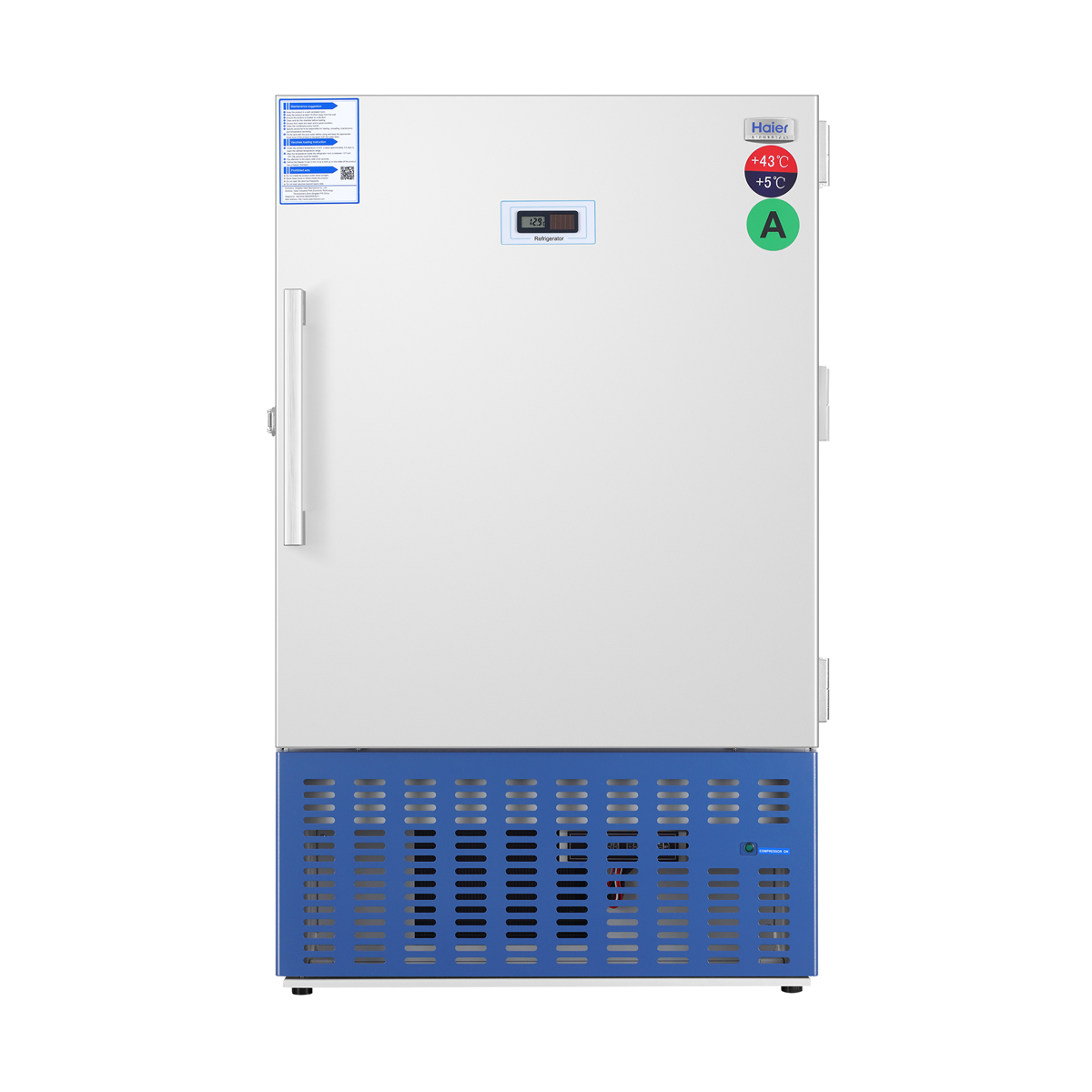

Solar Direct Drive Refrigerator
Manufacturer
Qingdao Haier Biomedical Co., Ltd
Manufacturer Reference
HTC-120-SDD
Country of Manufacture
China
Address
No.280 Fengyuan Road High-tech Zone
Qingdao
Shandong
China
Qingdao
Shandong
China
Telephone
+86-15066227057
Website address
Valid until
31 Dec 2025
Specifications
Product specifications - Main
Minimum rated ambient temperature (°C)
5.00
Freeze protection
Grade A
External dimensions length (mm)
1425.00
External dimensions width (mm)
825.00
External dimensions height (mm)
865.00
Performance at" (°C)
43.00
Fuel and refrigeration cycle
Electric - absorption
Energy source
Solar direct drive
Lining
Ice-lined
Energy Consumption Intermittent Power (kWh/24h)
0.4400
Energy Consumption Cool Down (kWh/24h)
0.4800
Product specifications - Additional Refrigerator
Refrigerator vaccine storage capacity(L)
100.000
Refrigerator's gross volume (Litres)
120.000
Autonomy (hrs:mn)
112.24
Refrigerant type
R600a
Solar radiation ref period (kWh/m2/day)
3.50
Product specifications - Additional Freezer
Freezer type
N/A
Comments
Optional: Remote temperature monitoring device
List of accessories
Keys, Handle component, 30 days Data logger
List of spare parts, Reference & Price
Included in the UNICEF Supply Division spare parts kit:
1 No. Display - Part No. 0274000357
1 No. Indicator - Part No. 0074000574
1 No. Fan Set - Part No.0274000351
1 No. Compressor BD-35K - Part No. 0274000118A
1 No. Compressor controller (E-Box) - Part No. 0274000118FJ
1 No. Thermostat - Part No. 0274000352
1 No. Main Switch - Part No. 0274000354B
1 No. USB charging port - Part No. 0274000389
1 No. Dry filter - Part No. 0074180002A
1 No. Thermo sensor - Part No. 0274000353
1 No. Thermo sensor - Part No. 0274000358
2 No. Sticker - Part No. 0270501015A
Other parts are available as spares on request.
1 No. Display - Part No. 0274000357
1 No. Indicator - Part No. 0074000574
1 No. Fan Set - Part No.0274000351
1 No. Compressor BD-35K - Part No. 0274000118A
1 No. Compressor controller (E-Box) - Part No. 0274000118FJ
1 No. Thermostat - Part No. 0274000352
1 No. Main Switch - Part No. 0274000354B
1 No. USB charging port - Part No. 0274000389
1 No. Dry filter - Part No. 0074180002A
1 No. Thermo sensor - Part No. 0274000353
1 No. Thermo sensor - Part No. 0274000358
2 No. Sticker - Part No. 0270501015A
Other parts are available as spares on request.
Price and shipping
Shipping volume (m3)
1.44
Shipping weight (kg)
160.00
Incoterms
EXW
Price 1
1-100units USD 3628
Price 2
>100units USD 3550
Year of base price
2021
Quality standard
Quality Standard
Other
Quality standard (Other)
ISO 9001:2008
Specification Reference
Applicable PQS specification:
Applicable PQS VP(s):
Applicable PQS VP(s):
Verification
Verification Laboratory
0013X00004Ml8OhQAJ
Verification Report Reference
WB-19-474
Product Sites
Qingdao Haier Biomedical Co., Ltd
No.280 Fengyuan Road High-tech Zone
Qingdao,
Shandong
266109
China
