Product Details
Product name
HBC-120
IMD-PQS Code
E003-114
Status
Prequalified
Date of acceptance
06 Sep 2020
Appliance type
E003
Product description

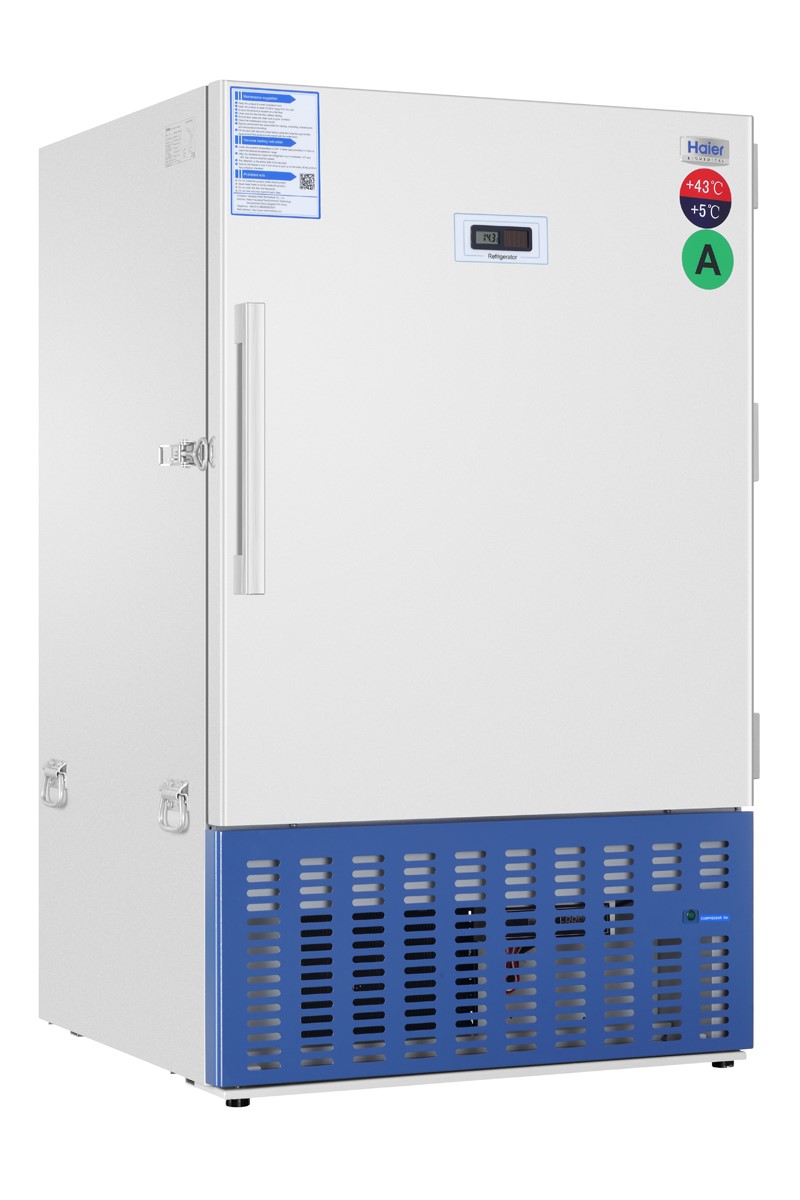

Ice-lined Refrigerator
Manufacturer
Qingdao Haier Biomedical Co., Ltd
Manufacturer Reference
HBC-120
Country of Manufacture
China
Address
No.280 Fengyuan Road High-tech Zone
Qingdao
Shandong
China
Qingdao
Shandong
China
Telephone
+86-15066227057
Website address
Valid until
31 Dec 2025
Specifications
Product specifications - Main
Climate zone
Hot
Minimum rated ambient temperature (°C)
5.00
Freeze protection
Grade A
External dimensions length (mm)
1425.00
External dimensions width (mm)
829.00
External dimensions height (mm)
890.00
Performance at" (°C)
43.00
Fuel and refrigeration cycle
Electric - compression
Energy source
Electric Mains 220-240V 50/60Hz
Lining
Ice-lined
Energy Consumption Intermittent Power (kWh/24h)
0.2500
Energy Consumption Cool Down (kWh/24h)
0.3500
Energy Consumption Continuous Power (kWh/24h)
0.4000
Product specifications - Additional Refrigerator
Refrigerator vaccine storage capacity(L)
100.000
Refrigerator's gross volume (Litres)
120.000
Autonomy (hrs:mn)
128.48
Refrigerant type
R600a
Solar radiation ref period (kWh/m2/day)
1.00
Product specifications - Additional Freezer
Freezer type
N/A
List of accessories
Keys, Handle component, 30 days Data logger
List of spare parts, Reference & Price
Included in the UNICEF Supply Division spare parts kit:
1 No. Compressor-0060705994A
1 No. Fan 0274000542
1 No. Thermostat 0274000352A
1 No. Dry filter Part-0074180002A
1 No. Switch 0075050003
2 No. Indicator 0075050018
2 No. Displayer 0274000357
2 No. overload protector 0274300008B
1 No. Thermo sensor-0274000353
1 No. Thermo sensor-0274000358
1 No. Sticker-0270501015A
Other parts are available as spares on request.
1 No. Compressor-0060705994A
1 No. Fan 0274000542
1 No. Thermostat 0274000352A
1 No. Dry filter Part-0074180002A
1 No. Switch 0075050003
2 No. Indicator 0075050018
2 No. Displayer 0274000357
2 No. overload protector 0274300008B
1 No. Thermo sensor-0274000353
1 No. Thermo sensor-0274000358
1 No. Sticker-0270501015A
Other parts are available as spares on request.
Price and shipping
Shipping volume (m3)
1.44
Shipping weight (kg)
160.00
Incoterms
EXW
Price 1
1-100units USD 1800
Price 2
>100units USD 1785
Year of base price
2021
Quality standard
Quality Standard
Other
Quality standard (Other)
ISO 9001:2008
Specification Reference
Applicable PQS specification:
Applicable PQS VP(s):
Applicable PQS VP(s):
Verification
Verification Laboratory
CHEARI
Address
#29 Xia Jie Street, Xuan Wu district Beijing 100053 R. P. de Chine
China
China
Telephone
+86 1063162443
Email
Verification Report Reference
WB-19-473
Product Sites
Qingdao Haier Biomedical Co., Ltd
No.280 Fengyuan Road High-tech Zone
Qingdao,
Shandong
266109
China
Document Details
(Price not include: Voltage regulator);
Range of holdover time: 101 - 250 hours
Range vaccine storage capacity: 90L - 150L
