Product Details
Product name
VLS 504A AC
IMD-PQS Code
E003-113
Status
Prequalified
Date of acceptance
10 Feb 2019
Appliance type
E003

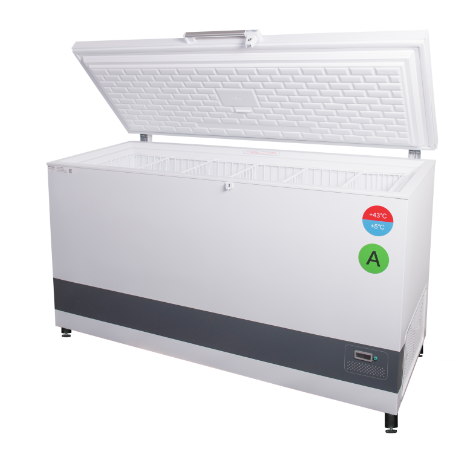

Product description
Ice-lined Refrigerator
Manufacturer
Vestfrost Solutions
Manufacturer Reference
VLS 504A AC
Country of Manufacture
Denmark
Address
A/S Vestfrost Falkevej 12
Esbjerg Ø
Syddanmark
Denmark
Esbjerg Ø
Syddanmark
Denmark
Telephone
+45 7914 2527
Website address
Valid until
31 Dec 2025
Specifications
Product specifications - Main
Climate zone
Hot
Minimum rated ambient temperature (°C)
5.00
Freeze protection
Grade A
Hold over time (hours:mn)
55:16
External dimensions length (mm)
700.00
External dimensions width (mm)
1563.00
External dimensions height (mm)
845.00
Performance at" (°C)
43.00
Fuel and refrigeration cycle
Electric - compression
Energy source
Electric Mains 220-240V 50/60Hz or Electric Mains 115/60Hz optional;Electric Mains 115/60Hz
Lining
Ice-lined
Energy Consumption Intermittent Power (kWh/24h)
0.5910
Energy Consumption Continuous Power (kWh/24h)
0.6380
Product specifications - Additional Refrigerator
Refrigerator vaccine storage capacity(L)
242.000
Refrigerator's gross volume (Litres)
314.000
Refrigerant type
R600a
Solar radiation ref period (kWh/m2/day)
1.00
Product specifications - Additional Freezer
Freezer type
N/A
List of accessories
6 x Vaccine storage top basket; 4 x Vaccine bottom basket; 1 x Bottom grating; 1 x Voltage stabilizer; 1 x 30 day electronic temperature logger; 1 x Holder for temperature logger; Self-regulating temperature control; Electronic temperature reading; 2 x Keys; Instruction manual in 6 UN languages; Technical manual in 6 UN languages; Plywood packing/crate
List of spare parts, Reference & Price
Included in the UNICEF Supply Division spare parts kit:
1 X Compressor (HXK12AT Complete ) - Part No. 8-03606510309
1 X Thermostat Dixell XR30CH - Part No. 702090042
1 X Thermometer, solar, Part No.7020392-03
1 X Voltage stabilizer controller Part No. 7020475
Other parts are available as spares on request.
1 X Compressor (HXK12AT Complete ) - Part No. 8-03606510309
1 X Thermostat Dixell XR30CH - Part No. 702090042
1 X Thermometer, solar, Part No.7020392-03
1 X Voltage stabilizer controller Part No. 7020475
Other parts are available as spares on request.
Price and shipping
Shipping volume (m3)
1.16
Shipping weight (kg)
150.00
Incoterms
EXW
Price 1
1 – 99 units:
Year of base price
2018
Quality standard
Quality Standard
Other
Quality standard (Other)
ISO 9001:2008
Specification Reference
Applicable PQS specification: E003/RF03.4
Applicable PQS VP(s): E003/RF03-VP.4
Applicable PQS VP(s): E003/RF03-VP.4
Verification
Verification Laboratory
Danish Technological Institute
Address
Gregersensvej DK-2630 Taastrup Danemark
Denmark
Denmark
Telephone
+45 72202472
Verification Report Reference
300-KLAB-17-179
Product Sites
Vestfrost Solutions
A/S Vestfrost Falkevej 12
Esbjerg Ø,
Syddanmark
DK-6705
Denmark
Document Details

Electrical components positioned in corrosion free metal junction box, protecting for water, dust intrusion, and eases service/maintenance.
For easy customization to local standard plug, supplied with appliance power in-let + appliance power plug/cable.
Supplied with adjustable legs, elevating appliance to protect against water/rubbish etc.
VLS 504A AC model is supplied with internal voltage stabilizer for extended input range, incl. high, low, spike and surge protection in line with E007/VS01-VP.5
For 220-240V/50/60Hz, input voltage regulation range 110-278V/50/60Hz
For 100-127V/50/60Hz, input voltage regulation range 82-159V/50/60Hz
As an option the appliance can be supplied with Vestfrost in-built RTMD; with following features:
1: 5” touch display 2: 3X internal temp. sensors 3: ambient temp. 4: compressor sensor 5: humidity sensor 6: lid opening alarm 7: GPS coordinates via Google maps 8: 1X USB 5V solar harvesting port. All data collected/logged is automatic via GPRS uploaded to Vestfrost RTMD performance data-portal, and/or can be accessed onsite from the touch screen menu.
PQS number: E003/113
EnergyConsump.IntermittentPower(kWh/24h): 1.3520.591
EnergyConsump.ContinuousPower(kWh/24h): 0.638
