Product Details
Product name
VLS 204A
IMD-PQS Code
E003-109
Status
Prequalified
Date of acceptance
10 Feb 2019
Appliance type
E003
Product description

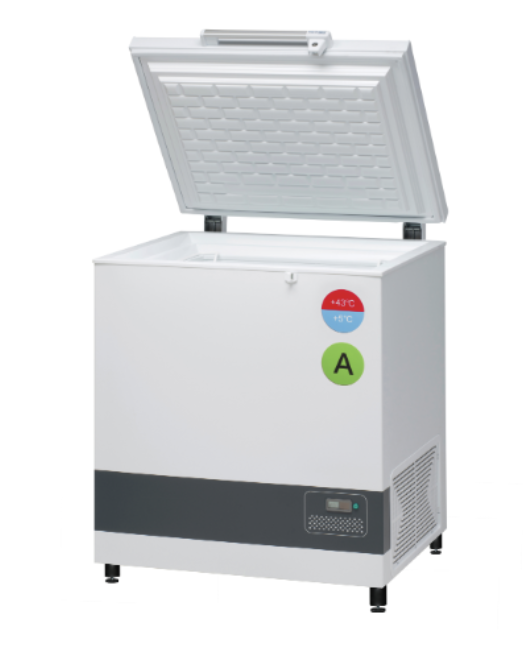

Ice-lined refrigerator
Manufacturer
Vestfrost Solutions
Manufacturer Reference
VLS 204A
Country of Manufacture
Denmark
Address
A/S Vestfrost Falkevej 12
Esbjerg Ø
Syddanmark
Denmark
Esbjerg Ø
Syddanmark
Denmark
Telephone
+45 7914 2527
Website address
Valid until
31 Dec 2025
Specifications
Product specifications - Main
Minimum rated ambient temperature (°C)
5.00
Freeze protection
Grade A
Hold over time (hours:mn)
54
External dimensions length (mm)
700.00
External dimensions width (mm)
730.00
External dimensions height (mm)
850.00
Performance at" (°C)
43.00
Fuel and refrigeration cycle
Electric - compression
Energy source
Electric Mains 220-240V 50/60Hz
Lining
Ice-lined
Energy Consumption Cool Down (kWh/24h)
0.5800
Energy Consumption Continuous Power (kWh/24h)
0.5700
Product specifications - Additional Refrigerator
Refrigerator vaccine storage capacity(L)
60.000
Refrigerator's gross volume (Litres)
113.000
Refrigerant type
R600a
Solar radiation ref period (kWh/m2/day)
1.00
List of accessories
2 x Vaccine storage top basket; 1 x Vaccine bottom basket; 1 x Bottom grating; 1 x Voltage stabilizer; 1 x 30 day electronic temperature logger; Self-regulating temperature control; Electronic temperature reading; 2 x Keys; Instruction manual in 6 UN languages; Technical manual in 6 UN languages; Plywood packing/crate
List of spare parts, Reference & Price
Included in the UNICEF Supply Division spare parts kit:
1 X Compressor (HXK80AT Complete ) - Part No.8-036510018
1 X Thermostat Dixell XR30CH - Part No. 702090042
1 X Thermometer, solar, Part No.7020392-03Spare parts to be revised accordingly
1 X Compressor (HXK80AT Complete ) - Part No.8-036510018
1 X Thermostat Dixell XR30CH - Part No. 702090042
1 X Thermometer, solar, Part No.7020392-03
1 X Voltage stabilizer controller Part No. 7020475
Other parts are available as spares on request.
1 X Compressor (HXK80AT Complete ) - Part No.8-036510018
1 X Thermostat Dixell XR30CH - Part No. 702090042
1 X Thermometer, solar, Part No.7020392-03Spare parts to be revised accordingly
1 X Compressor (HXK80AT Complete ) - Part No.8-036510018
1 X Thermostat Dixell XR30CH - Part No. 702090042
1 X Thermometer, solar, Part No.7020392-03
1 X Voltage stabilizer controller Part No. 7020475
Other parts are available as spares on request.
Price and shipping
Shipping volume (m3)
0.58
Shipping weight (kg)
70.00
Incoterms
FCA
Price 1
1-99 units: 919 €
Year of base price
2020
Quality standard
Quality Standard
Other
Quality standard (Other)
ISO 9001:2008;ISO 14001;DS/OHSAS 18001:2008
Specification Reference
Applicable PQS specification: E003/RF03
Applicable PQS VP(s): E003/RF03-VP
Applicable PQS VP(s): E003/RF03-VP
Verification
Verification Laboratory
Danish Technological Institute
Address
Gregersensvej DK-2630 Taastrup Danemark
Denmark
Denmark
Telephone
+45 72202472
Verification Report Reference
BOM No: 1-n113
Product Sites
Vestfrost Solutions
A/S Vestfrost Falkevej 12
Esbjerg Ø,
Syddanmark
DK-6705
Denmark
Document Details
Equipped with unique QR code that can be used with Vestfrost Solutions Unit tracker APP,containing various installation/service features.
Electrical components positioned in corrosion free metal junction box, protecting for water, dust intrusion, and eases service/maintenance.
For easy customization to local standard plug, supplied with appliance power in-let + appliance power plug/cable.
Supplied with adjustable legs, elevating appliance to protect against water/rubbish etc.
VLS 204A AC model is supplied with internal voltage stabilizer for extended input range, incl. high, low, spike and surge protection in line with E007/VS01-VP.5
For 220-240V/50/60Hz, input voltage regulation range 110-278V/50/60Hz
For 100-127V/50/60Hz, input voltage regulation range 82-159V/50/60Hz
As an option the appliance can be supplied with Vestfrost in-built RTMD; with following features:
1: 5” touch display 2: 3X internal temp. sensors 3: ambient temp. 4: compressor sensor 5: humidity sensor 6: lid opening alarm 7: GPS coordinates via Google maps 8: 1X USB 5V solar harvesting port. All data collected/logged is automatic via GPRS uploaded to Vestfrost RTMD performance data-portal, and/or can be accessed onsite from the touch screen menu.
Range of holdover time: 51 - 100 hours
Range vaccine storage capacity: 60L - 90L
