Product Details

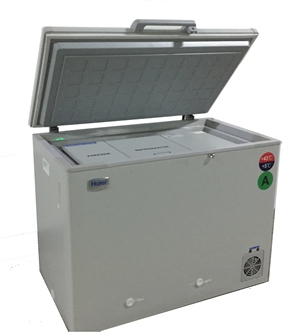

Product name
HBCD-90
IMD-PQS Code
E003-097
Status
Prequalified
Date of acceptance
16 Oct 2018
Appliance type
E003
Product description
Combined Refrigerator and waterpack freezer
Manufacturer
Qingdao Haier Biomedical Co., Ltd
Manufacturer Reference
HBCD-90
Country of Manufacture
China
Address
No.280 Fengyuan Road High-tech Zone
Qingdao
Shandong
China
Qingdao
Shandong
China
Telephone
+86-15066227057
Website address
Valid until
31 May 2026
Specifications
Product specifications - Main
Climate zone
Hot
Minimum rated ambient temperature (°C)
5.00
Freeze protection
Grade A
Hold over time (hours:mn)
63:48
External dimensions length (mm)
717.00
External dimensions width (mm)
1128.00
External dimensions height (mm)
872.00
Performance at" (°C)
43.00
Fuel and refrigeration cycle
Electric - compression
Energy source
Electric Mains 220-240V 50/60Hz
Lining
PCM
Energy Consumption During Freezing (kWh/24h)
0.9700
Energy Consumption Intermittent Power (kWh/24h)
0.5700
Energy Consumption Cool Down (kWh/24h)
0.6600
Energy Consumption Continuous Power (kWh/24h)
0.7000
Product specifications - Additional Refrigerator
Refrigerator vaccine storage capacity(L)
30.000
Refrigerator's gross volume (Litres)
42.000
Refrigerant type
R600a
Product specifications - Additional Freezer
Freezer type
Rapid water-pack freezer
Freezer's gross volume (Litres)
32.00
Waterpack freezing capacity (Kg/24 hrs)
4.00
Waterpack storage capacity (Litres)
16.00
List of accessories
"Keys 2
Handle attachment 1
Refiller 1
Corrosion inhibitors 1
Defroster spade 1"
Handle attachment 1
Refiller 1
Corrosion inhibitors 1
Defroster spade 1"
List of spare parts, Reference & Price
Included in the UNICEF Supply Division spare parts kit:
1 No. Dry filter - Part No. 0074180001
2 No. overload protector - Part No. 0274300008B
1 No. Switch - Part No. 0075050003
1 No. Thermo sensor - Part No. 0274000353A
1 No. Thermo sensor - Part No. 0274000358
2 No. Sticker - Part No. 0270501015C
1 No. Thermostat - Part No. 0274000352A
1 No. Compressor - Part No. 0274000418
1 No. Fan - Part No. 0074000172
2 No. Indicator - Part No. 0075050018
2 No. Displayer - Part No. 0274000357
Other parts are available as spares on request.
1 No. Dry filter - Part No. 0074180001
2 No. overload protector - Part No. 0274300008B
1 No. Switch - Part No. 0075050003
1 No. Thermo sensor - Part No. 0274000353A
1 No. Thermo sensor - Part No. 0274000358
2 No. Sticker - Part No. 0270501015C
1 No. Thermostat - Part No. 0274000352A
1 No. Compressor - Part No. 0274000418
1 No. Fan - Part No. 0074000172
2 No. Indicator - Part No. 0075050018
2 No. Displayer - Part No. 0274000357
Other parts are available as spares on request.
Price and shipping
Shipping volume (m3)
0.99
Shipping weight (kg)
135.00
Incoterms
FCA
Price 1
USD 1575
Year of base price
2021
Quality standard
Quality Standard
Other
Quality standard (Other)
ISO 9001:2008
Specification Reference
Applicable PQS specification: E003/RF03.4
Applicable PQS VP(s): E003/RF03-VP.4
Applicable PQS VP(s): E003/RF03-VP.4
Verification
Verification Laboratory
0013X00004Ml8OhQAJ
Verification Report Reference
WB-18-448
Product Sites
Qingdao Haier Biomedical Co., Ltd
No.280 Fengyuan Road High-tech Zone
Qingdao,
Shandong
266109
China
Document Details
Price not include: Voltage regulator
Freezer net volume: < 50 L
Range of holdover time: 51 - 100 hours
