SF - Immunization Devices
Product Details
WHO Product ID
E003-095
Status
Prequalified
Date of acceptance
Type
E003: Refrigerators and freezers
Product Desc

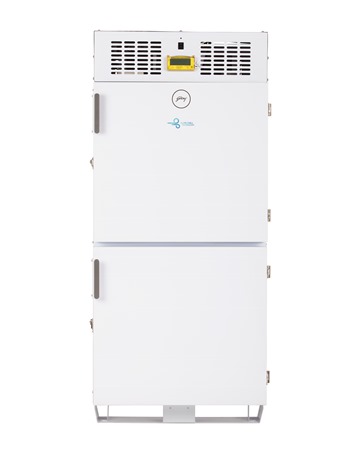

Solar Direct Drive Refrigerator and Freezer
Appliance Type
E003
Manufacturer
Godrej & Boyce MFG. Co. Ltd.
Plant 01, Pirojshanagar, Vikhroli West Mumbai 400 079 India
India
Valid until
Specifications
Product identification
Manufacturers Reference
GVR 55 FF DC
Country of Manufacture
India
Product specifications - Main
Climate zone
Hot
Minimum rated ambient temperature (°C)
10.00
Performance at" (°C)
43.00
Fuel and refrigeration cycle
Electric - compression
Energy source
Solar direct drive
EnergyConsump.DuringFreezing(kWh/24h)
2.00
External dimensions length (mm)
750.00
Energy consumption (cool down) (kWh/24h)
2.04
External dimensions width (mm)
795.00
External dimensions height (mm)
1830.00
Product specifications - Additional Refrigerator
Refrigerator vaccine storage capacity(L)
58.00
Refrigerant type
R290
Refrigerator's gross volume (Litres)
90.00
Solar radiation ref period (kWh/m2/day)
3.50
Product specifications - Additional Freezer
Waterpack freezing capacity (Kg/24 hrs)
2.40
Waterpack storage capacity (Litres)
14.40
Freezer's gross volume (Litres)
44.00
List of accessories
Included in price: 2 wire shelves; 1 Padlock; 1 Funnel, plywood packaging, Surge Protector, 30 days temperature monitoring system.
Optional (charged extra): Extra wire shelves", RTMD (E006/036), Energy harvesting system.
Optional (charged extra): Extra wire shelves", RTMD (E006/036), Energy harvesting system.
Price and shipping
Shipping volume (m3)
1.73
Price 1
1-99 units - 5995 USD
Shipping weight (kg)
380.00
Price 2
100-199 units: 5875 USD
Year of base price
2018
Incoterms
EXW
Quality standard
Quality Standard
ISO 13485;Other
Specification Reference
Applicable PQS specification: E003/RF05.5
Applicable PQS VP(s): E003/RF05-VP.5
Applicable PQS VP(s): E003/RF05-VP.5
Quality standard (Other)
ISO 9001:2008;
Verification
Verification Report Reference
CE-JOB-DEL-16-0000501-41
Product Sites
Godrej & Boyce MFG. Co. Ltd.
Plant 01, Pirojshanagar, Vikhroli West Mumbai 400 079 India
India
Document Details
(ii) Has a built in intelligent temperature control, early warning and energy management system
(iii) Unit requires addition of clean drinking water during installation, contact manufacturer for
information
(iv) Price includes solar array (1000 W, 24V solar panels) and 'plug & play' system/structure"
Range vaccine storage capacity: 25L - 60L
