E003-093

SF - Immunization Devices
Download file
E003-093.pdf
E003-093.json
Product Details
Product name

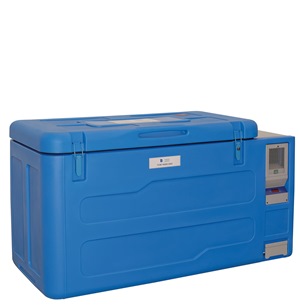

TCW 4000 SDD
IMD-PQS Code
E003-093
Status
Prequalified
Date of acceptance
13 Jun 2018
Appliance type
E003
Product description
Solar Direct Drive Refrigerator
Manufacturer
B Medical Systems Sarl
Manufacturer Reference
TCW 4000 SDD
Country of Manufacture
Luxembourg
Address
17 Op der Hei L-9809 Hosingen Luxembourg
Luxembourg
Telephone
+ 35 2 92 07 311
Email
info@bmedicalsystems.com
Website address
www.bmedicalsystems.com
Valid until
31 Dec 2025
Specifications

Product specifications - Main

Climate zone
Hot
Minimum rated ambient temperature (°C)
5.00
Freeze protection
Grade A
Hold over time (hours:mn)
91:16
External dimensions length (mm)
780.00
External dimensions width (mm)
1625.00
External dimensions height (mm)
915.00
Appliance tested at (°C)
43.00
Performance at" (°C)
43.00
Fuel and refrigeration cycle
Electric - compression
Energy source
Solar direct drive
Lining
Ice-lined
Energy Consumption Intermittent Power (kWh/24h)
0.8300
Energy Consumption Continuous Power (kWh/24h)
0.8400

Product specifications - Additional Refrigerator

Refrigerator vaccine storage capacity(L)
220.000
Refrigerator's gross volume (Litres)
249.000
Autonomy (hrs:mn)
91:16
Refrigerant type
R600a
Solar radiation ref period (kWh/m2/day)
3.50
Comments
Prices include the solar generator system : G1=roof fixes; G2=roof adjustable. Includes for the duration of the warranty period contractually agreed: the B Medical Systems RTMD with worldwide communication, real time alarms messages for temperature and open door alerts via SMS / EMAIL, GPS position using Google Maps, access to the webserver performance monitoring; compliant to WHO PQS E006/TR03.2 with one deviation as this RTMD has no integrated display (however the refrigerator has a digital display). This RTMD is exclusively bundled to B Medical Systems refrigerators / freezers.

Includes warranty for 3 or 10 years as the case may be.
For more information and further conditions of warranty, please contact B Medical Systems

Range of holdover time: 51 - 100 hours
List of accessories
6 baskets; lockable lid; 2 spacers; 1 brush; documentation; 1 compass; 2 keys
List of spare parts, Reference & Price
Included in the UNICEF Supply Division spare parts kit:
1 No. Compressor (BD35K Solar) - Part No. 296.9702.09
1 No. Electronic Control Unit (E-box) - Part No. 296.9705.32
1 No. Electronic thermostat/controller - Part No. 296.9768.63
1 No. Fan (12V, 5.0W) - Part No. 292.9960.11
1 No. Drier - Part No. 296.0945.04
1 No. Controller display board - Part No. 296.9769.91
1 No. Sensor - Part No. 296.9805.06

Other parts are available as spares on request.

Price and shipping

Shipping volume (m3)
1.39
Shipping weight (kg)
188.00
Incoterms
EXW
Price 1
> 100 units: G1: 7433 EUR, G2: 8114 EUR
Year of base price
2025

Quality standard

Quality Standard
ISO 13485;Other
Quality standard (Other)
ISO 14001:2015; ISO 9001:2015
Specification Reference
Applicable PQS specification: E003/RF05.4
Applicable PQS VP(s): E003/RF05-VP.4

Verification

Verification Laboratory
CEMAFROID SAS
Address
5 Avenue des Pres CS 20029 F94 266 Fresnes Cedex France
France
Telephone
+33 1 49 84 84 84
Email
gerald.cavalier@cemafroid.fr
Verification Report Reference
WHO 17-005
Product Sites
B Medical Systems Sarl
17 Op der Hei L-9809 Hosingen Luxembourg
Luxembourg
