Product Details
Product name
HBC-150
IMD-PQS Code
E003-088
Status
Prequalified
Date of acceptance
06 Sep 2017
Appliance type
E003
Product description

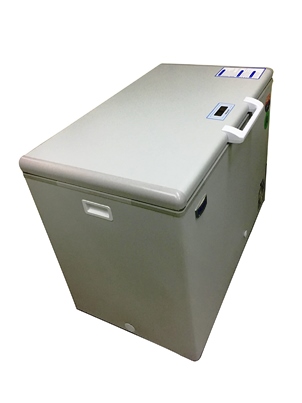

Ice-lined Refrigerator
Manufacturer
Qingdao Haier Biomedical Co., Ltd
Manufacturer Reference
HBC-150
Country of Manufacture
China
Address
No.280 Fengyuan Road High-tech Zone
Qingdao
Shandong
China
Qingdao
Shandong
China
Telephone
+86-15066227057
Website address
Valid until
31 Dec 2025
Specifications
Product specifications - Main
Minimum rated ambient temperature (°C)
5.00
Freeze protection
Grade A
Hold over time (hours:mn)
60:50
External dimensions length (mm)
717.00
External dimensions width (mm)
1128.00
External dimensions height (mm)
872.00
Performance at" (°C)
43.00
Fuel and refrigeration cycle
Electric - compression
Energy source
Electric Mains 220-240V 50/60Hz
Lining
PCM
Energy Consumption Intermittent Power (kWh/24h)
0.6700
Energy Consumption Cool Down (kWh/24h)
0.6200
Energy Consumption Continuous Power (kWh/24h)
0.5400
Product specifications - Additional Refrigerator
Refrigerator vaccine storage capacity(L)
122.000
Refrigerator's gross volume (Litres)
150.000
Refrigerant type
R600a
Solar radiation ref period (kWh/m2/day)
1.00
Product specifications - Additional Freezer
Freezer type
N/A
List of accessories
Accessory?1. Instructions 2. Key 3. Handle component 4. Basket 5. Data logger
List of spare parts, Reference & Price
Included in the UNICEF Supply Division spare parts kit:
1 No. Dry filter - Part No. 0074180001
2 No. overload protector - Part No. 0274300008B
1 No. Switch - Part No. 0075050003
1 No. Thermo sensor - Part No. 0274000353A
1 No. Thermo sensor - Part No. 0274000358
1 No. Thermostat with sensor - Part No. 0274000352A
1 No. Compressor - Part No. 0274000418
1 No. Fan - Part No. 0074000172
2 No. Indicator - Part No. 0075050018
2 No. Displayer - Part No. 0274000357
1 No. Sticker - Part No. 0270501015A
Other parts are available as spares on request.
1 No. Dry filter - Part No. 0074180001
2 No. overload protector - Part No. 0274300008B
1 No. Switch - Part No. 0075050003
1 No. Thermo sensor - Part No. 0274000353A
1 No. Thermo sensor - Part No. 0274000358
1 No. Thermostat with sensor - Part No. 0274000352A
1 No. Compressor - Part No. 0274000418
1 No. Fan - Part No. 0074000172
2 No. Indicator - Part No. 0075050018
2 No. Displayer - Part No. 0274000357
1 No. Sticker - Part No. 0270501015A
Other parts are available as spares on request.
Price and shipping
Shipping volume (m3)
0.99
Shipping weight (kg)
140.00
Price 1
USD 999
Year of base price
2021
Quality standard
Quality Standard
ISO 13485;Other
Quality standard (Other)
ISO 9001:2008;ISO 14001
Specification Reference
Applicable PQS specification: PQS/E003/RF03.2
Applicable PQS VP(s): E003/RF03-VP.2
Applicable PQS VP(s): E003/RF03-VP.2
Verification
Verification Laboratory
0013X00004Ml8OhQAJ
Product Sites
Qingdao Haier Biomedical Co., Ltd
No.280 Fengyuan Road High-tech Zone
Qingdao,
Shandong
266109
China
Document Details
2. 3 baskets
3. Low power consumption
4. Optional: Remote temperature monitoring device
Price does not include voltage regulator
Range vaccine storage capacity: 90L - 150L
