E003-079

SF - Immunization Devices
Download file
Product Details
Product name
CFD-50
IMD-PQS Code
E003-079
Status
Prequalified
Date of acceptance
11 Apr 2016
Appliance type
E003
Product description

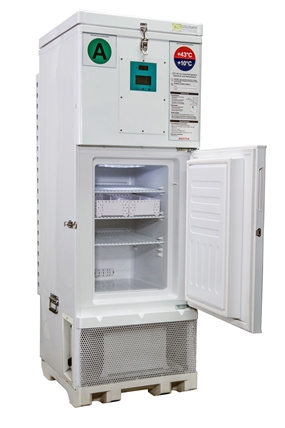

Icelined refrigerator
Manufacturer
Qingdao Aucma Global Medical Co.,Ltd.
Manufacturer Reference
CFD-50
Country of Manufacture
China
Address
315 Qianwangang Road, Economic &Technological Development Zone, Qingdao, China
China
Telephone
+86 532 86763602
Website address
Valid until
31 Dec 2025
Specifications

Product specifications - Main

Climate zone
Hot
Minimum rated ambient temperature (°C)
10.00
Freeze protection
Grade A
Hold over time (hours:mn)
120
External dimensions length (mm)
655.00
External dimensions width (mm)
545.00
External dimensions height (mm)
1588.00
Performance at" (°C)
43.00
Fuel and refrigeration cycle
Electric - compression
Energy source
Electric Mains 220-240V 50/60Hz or Electric Mains 115/60Hz optional;Electric Mains 115/60Hz
Lining
Ice-lined
Energy Consumption Cool Down (kWh/24h)
0.7700
Energy Consumption Continuous Power (kWh/24h)
0.5400

Product specifications - Additional Refrigerator

Refrigerator vaccine storage capacity(L)
50.000
Refrigerator's gross volume (Litres)
68.000
Refrigerant type
R290

Product specifications - Additional Freezer

Freezer type
N/A
Comments
The CFD-50 MetaFridgeTM provides safe vaccine storage for health facilities, even in locations that may experience unstable or minimal mains power and extreme ambient temperatures. The robust design includes an integrated voltage stabilizer that protects MetaFridgeTM from voltage spikes and brownouts that damage refrigerators. Extensively tested ColdSafeTM technology keeps vaccines cold through multi-day power outages with no risk of freezing. The onboard MetaFridgeTM information panel with integrated 30 DTR provides a range of alerts, including low remaining holdover time, to users and remote supervisors.
• Requires only 3 hours of power per 24 hours to maintain full 5-day holdover capacity at 43 °C ambient.
• Includes a built-in surge protection and voltage stabilizer with input range 82-290V. (PQS prequalified in E007/VS01.3)
• Includes a built-in 30-day electronic refrigerator temperature logger that stores and displays temperature and alarm history. (PQS prequalified in E006/TR06.3). MetaFridge also displays remaining holdover time.
• Includes an integrated connection to an optional remote monitoring module that transmits temperature data and other key performance metrics. (Hardware and data services package are PQS prequalified in E006/TR03.2.) Contact manufacturer for additional information.)
• Unit requires the addition of 32 liters of clean drinking water during installation.
More information on ColdSafe™ and other MetaFridge™ technologies is available at www.metafridge.com

Range of holdover time: 101 - 250 hou
Range vaccine storage capacity: 25L - 60L
List of accessories
Included in price: integrated PQS prequalified voltage stabilizer, integrated PQS prequalified 30 DTR, 2 vaccine storage trays; 3 wire shelves; 2 sets of locks & keys; 1 funnel; documentation Optional: additional vaccine trays, remote monitoring module and data services package
List of spare parts, Reference & Price
Included in the UNICEF Supply Division spare parts kit:
1 No. Compressor
1 No. DC fan
1 No. Transformer
1 No. Electronic control unit

Other parts are available as spares on request.

Price and shipping

Shipping volume (m3)
0.77
Shipping weight (kg)
108.00
Incoterms
EXW
Price 1
1 – 99 units: 1,400USD
Price 2
100 or more units: 1,300USD
Year of base price
2016

Quality standard

Quality Standard
Other
Quality standard (Other)
ISO 9001:2008; ISO 14001; OHSAS 18001
Specification Reference
Applicable PQS specification: E003/RF03.2
Applicable PQS VP(s): E003/RF03-VP.2

Verification

Verification Laboratory
0013X00004Ml8OhQAJ
Verification Report Reference
WB-16-217
Product Sites
Qingdao Aucma Global Medical Co.,Ltd.
315 Qianwangang Road, Economic &Technological Development Zone, Qingdao, China
China
