Product Details

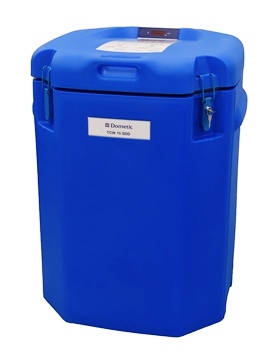

Product name
TCW15 SDD
IMD-PQS Code
E003-077
Status
Prequalified
Date of acceptance
13 Sep 2016
Appliance type
E003
Product description
Solar Direct Drive Refrigerator and Freezer
Manufacturer
B Medical Systems Sarl
Manufacturer Reference
TCW15 SDD
Country of Manufacture
Luxembourg
Address
17 Op der Hei L-9809 Hosingen Luxembourg
Luxembourg
Luxembourg
Telephone
+ 35 2 92 07 311
Email
Website address
Valid until
31 May 2026
Specifications
Product specifications - Main
Climate zone
Hot
Minimum rated ambient temperature (°C)
5.00
Freeze protection
Grade A
External dimensions length (mm)
730.00
External dimensions width (mm)
730.00
External dimensions height (mm)
950.00
Appliance tested at (°C)
43.00
Performance at" (°C)
43.00
Fuel and refrigeration cycle
Electric - compression
Energy source
Solar direct drive
Lining
Ice-lined
Energy Consumption During Freezing (kWh/24h)
0.6900
Energy Consumption Intermittent Power (kWh/24h)
0.4900
Energy Consumption Cool Down (kWh/24h)
0.5000
Energy Consumption Continuous Power (kWh/24h)
0.5000
Product specifications - Additional Refrigerator
Refrigerator vaccine storage capacity(L)
16.000
Refrigerator's gross volume (Litres)
26.500
Autonomy (hrs:mn)
84:00
Refrigerant type
R600a
Solar radiation ref period (kWh/m2/day)
3.50
Product specifications - Additional Freezer
Freezer type
Low energy compression
Freezer's gross volume (Litres)
2.40
Waterpack freezing capacity (Kg/24 hrs)
1.97
Waterpack storage capacity (Litres)
2.40
List of accessories
2 baskets; 4 water-packs 0.6 L; 4 water-pack holders; 2 keys; 1 brush; 2 spacers; documentation; lockable lid; 1 compass
List of spare parts, Reference & Price
Included in the UNICEF Supply Division spare parts kit:
1 No. Compressor (BD35K Solar) - Part No.296.9702.09
1 No. E-box BD35K Solar - Part No.296.9705.32
1 No. Cold Chain Controller - Part No.296.9769.97
1 No. Fan (12V, 4.3W) - Part No.292.9960.13
1 No. Cold Chain Controller Display Board - `Part No. 296.9769.91
1 No. Sensor Icelining - Part No. 296.9804.83
Other parts are available as spares on request.
1 No. Compressor (BD35K Solar) - Part No.296.9702.09
1 No. E-box BD35K Solar - Part No.296.9705.32
1 No. Cold Chain Controller - Part No.296.9769.97
1 No. Fan (12V, 4.3W) - Part No.292.9960.13
1 No. Cold Chain Controller Display Board - `Part No. 296.9769.91
1 No. Sensor Icelining - Part No. 296.9804.83
Other parts are available as spares on request.
Price and shipping
Shipping volume (m3)
0.65
Shipping weight (kg)
95.00
Incoterms
EXW
Price 1
> 100 units: G1: 4923 €; G2: 5260 €
Year of base price
2025
Quality standard
Quality Standard
ISO 13485;Other
Quality standard (Other)
ISO 9001:2015; ISO 14001:2015
Specification Reference
Applicable PQS specification: PQS/E003/RF05.3
Applicable PQS VP(s): E003/RF05-VP.3
Applicable PQS VP(s): E003/RF05-VP.3
Verification
Verification Laboratory
CEMAFROID SAS
Address
5 Avenue des Pres CS 20029 F94 266 Fresnes Cedex France
France
France
Telephone
+33 1 49 84 84 84
Verification Report Reference
WHO 16-014
Product Sites
B Medical Systems Sarl
17 Op der Hei L-9809 Hosingen Luxembourg
Luxembourg
Document Details
Includes warranty for 3 or 10 years as the case may be.
For more information and further conditions of warranty, please contact B Medical Systems
Freezer net volume: < 50 L
Freezing capacity range: < 5 kg/24h
Range of holdover time: 51 - 100 hours
Range vaccine storage capacity: <25L
Range waterpack storage capacity: < 20
Waterpack storage capacity: 4 x 0.6L
