E003-076

SF - Immunization Devices
Download file
E003-076.pdf
E003-076.json
Product Details
Product name

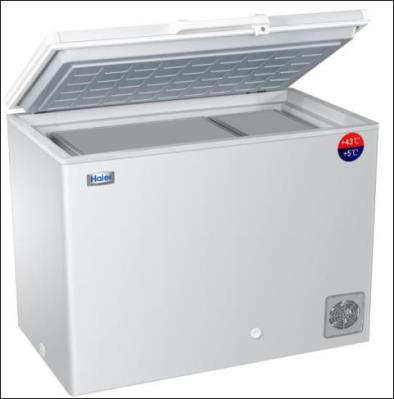

HTC 110 SDD
IMD-PQS Code
E003-076
Status
Prequalified
Date of acceptance
06 Jun 2016
Appliance type
E003
Product description
Solar direct drive refrigerator
Manufacturer
Qingdao Haier Biomedical Co., Ltd
Manufacturer Reference
HTC 110 SDD
Country of Manufacture
China
Address
No.280 Fengyuan Road High-tech Zone
Qingdao
Shandong
China
Telephone
+86-15066227057
Email
tianhui.yu@haierbiomedical.com
Website address
http://www.haiermedical.com
Valid until
31 Dec 2025
Specifications

Product specifications - Main

Climate zone
Hot
Minimum rated ambient temperature (°C)
5.00
Freeze protection
Grade A
Hold over time (hours:mn)
106
External dimensions length (mm)
1128.00
External dimensions width (mm)
875.00
External dimensions height (mm)
720.00
Performance at" (°C)
43.00
Fuel and refrigeration cycle
Electric - compression
Energy source
Solar direct drive
Energy Consumption Continuous Power (kWh/24h)
0.6100

Product specifications - Additional Refrigerator

Refrigerator vaccine storage capacity(L)
59.000
Refrigerator's gross volume (Litres)
110.000
Autonomy (hrs:mn)
96:00
Refrigerant type
R600a
Solar radiation ref period (kWh/m2/day)
3.50

Product specifications - Additional Freezer

Freezer type
N/A
Comments
Prices include solar system; 24V Solar Panel s, comments:Power of
Solar Panel : Specification ref 180W x 2 or 360W x 1;
1. Display: Solar LED Temperature Display
2. 4 baskets
3. Optional: Remote temperature monitoring device

Range of holdover time: 101 - 250 hours
Range vaccine storage capacity: 25L - 60L
List of accessories
4 baskets; manuals; keys
List of spare parts, Reference & Price
Included in the UNICEF Supply Division spare parts kit:
1 No. Display-0274000357
1 No. Indicator Part-0074000574
1 No. Fan Set Part No.0274000351
1 No. Compressor BD-35K?0274000118A?
1 No. Compressor controller (E-Box) Part-0274000118FJ
1 No. Thermostat-0274000352
1 No. Main Switch-0274000354
1 No. USB charging port-0274000389
1 No. Dry filter Part-0074180001
1 No. Thermo sensor-0274000353
1 No. Thermo sensor-0274000358
2 No. Sticker-0270501015A

Price and shipping

Shipping volume (m3)
0.98
Shipping weight (kg)
105.00
Incoterms
FCA
Price 1
USD 3010
Year of base price
2021

Quality standard

Quality Standard
ISO 13485;Other
Quality standard (Other)
ISO 9001:2008;ISO 14001
Specification Reference
Applicable PQS specification: E003/RF05.3
Applicable PQS VP(s): E003/RF05-VP.3

Verification

Verification Laboratory
0013X00004Ml8OhQAJ
Verification Report Reference
WB-16-152
Product Sites
Qingdao Haier Biomedical Co., Ltd
No.280 Fengyuan Road High-tech Zone
Qingdao,
Shandong
266109
China
