Product Details

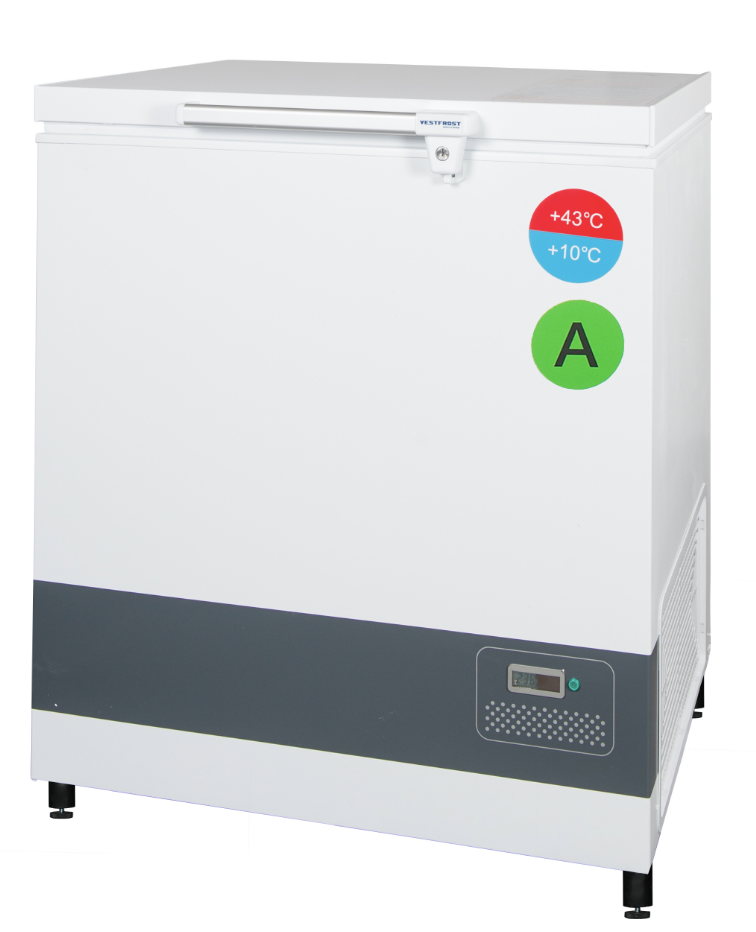

Product name
VLS 064 RF AC
IMD-PQS Code
E003-070
Status
Prequalified
Date of acceptance
04 Aug 2016
Appliance type
E003
Product description
Combined icelined refrigerator/waterpacks freezer
Manufacturer
Vestfrost Solutions
Manufacturer Reference
VLS 064 RF AC
Country of Manufacture
Denmark
Address
A/S Vestfrost Falkevej 12
Esbjerg Ø
Syddanmark
Denmark
Esbjerg Ø
Syddanmark
Denmark
Telephone
+45 7914 2527
Website address
Valid until
31 May 2025
Specifications
Product specifications - Main
Climate zone
Hot
Minimum rated ambient temperature (°C)
10.00
Freeze protection
Grade A
Hold over time (hours:mn)
45:00
External dimensions length (mm)
710.00
External dimensions width (mm)
725.00
External dimensions height (mm)
845.00
Performance at" (°C)
43.00
Fuel and refrigeration cycle
Electric - compression
Energy source
Electric Mains 220-240V 50/60Hz or Electric Mains 115/60Hz optional
Lining
Ice-lined
Energy Consumption During Freezing (kWh/24h)
1.8000
Energy Consumption Cool Down (kWh/24h)
1.5100
Energy Consumption Continuous Power (kWh/24h)
0.6300
Product specifications - Additional Refrigerator
Refrigerator vaccine storage capacity(L)
52.500
Refrigerator's gross volume (Litres)
75.000
Refrigerant type
R600a
Solar radiation ref period (kWh/m2/day)
1.00
Product specifications - Additional Freezer
Freezer type
Low energy compression
Freezer's gross volume (Litres)
5.10
Waterpack freezing capacity (Kg/24 hrs)
1.60
List of accessories
1 x Vaccine storage top basket; 1 x Bottom grating; 1 x Voltage stabilizer; 1 x 30 day electronic temperature logger; 1 x Holder for temperature logger; Self-regulating temperature control; Electronic temperature reading; 2 x Keys; Instruction manual in 6 UN languages; Technical manual in 6 UN languages; Plywood packing/crate
List of spare parts, Reference & Price
Included in the UNICEF Supply Division spare parts kit:
1 X Compressor (HXK80AT Complete) - Part No.8-036510018
1 X Thermostat Dixell XR60CH 230V - Part No. 702090038
1 X Thermostat Dixell XR30CH 230V - Part No. 702090039
1 X Thermometer, solar, Part No.7020382-03
1 X Voltage stabilizer controller Part No. 7020475
Other parts are available as spares on request.
1 X Compressor (HXK80AT Complete) - Part No.8-036510018
1 X Thermostat Dixell XR60CH 230V - Part No. 702090038
1 X Thermostat Dixell XR30CH 230V - Part No. 702090039
1 X Thermometer, solar, Part No.7020382-03
1 X Voltage stabilizer controller Part No. 7020475
Other parts are available as spares on request.
Price and shipping
Shipping volume (m3)
1.58
Shipping weight (kg)
98.00
Incoterms
FCA
Price 1
1-99 units: 1,295 €
Year of base price
2020
Quality standard
Quality Standard
Other
Quality standard (Other)
ISO 9001:2008; ISO 14001
Specification Reference
Applicable PQS specification: E003/RF03.2
Applicable PQS VP(s): E003/RF03-VP.2
Applicable PQS VP(s): E003/RF03-VP.2
Verification
Verification Laboratory
Danish Technological Institute
Address
Gregersensvej DK-2630 Taastrup Danemark
Denmark
Denmark
Telephone
+45 72202472
Verification Report Reference
300-KLAB-15-181
Product Sites
Vestfrost Solutions
A/S Vestfrost Falkevej 12
Esbjerg Ø,
Syddanmark
DK-6705
Denmark
Document Details
Electrical components positioned in corrosion free metal junction box, protecting for water, dust intrusion, and eases service/maintenance.
For easy customization to local standard plug, supplied with appliance power in-let + appliance power plug/cable.
Supplied with adjustable legs, elevating appliance to protect against water/rubbish etc.
VLS 064 RF AC imodel is supplied with internal voltage stabilizer for extended input range, incl. high, low, spike and surge protection in line with E007/VS01-VP.5
For 220-240V/50/60Hz, input voltage regulation range 110-278V/50/60Hz
For 100-127V/50/60Hz, input voltage regulation range 82-159V/50/60Hz
As an option the appliance can be supplied with Vestfrost in-built RTMD; with following features:
1: 5” touch display 2: 3X internal temp. sensors 3: ambient temp. 4: compressor sensor 5: humidity sensor 6: lid opening alarm 7: GPS coordinates via Google maps 8: 1X USB 5V solar harvesting port. All data collected/logged is automatic via GPRS uploaded to Vestfrost RTMD performance data-portal, and/or can be accessed onsite from the touch screen menu.
Freezer net volume: < 50 L
Freezing capacity range: < 5 kg/24h
Range vaccine storage capacity: 60L - 90L
Range waterpack storage capacity: < 20
Waterpack storage capacity: 6 x 0.6L
