Product Details
Product name
VLS 024 SDD
IMD-PQS Code
E003-069
Status
Prequalified
Date of acceptance
04 Aug 2016
Appliance type
E003
Product description

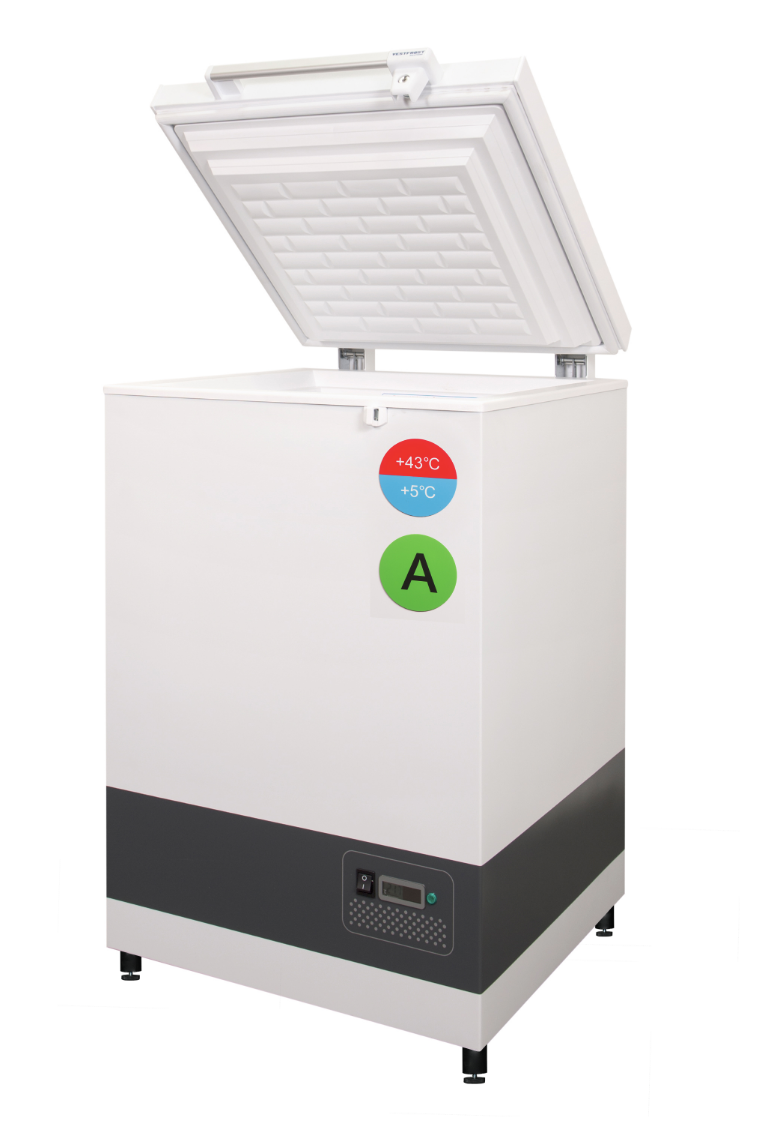

Solar direct drive refrigerator
Manufacturer
Vestfrost Solutions
Manufacturer Reference
VLS 024 SDD
Country of Manufacture
Denmark
Address
A/S Vestfrost Falkevej 12
Esbjerg Ø
Syddanmark
Denmark
Esbjerg Ø
Syddanmark
Denmark
Telephone
+45 7914 2527
Website address
Valid until
31 Dec 2025
Specifications
Product specifications - Main
Climate zone
Hot
Minimum rated ambient temperature (°C)
5.00
Freeze protection
Grade A
Hold over time (hours:mn)
91:17
External dimensions length (mm)
645.00
External dimensions width (mm)
555.00
External dimensions height (mm)
830.00
Performance at" (°C)
43.00
Fuel and refrigeration cycle
Electric - compression
Energy source
Solar direct drive
Lining
Regular
Energy Consumption Cool Down (kWh/24h)
0.2500
Energy Consumption Continuous Power (kWh/24h)
0.2500
Product specifications - Additional Refrigerator
Refrigerator vaccine storage capacity(L)
25.500
Refrigerator's gross volume (Litres)
36.000
Autonomy (hrs:mn)
81:7
Refrigerant type
R600a
Solar radiation ref period (kWh/m2/day)
3.50
List of accessories
Vaccine storage top basket; Bottom grating; 30 day electronic temperature logger; Self-regulating temperature control; Electronic temperature reading; 2 x Keys; Instruction manual in 6 UN languages; Technical manual in 6 UN languages; Plywood packing/crate
List of spare parts, Reference & Price
Included in the UNICEF Supply Division spare parts kit:
1 No. Compressor (BD 35K) Complete R600a Incl. ECU - Part No. 8-036510223
1 No. Thermostat - Part No. 702090044
1 No. Fan Set (KD1208PTB3) 12 V DC Part No. 7090486
1 No. Thermometer, solar, Part No.7020382-03
Other parts are available as spares on request.
1 No. Compressor (BD 35K) Complete R600a Incl. ECU - Part No. 8-036510223
1 No. Thermostat - Part No. 702090044
1 No. Fan Set (KD1208PTB3) 12 V DC Part No. 7090486
1 No. Thermometer, solar, Part No.7020382-03
Other parts are available as spares on request.
Price and shipping
Shipping volume (m3)
0.63
Shipping weight (kg)
75.00
Incoterms
FCA
Price 1
1-99 units: 2,804 €
Price 2
100-199 units:2598 €
Year of base price
2020
Quality standard
Quality Standard
Other
Quality standard (Other)
ISO 9001:2015; ISO 14001:15
Specification Reference
Applicable PQS specification: E003/RF05.3
Applicable PQS VP(s): E003/RF05-VP.3
Applicable PQS VP(s): E003/RF05-VP.3
Verification
Verification Laboratory
Danish Technological Institute
Address
Gregersensvej DK-2630 Taastrup Danemark
Denmark
Denmark
Telephone
+45 72202472
Verification Report Reference
300-KLAB-15-174
Product Sites
Vestfrost Solutions
A/S Vestfrost Falkevej 12
Esbjerg Ø,
Syddanmark
DK-6705
Denmark
Document Details
Unit equipped with unique QR code that can be used with Vestfrost Solutions Unit tracker APP, containing various installation/service features.
As an option the appliance can be supplied with Vestfrost in-built RTMD; with following features:
1: 5” touch display 2: 3X internal temp. sensors 3: ambient temp. 4: compressor sensor 5: humidity sensor 6: lid opening alarm 7: GPS coordinates via Google maps 8: 1X USB 5V solar harvesting port. All data collected/logged is automatic via GPRS uploaded to Vestfrost RTMD performance data-portal, and/or can be accessed onsite from the touch screen menu.
As an option the appliance can be supplied with Vestfrost in-built RTMD; with following features:
1: 5” touch display 2: 3X internal temp. sensors 3: ambient temp. 4: compressor sensor 5: humidity sensor 6: lid opening alarm 7: GPS coordinates via Google maps 8: 1X USB 5V solar harvesting port. All data collected/logged is automatic via GPRS uploaded to Vestfrost RTMD performance data-portal, and/or can be accessed onsite from the touch screen menu.
Range of holdover time: 51 - 100 hours
Range vaccine storage capacity: 25L - 60L
