Product Details

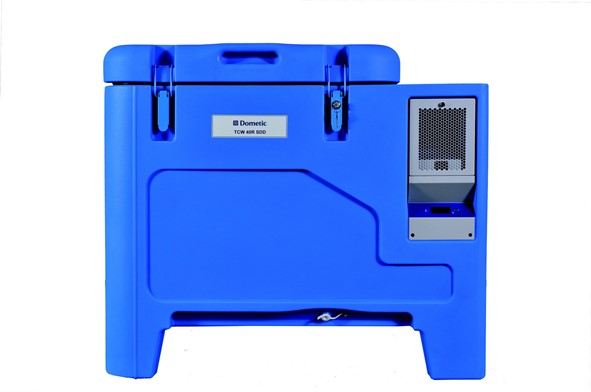

Product name
TCW 40R SDD
IMD-PQS Code
E003-068
Status
Prequalified
Date of acceptance
16 Mar 2016
Appliance type
E003
Product description
Solar Direct Drive refrigerator
Manufacturer
B Medical Systems Sarl
Manufacturer Reference
TCW 40R SDD
Country of Manufacture
Luxembourg
Address
17 Op der Hei L-9809 Hosingen Luxembourg
Luxembourg
Luxembourg
Telephone
+ 35 2 92 07 311
Email
Website address
Valid until
31 Dec 2025
Specifications
Product specifications - Main
Climate zone
Hot
Minimum rated ambient temperature (°C)
5.00
Freeze protection
Grade A
Hold over time (hours:mn)
93:24
External dimensions length (mm)
780.00
External dimensions width (mm)
1030.00
External dimensions height (mm)
900.00
Appliance tested at (°C)
43.00
Performance at" (°C)
43.00
Fuel and refrigeration cycle
Electric - compression
Energy source
Solar direct drive
Lining
Ice-lined
Energy Consumption Cool Down (kWh/24h)
0.6700
Energy Consumption Continuous Power (kWh/24h)
0.5700
Product specifications - Additional Refrigerator
Refrigerator vaccine storage capacity(L)
36.000
Refrigerator's gross volume (Litres)
46.600
Autonomy (hrs:mn)
81:54
Refrigerant type
R600a
Solar radiation ref period (kWh/m2/day)
3.50
List of accessories
1 basket; 2 keys; 1 brush; 1 pan for drain; documentation, lockable lid, 2 spacers, 1 compass
List of spare parts, Reference & Price
Included in the UNICEF Supply Division spare parts kit:
1 No. Compressor (BD35K Solar) - Part No. 296.9702.09
1 No. E-box (BD35K Solar) - Part No. 296.9705.32
1 No. Electronic thermostat/controller (3-SEN) - Part No. 296.9769.98
1 No. Fan PAPST (12V, 4.3W; 410mm) - Part No.292.9960.13
Other parts are available as spares on request.
1 No. Compressor (BD35K Solar) - Part No. 296.9702.09
1 No. E-box (BD35K Solar) - Part No. 296.9705.32
1 No. Electronic thermostat/controller (3-SEN) - Part No. 296.9769.98
1 No. Fan PAPST (12V, 4.3W; 410mm) - Part No.292.9960.13
Other parts are available as spares on request.
Price and shipping
Shipping volume (m3)
0.88
Shipping weight (kg)
129.00
Incoterms
EXW
Price 1
> 100 units: G1: 5576 €; G2: 5990 €
Year of base price
2025
Quality standard
Quality Standard
ISO 13485;Other
Quality standard (Other)
ISO 14001:2015; ISO:9001:2015
Specification Reference
Applicable PQS specification: E003/RF05.3
Applicable PQS VP(s): E003/RF05-VP.3
Applicable PQS VP(s): E003/RF05-VP.3
Verification
Verification Laboratory
CEMAFROID SAS
Address
5 Avenue des Pres CS 20029 F94 266 Fresnes Cedex France
France
France
Telephone
+33 1 49 84 84 84
Verification Report Reference
WHO-13-024 V2
Product Sites
B Medical Systems Sarl
17 Op der Hei L-9809 Hosingen Luxembourg
Luxembourg
Document Details
Includes warranty for 3 or 10 years.
For more information and further conditions of warranty, please contact B Medical Systems
Range of holdover time: 51 - 100 hours
Range vaccine storage capacity: 25L - 60L
