E003-066

SF - Immunization Devices
Download file
Product Details
Product name

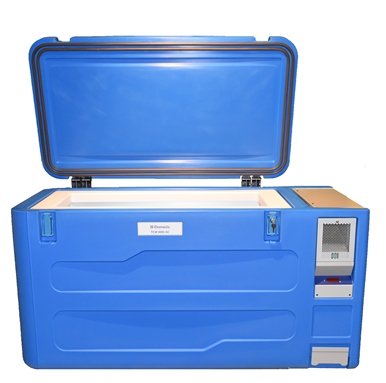

TCW 4000 AC
IMD-PQS Code
E003-066
Status
Prequalified
Date of acceptance
03 Aug 2016
Appliance type
E003
Product description
Icelined refrigerator
Manufacturer
B Medical Systems Sarl
Manufacturer Reference
TCW 4000 AC
Country of Manufacture
Luxembourg
Address
17 Op der Hei L-9809 Hosingen Luxembourg
Luxembourg
Telephone
+ 35 2 92 07 311
Website address
Valid until
31 Dec 2025
Specifications

Product specifications - Main

Climate zone
Hot
Minimum rated ambient temperature (°C)
5.00
Freeze protection
Grade A
Hold over time (hours:mn)
77:18
External dimensions length (mm)
780.00
External dimensions width (mm)
1625.00
External dimensions height (mm)
915.00
Appliance tested at (°C)
43.00
Performance at" (°C)
43.00
Fuel and refrigeration cycle
Electric - compression
Energy source
220-240V 50/60Hz
Lining
Ice-lined
Energy Consumption Intermittent Power (kWh/24h)
0.7000
Energy Consumption Cool Down (kWh/24h)
1.2400
Energy Consumption Continuous Power (kWh/24h)
0.8500

Product specifications - Additional Refrigerator

Refrigerator vaccine storage capacity(L)
240.000
Refrigerator's gross volume (Litres)
249.000
Refrigerant type
R600a
Solar radiation ref period (kWh/m2/day)
1.00
Comments
Optionally available: the B Medical Systems RTMD with worldwide communication, real time alarms messages for temperature and open door alerts via SMS / EMAIL, GPS position using Google Maps, access to the webserver performance monitoring; compliant to all requirements of the WHO PQS E006/TR03.2 except for the LCD display (however the refrigerator has a digital display). This RTMD is exclusively bundled to B Medical Systems refrigerators / freezers.
Includes warranty for 3 years. For more information and further conditions of warranty, please contact B Medical Systems. Optionally available in 115V/60Hz.

Delivered with a 30-day temperature recorder as standard

Range of holdover time: 51 - 100 hours
List of accessories
6 baskets; 2 keys; 1 brush; 2 spacers; documentation
List of spare parts, Reference & Price
Included in the UNICEF Supply Division spare parts kit:
1 No. Compressor (NLE9KTK 220-240V/50-60HZ) - Part No. 296.9701.63
1 No. Controller board - Part No.296.9769.93
1 No. Sensor NTC - Part No.296.9805.06
1 NO. FAN PAPST - Part No. 292.9960.16

Other parts are available as spares on request.

Price and shipping

Shipping volume (m3)
1.39
Shipping weight (kg)
183.00
Incoterms
EXW
Price 1
>100 units incl. a 30DTR 4314 €
Year of base price
2025

Quality standard

Quality Standard
ISO 13485;Other
Quality standard (Other)
ISO 14001:2015; ISO 9001:2015
Specification Reference
Applicable PQS specification: E003/RF03.2
Applicable PQS VP(s): E003/RF03-VP.2

Verification

Verification Laboratory
CEMAFROID SAS
Address
5 Avenue des Pres CS 20029 F94 266 Fresnes Cedex France
France
Telephone
+33 1 49 84 84 84
Verification Report Reference
WHO 15-034 corr 2
Product Sites
B Medical Systems Sarl
17 Op der Hei L-9809 Hosingen Luxembourg
Luxembourg
