SF - Immunization Devices
Download file
Product Details
Product name
VC88SDD
IMD-PQS Code
E003-059
Status
Prequalified
Date of acceptance
23 Sep 2015
Appliance type
E003
Product description

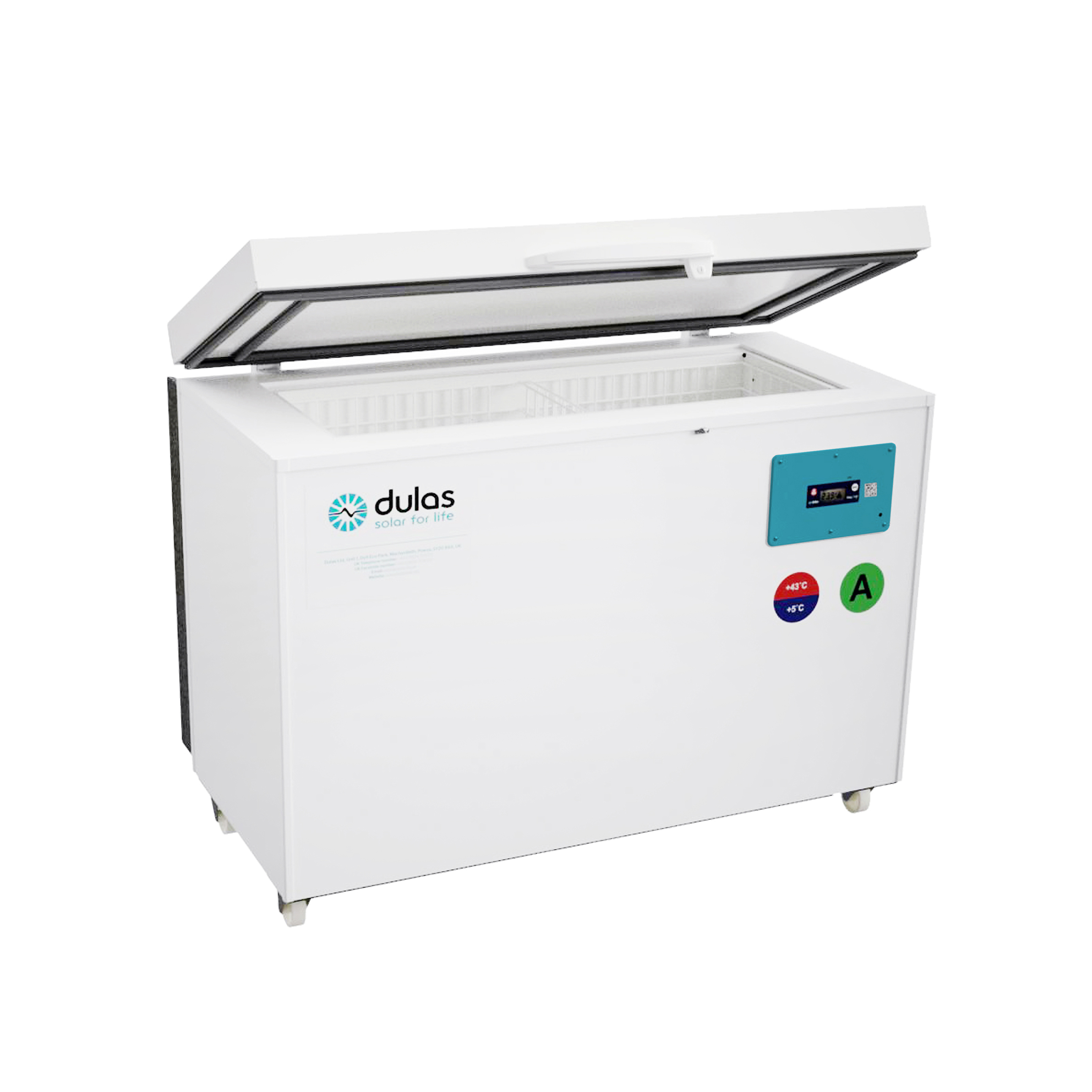

Solar Direct Drive vaccine refrigerator
Manufacturer
Dulas Ltd
Manufacturer Reference
VC88SDD
Country of Manufacture
United Kingdom
Address
Unit 6, Beeding Close, Southern Cross Trading Estate, PO22 9TS, Bognor Regis
Bognor Regis
West Sussex
United Kingdom of Great Britain and Northern Ireland
Bognor Regis
West Sussex
United Kingdom of Great Britain and Northern Ireland
Telephone
+44 (0)7833 297920
Website address
Valid until
31 Dec 2025
Specifications
Product specifications - Main
Climate zone
Hot
Minimum rated ambient temperature (°C)
5.00
Freeze protection
Grade A
Hold over time (hours:mn)
91:39
External dimensions length (mm)
750.00
External dimensions width (mm)
1280.00
External dimensions height (mm)
980.00
Appliance tested at (°C)
43.00
Performance at" (°C)
43.00
Fuel and refrigeration cycle
Electric - compression
Energy source
Solar direct drive
Lining
PCM
Energy Consumption Cool Down (kWh/24h)
0.5200
Energy Consumption Continuous Power (kWh/24h)
0.5100
Product specifications - Additional Refrigerator
Refrigerator vaccine storage capacity(L)
88.000
Refrigerator's gross volume (Litres)
205.000
Autonomy (hrs:mn)
78:09
Refrigerant type
R600a
Solar radiation ref period (kWh/m2/day)
3.50
Product specifications - Additional Freezer
Freezer type
N/A
List of accessories
Supplied with 4 x refrigerator baskets, 2 x keys for the lockable handle, 1 x set of printed manuals (‘user’s manual’, ‘installation and technician’s manual’) available in a selection of languages.
Price includes Berlinger Fridge-tag 2 E 30-day electronic temperature logger (E006/040) and complete solar system including all cables and connections necessary for installation in the field.
Price includes Berlinger Fridge-tag 2 E 30-day electronic temperature logger (E006/040) and complete solar system including all cables and connections necessary for installation in the field.
List of spare parts, Reference & Price
IIncluded in the UNICEF Supply Division spare parts kit:
1 x Dulas SDD controller (for single compressor) – Part No. 5522
1 x Lightning protection board – Part No. 5542
1 x Temperature probe (set of 2) – Part No’s. SN4B15P1 & SN4B20P1
1 x Compressor controller – Part No. 101N0420
1 x MCB fridge – Part No. 693-CBTWF060C0
1 x Compressor BD35K – Part No. 101Z0211
Prices and other parts are available as spares on request.
1 x Dulas SDD controller (for single compressor) – Part No. 5522
1 x Lightning protection board – Part No. 5542
1 x Temperature probe (set of 2) – Part No’s. SN4B15P1 & SN4B20P1
1 x Compressor controller – Part No. 101N0420
1 x MCB fridge – Part No. 693-CBTWF060C0
1 x Compressor BD35K – Part No. 101Z0211
Prices and other parts are available as spares on request.
Price and shipping
Shipping volume (m3)
1.33
Shipping weight (kg)
194.00
Incoterms
EXW
Price 1
€4,435 EUR per unit including solar system
Year of base price
2025
Quality standard
Quality Standard
Other
Quality standard (Other)
ISO 9001:2015; ISO 14000:2015
Specification Reference
Applicable PQS specification: E003/RF05.2
Applicable PQS VP(s): E003/RF05-VP.2
Applicable PQS VP(s): E003/RF05-VP.2
Verification
Verification Laboratory
Danish Technological Institute
Address
Gregersensvej DK-2630 Taastrup Danemark
Denmark
Denmark
Telephone
+45 72202472
Verification Report Reference
300-KLAB-13-194-2
Product Sites
Dulas Ltd
Unit 6, Beeding Close, Southern Cross Trading Estate,
Bognor Regis,
West Sussex
PO22 9TS
United Kingdom of Great Britain and Northern Ireland
Document Details
Price includes plug and play solar array and mounting system, as well as solar cables, connectors, fixings and earthing kit (for increased protection against lightning strike). Selection of specialist tools supplied with the system to facilitate installation.
Beyond RTMD integrated as standard with display, audible and visual alarm indicators, 120-day local data storage and scannable QR code for instant 30-day PDF reports.
Optional remote temperature monitoring subscription service available via cellular network which provides real-time monitoring and reporting of cold chain assets in one easy-to-use cloud-based portal.
Shipping weights and volumes are shown for refrigerator only. Details of solar system available upon request.
