E003-042

SF - Immunization Devices
Download file
E003-042.pdf
E003-042.json
Product Details
Product name
TCW 40 SDD
IMD-PQS Code
E003-042
Status
Prequalified
Date of acceptance
27 Mar 2014
Appliance type
E003
Product description

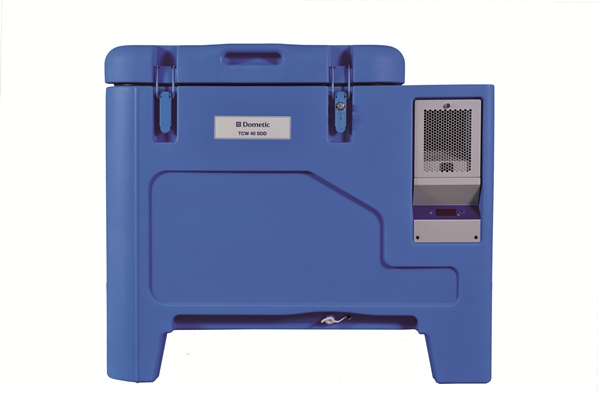

Solar direct drive refrigerator/freezer TCW 40 SDD
Manufacturer
B Medical Systems Sarl
Manufacturer Reference
TCW 40 SDD
Country of Manufacture
Luxembourg
Address
17 Op der Hei L-9809 Hosingen Luxembourg
Luxembourg
Telephone
+ 35 2 92 07 311
Email
info@bmedicalsystems.com
Website address
www.bmedicalsystems.com
Valid until
31 Dec 2025
Specifications

Product specifications - Main

Climate zone
Hot
Minimum rated ambient temperature (°C)
5.00
Freeze protection
Grade A
Hold over time (hours:mn)
93:24
External dimensions length (mm)
1030.00
External dimensions width (mm)
780.00
External dimensions height (mm)
900.00
Appliance tested at (°C)
43.00
Performance at" (°C)
43.00
Fuel and refrigeration cycle
Electric - compression
Energy source
Solar direct drive
Lining
Ice-lined
Energy Consumption During Freezing (kWh/24h)
0.6900
Energy Consumption Cool Down (kWh/24h)
0.6700
Energy Consumption Continuous Power (kWh/24h)
0.5700

Product specifications - Additional Refrigerator

Refrigerator vaccine storage capacity(L)
36.000
Refrigerator's gross volume (Litres)
46.600
Autonomy (hrs:mn)
81:54
Refrigerant type
R600a
Solar radiation ref period (kWh/m2/day)
3.50

Product specifications - Additional Freezer

Freezer type
Low energy compression
Freezer net volume
<50L
Freezer's gross volume (Litres)
4.80
Waterpack freezing capacity (Kg/24 hrs)
1.89
Waterpack storage capacity (Litres)
3.60
Comments
Prices include the solar generator system : G1=roof fixes; G2=roof adjustable. Includes for the duration of the warranty period contractually agreed: the B Medical Systems RTMD with worldwide communication, real time alarms messages for temperature and open door alerts via SMS / EMAIL, GPS position using Google Maps, access to the webserver performance monitoring; compliant to WHO PQS E006/TR03.2 with one deviation as this RTMD has no integrated display (however the refrigerator has a digital display). This RTMD is exclusively bundled to B Medical Systems refrigerators / freezers. Includes warranty for 3 or 10 years as the case may be. For more information and further conditions of warranty, please contact B Medical Systems

Freezing capacity range: < 5 kg/24h
Range of holdover time: 51 - 100 hours
Range vaccine storage capacity: 25L - 60L
Range waterpack storage capacity: < 20
List of accessories
1 basket; 8 waterpacks 0.6 L; 8 waterpack holders; 2 keys; 1 brush; 1 pan for drain; documentation, 1 compass, lockable lid, 2 spacers
List of spare parts, Reference & Price
Included in the UNICEF Supply Division spare parts kit:
1 No. Compressor (BD35K Solar) - Part No. 296.9702.09
1 No. E-BOX BD35K SOLAR - Part No. 296.9705.32
1 No. COLD CHAIN CONTROLLER 3-SEN - Part No. 296.9769.98
1 No. FAN PAPST #4312NNU 12V 4.3W 410MM - Part No. 292.9960.13

Other parts are available as spares on request.

Price and shipping

Shipping volume (m3)
0.88
Shipping weight (kg)
126.00
Incoterms
EXW
Price 1
> 100 units: G1: 5930€ ; G2: 6529€
Year of base price
2025

Quality standard

Quality Standard
ISO 13485;Other
Quality standard (Other)
ISO 9001:2015; ISO 14001:2015
Specification Reference
Applicable PQS specification: E003/RF05.3
Applicable PQS VP(s): E003/RF05-VP.3

Verification

Verification Laboratory
CEMAFROID SAS
Address
5 Avenue des Pres CS 20029 F94 266 Fresnes Cedex France
France
Telephone
+33 1 49 84 84 84
Email
gerald.cavalier@cemafroid.fr
Verification Report Reference
WHO 13-024 V2
Product Sites
B Medical Systems Sarl
17 Op der Hei L-9809 Hosingen Luxembourg
Luxembourg
